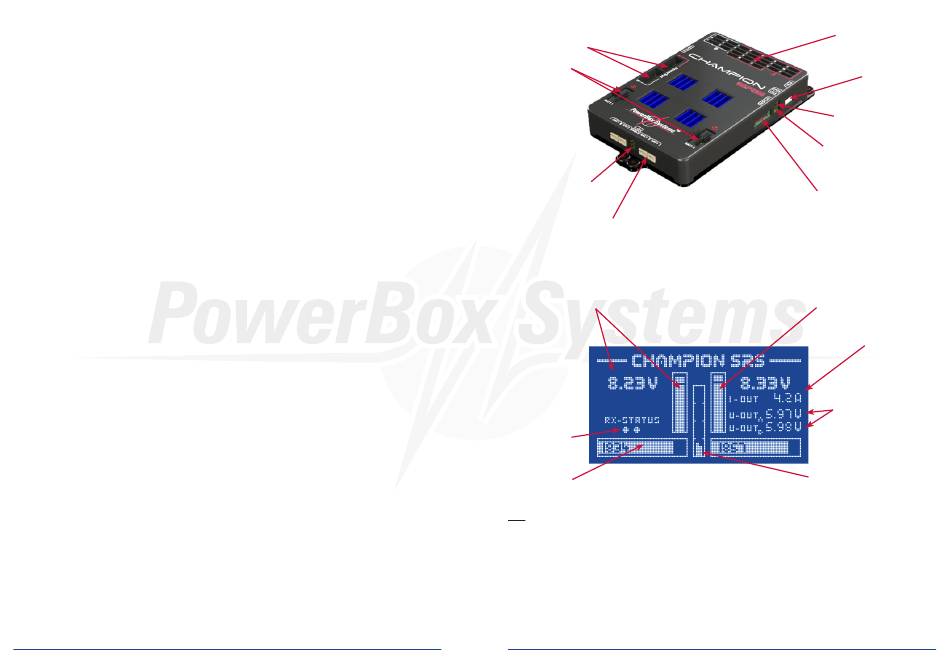

1. LAYOUT, CONNECTIONS

PowerBUS outputs
Battery sockets
RX1 and RX2 inputs
for Futaba, HoTT, M-Link, Jeti
Sat1 - Sat4 inputs for Spektrum satellites

2. MAIN SCREEN, DATA LOGGER

Battery voltage display
Receiver status
Battery capacity
Key:
- Battery voltage indicator: Shows the exact battery voltage for both batteries, digitally and as bar graph
- Receiver status: This item shows which receivers are delivering a signal. Jeti and HoTT are exceptions: this
item shows which receiver is currently active.
- Battery capacity: Shows the residual capacity of the batteries in digital and bar graph form.
- Minimum value indicator: The row of white pixels in the bar display represent the lowest voltage which oc-
curred during the flight. If the minimum value is significantly lower than the actual voltage, this may indicate
unsuitable or defective batteries.
- Total current output: Displays your model's actual current drain.
- Output voltage: Voltage display for both power circuits A and B.
- Current output, Batt. 1 and Batt. 2: Current output of the two batteries in bar graph form.
www.powerbox-systems.com
servo sockets
Spektrum TM1000
socket
USB Interface
adapter socket
Telemetry socket
LCD screen socket
Min. value indicator
Total current output,
digital
Output voltage
Range A and B
Current output, Batt 1
and Batt 2, bar graph
