Original instructions

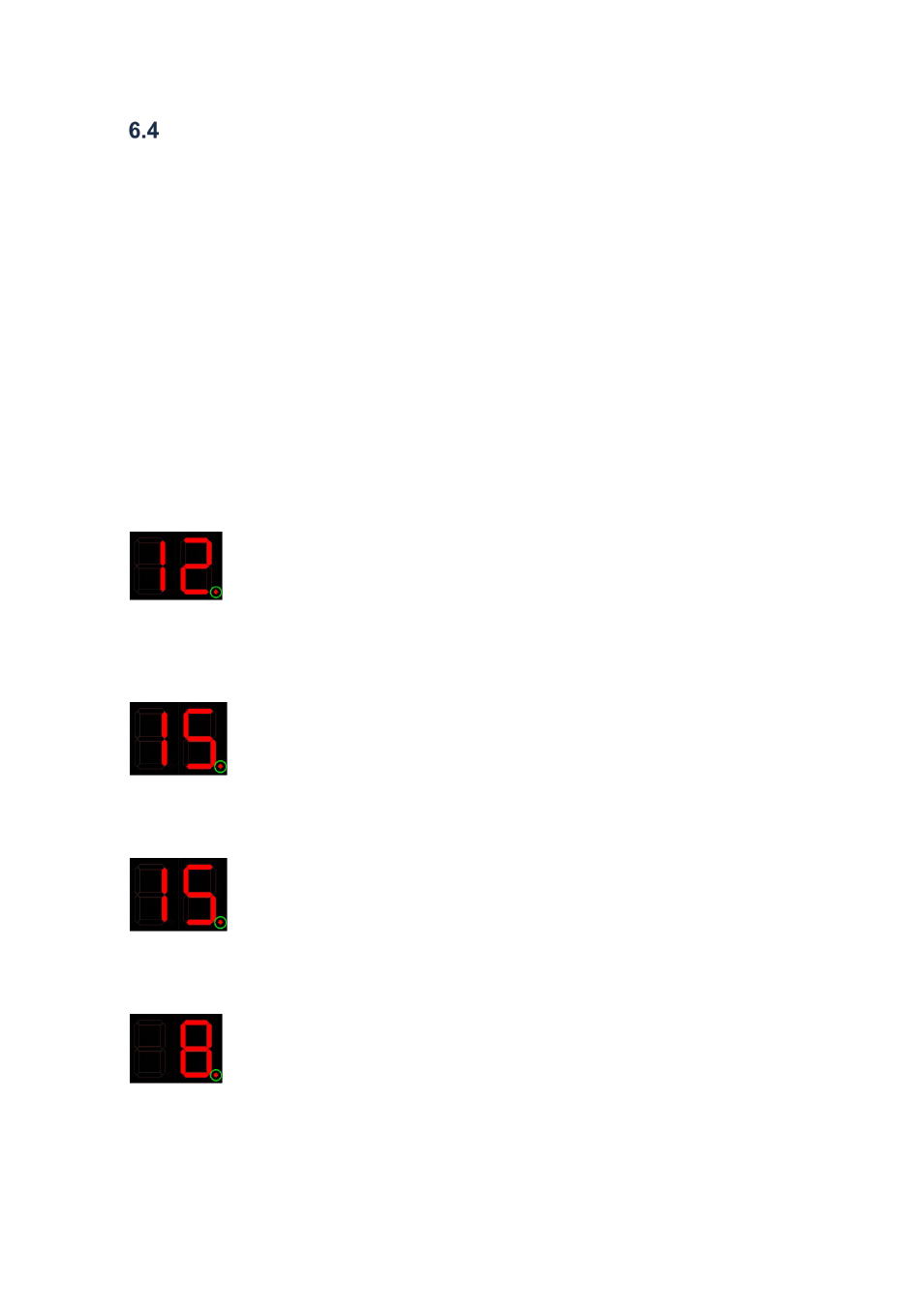

Parameter reading
Shut-Off Solenoid Valve – E.S. and Cylinder Solenoid Valve– E.C.:
-
With CV30 inversa set:
E.S. = N.C. (atm channel)
o
E.C. = N.O. (vac channel)
o
-
With CV30 set:
o
E.S. = N.C.
o
E.C. = N.C.
-
With CV20 set:
o
E.S. = N.O.
o
E.C. = N.O.
Start-up stage – IP:
-
dt
upon start-up the panel retracts the unit and goes into detachment mode (stand-by)
-
CL
upon start-up the panel releases the unit and goes into washing mode
-
LP
upon start-up the panel starts from the last active stage (if it is switched off during the milking
cycle it will restart in detachment mode)
Initial delay – Id:
-
10 second steps
-
The parameter values must be multiplied by 10 (the dot lit-up indicates the x10 multiplication)
>>
Pulsation frequency in milking mode – Fr:
-
LP indicates that the panel is not controlling pulsation and that it is only powering the pulsator
-
The dot lit-up indicates that the value must be added to 100
>>
Pulsation frequency in stimulation mode – SF:
-
The dot lit-up indicates that the value must be multiplied by 10
>>
Neutral time – nt :
-
The dot lit-up indicates that the value must be multiplied by 10
>>
Stimulation time – tS:
-
FS
forced stimulation
-
AS
automatic stimulation
-
Of
no stimulation
This manual is the property of InterPuls S.p.A. - any copying, even partial, is strictly prohibited.
120 seconds
115ppm
150ppm
80 seconds
25
5630032_2024.06_EN
