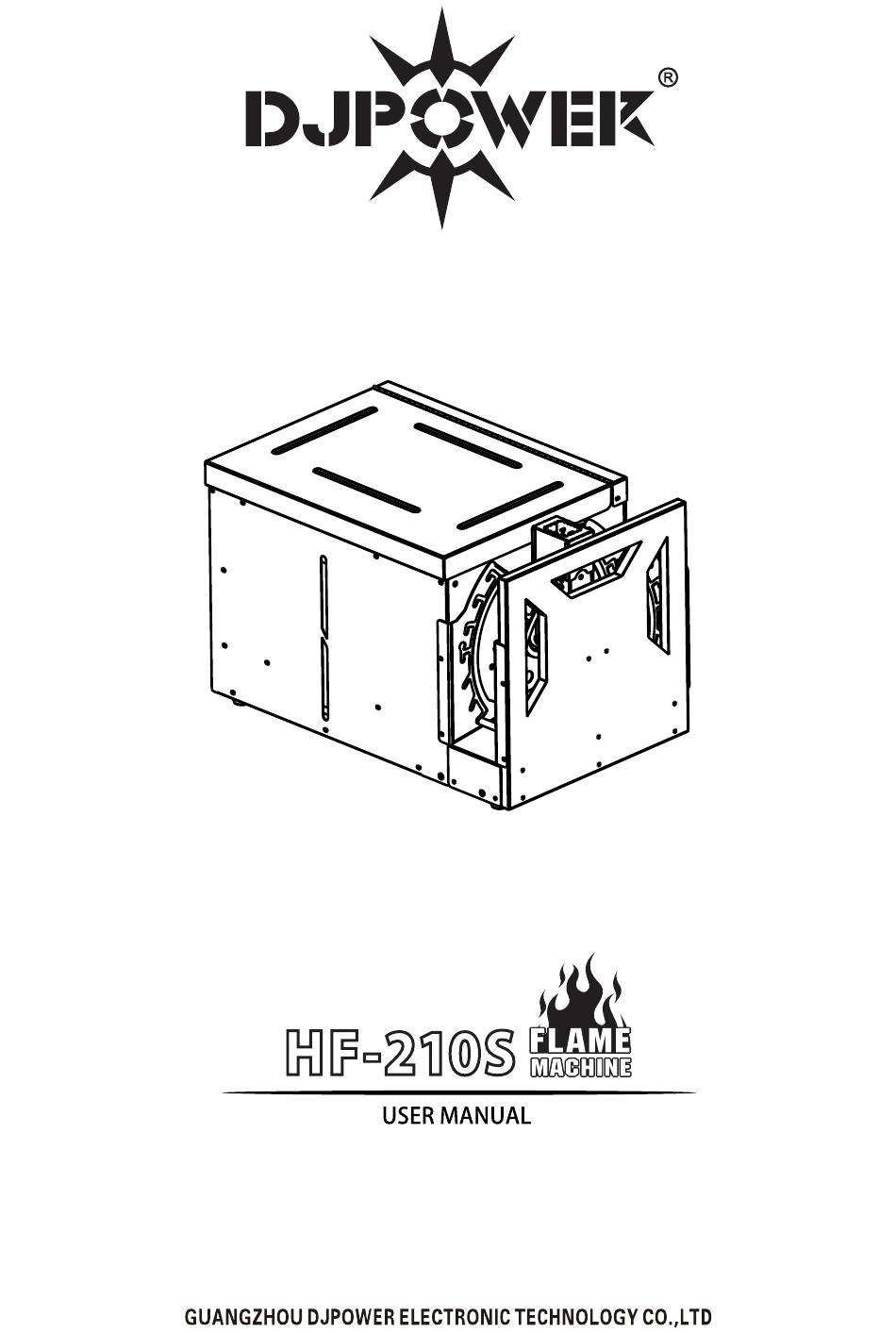

djpower HF-210S User Manual

Flame machine
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the HF-210S and is the answer not in the manual?

Questions and answers

Related Manuals for djpower HF-210S

Summary of Contents for djpower HF-210S

  • Page 2: Before You Begin

    Strictly follow the instruction in the manual when operate flame machine HF-210S. If you have any doubts, please contact DJPOWER. Use the HF-210S only under the rules and instructions from this manual. Contact DJPOWER in case of doubts about the usage.

  • Page 3: Safety Notes

    After the machine is turned on, it is strictly forbidden to stay in the dangerous area of the machine. Safety distances for HF-210S: At least 15m in all projection directions, at least 5m to the other sides of the device.
  • Page 4 Make sure there are no flammable materials around the machine before operation, and keep a safe distance between the person and the equipment. The Safe distance for the HF-210S is: at least 15m in all projection directions, at least 5m to the other sides of the device.

  • Page 5: Product Overview

    • Rainproof structure design, IPX3 waterproof grade; • The dual valve and dual pump design , safer and more stable; • The maximum rotation angle is optional: ground mode: 180° (±90°) or suspended (5 meters and above) mode: 210° (±105°); •...

  • Page 6: Technical Specifications

    2.4. Product Dimensions 2.5. Flight Case Dimensions 3. TECHNICAL SPECIFICATIONS Voltage AC 110-120V,50/60 Hz AC 220-240 V, 50/60 Hz Breaker 5 A, 250 V Current limiting insurance type Breaker Power 600 W Tank Capacity 10 L Horizontal placement √ Tilt ×...
  • Page 7 4.2. AC Plug The Flame Machine HF-210S comes with a power input cord terminated with a Lockable Powerkon connector on one end and an EU plug on the other end (EU & China market). If the power input cord that...

  • Page 8: Preparing For Operation

    Before operation, please ensure that there are no flammable materials around the machine, and people and equipment should maintain a certain safe distance. Safety distances for HF-210S: At least 15m in all projection directions, at least 5m to the other sides of the device.
  • Page 9 5.3.2. Menu Map Display Description Parameter Range HF-210S REV1.0 Starting AC-230V 50Hz Page Initializing... When the external trigger function is ON, P:0 V：12 showing this page When the external trigger function is OFF, Wait To Connect Standby to connect to DMX control, showing this P:0 V：12...
  • Page 10 Safety Blocker The HF-210S is designed with an Safety blocker which can be used to limit the firing angle within the safe range to prevent the machine from injecting flame in the wrong direction in case the unit is mishandled or out of control.
  • Page 11 The maximum angle of the blocker: position ① : one side maximum angle 15 ° ; position ② : one side maximum angle 30°; position ③: one side maximum angle 45°; position ④ : one side maximum angle 60°; position ⑤ : one side maximum angle 75°;position ⑥ : one side maximum angle 90°; gear position ⑦: one side maximum angle 105°.
  • Page 12 The unit has 6 channels. Detailed information please refer to DMX Set DMX address channels. Pressurize Under DMX control: Channel 6= 50~200. Reconfirm safety lock located at TEST MODE before test. In this Check device status, the nozzle will rotate, and igniter will be activated, but there status in TEST is no flame effect because no fuel output.
  • Page 13 5.4.6. Control of Flamer HF-210S has 80 preset sequences, operator can use related channel DMX value or sequence No. to access certain sequence. Below is the sequence list and single ignitions. Single Ignition Sequence List:...
  • Page 14 placement model 90° Hang model - 105° Horizontal Single Ignition SHORT flame Static 0.56s 48-50 placement model -90° -90° Single Ignition SHORT flame Static 0.56s 51-53 -75° Single Ignition SHORT flame Static 0.56s 54-56 -60° Single Ignition SHORT flame Static 0.56s 57-59 -45°...
  • Page 15 Horizontal placement model Step 2-14 Hang model Step 15- LONG flame R -> L 8.90 s 126-128 Horizontal placement model Step 14-2 Step 5>8>11 LONG flame L -> R 2.01 s 129-131 Step 11>8>5 LONG flame R -> L 2.01 s 132-134 Step 6>10 LONG flame...
  • Page 16 15-->8 Horizontal placement model 14-8 Wave 8-->11 SHORT wave sequence M -> R 1.12 s 177-179 Wave 8-->5 SHORT wave sequence M -> L 1.12 s 180-182 Wave 5-->8 SHORT wave sequence L -> M 1.24 s 183-185 Wave 11>--8 SHORT wave sequence R ->...

  • Page 17: Dmx Control

    LONG flame Step Step 5>11 L -> R 3.81s 249-251 sequence LONG flame Step Step 11>5 R -> L 3.81s 252-254 sequence LONG flame Step Step 7>9 L -> R 1.27s sequence 5.4.7. DMX CONTROL Channel Function Value Setting Hang model : -105° to 105° （CH1）...
  • Page 18 15° 30° 45° 60° 75° 90° Hang model 105° Horizontal placement model 90° （CH2）：Speed CH2: Speed Setup DMX Value 1-254 Speed Max Speed Incremental of Speed Max Speed The second channel defines the rotating speed. It work together with Channel 1 for manual firing （CH3）：...
  • Page 19 When the safety lock located at TEST MODE, set DMX value between 50-200 to test the system. For safety, the device will not Pressurize. When the safety lock located at USER MODE, the device Pressurize activated by set DMX value between 50-200. The device can only make ignitions in Firing mode. CH6: Mode setup DMX Value 0-49...

  • Page 20: Maintenance

    MAINTENANCE 1. To maintain the system in good performance and running status, it is recommended to running the device at least once per month. 2. In order to lubricate the pipeline and pump it is highly necessary to add 10-20ml castor oil per 10L canister.
