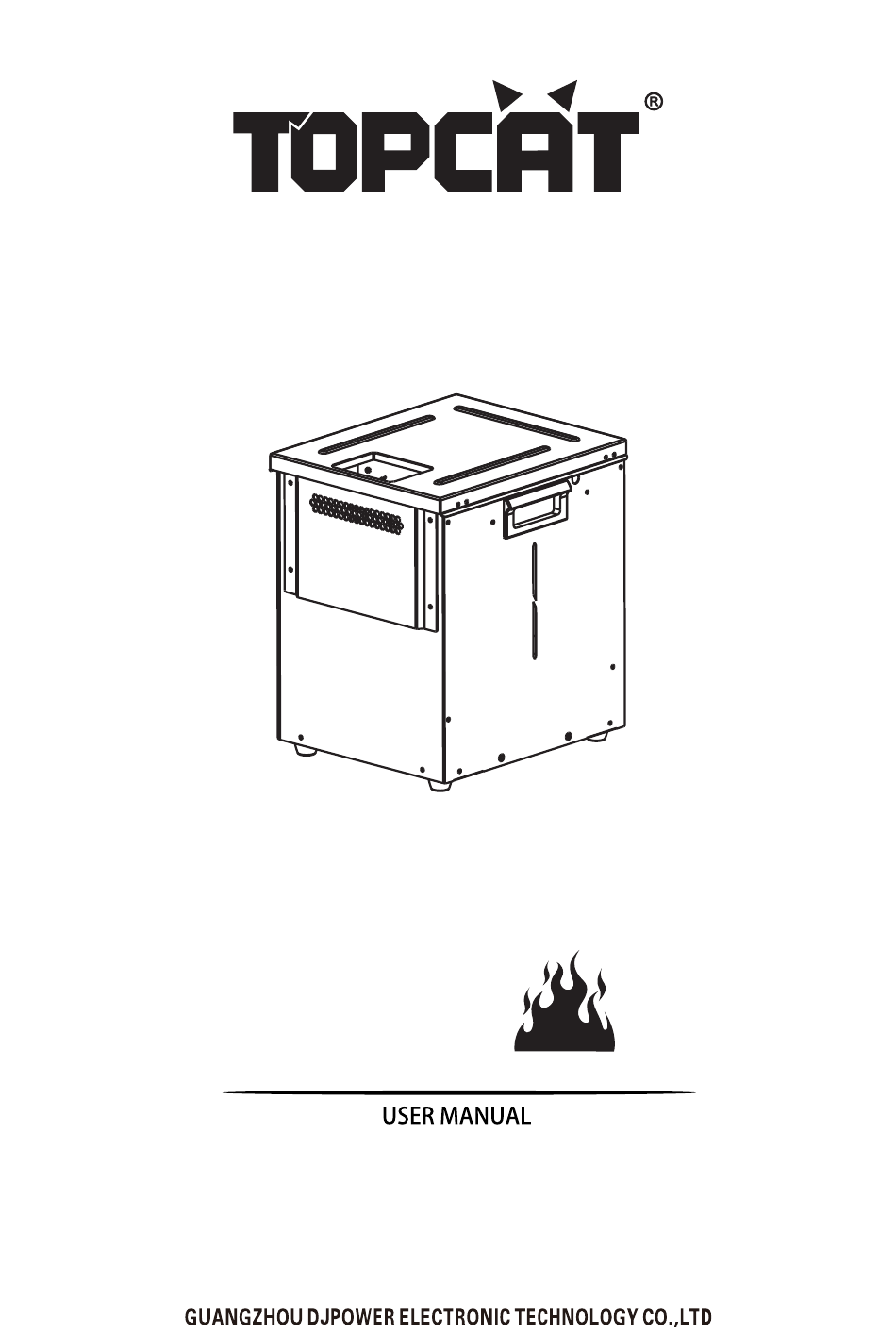

  • Page 1 HF-90 Flame Flame Machine Machine...

  • Page 3: Before You Begin

    HF-90. If you have any doubts, please contact DJPOWER. Use the HF-90 only under the rules and instructions from this manual. Contact DJPOWER in case of doubts about the usage. We assume that you, your employees and others who use or come in contact with the machine are familiar with how the machine should be handled.

  • Page 4: Mounting And Rigging

    • After the machine is turned on, it is strictly forbidden to stay in the dangerous area of the machine. Safety distances for HF-90： At least 5m in all projection directions. • Please prepare dry powder and fire extinguishing equipment at the machine use place. Always have a dry powder fire extinguisher, CO2 fire extinguisher, and an extinguishing blanket in case of needed.

  • Page 5: Product Overview

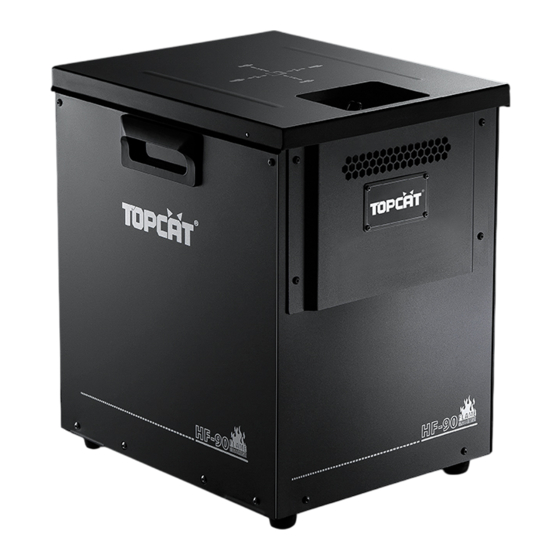

    Description HF-90 is DJPOWER's latest vertical flame machine, and flame effect reaches up to 8-10m. It is equipped with built-in fuel tank and pumping system which makes it easy to operate and powerful. HF-90 has a rainproof function. It is suitable for all kinds of shows to create excellent atmosphere.

  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS Voltage AC 110-120V,50/60 Hz AC 220-240 V, 50/60 Hz Breaker 5 A, 250 V Power 300 W Tank Capacity Horizontal placement √ Tilt × Side placement × Up-side-Down × Hang × Body Control LCD control panel Wireless Control ×...

  • Page 7: Preparing For Operation

    OPERATION 5.1. Preparing for Operation Before operating the machine, please follow the below steps to prepare: • Before operation, please ensure that there are no flammable materials around the machine, and people and equipment should maintain a certain safe distance. Safety distances for HF-210: At least 15m in all projection directions, at least 5m to the other sides of the device. •...

  • Page 8: Dmx Mode

    DMX address： Setting DMX address 1~512 DMX MODE： Switch between 2-channel or 6-channel mode 2CH/6CH Menu Page Setting the tilt protection Tip switch ON/OFF (In case it is ON, if the machine tilts over 45° , it stops the unit from firing) Language Language setting Chinese...
  • Page 9 Note: 1. Safety distances for Vertical flame machine are indicated in above picture. At least 5m in all projection directions, at least 5m to the other sides of the device. In order to indicate correct direction, please place the top panel correctly. 2.

  • Page 10: Dmx Control

    5.4.3. DMX CONTROL 5.4.3.1. 6-channel mode Channel Function Value Setting （CH1） （CH2） 0~253 Ignition OFF （CH3） Ignition Start the ignition. When the DMX value on this channel is higher than 253, the flame 254~255 machine will ignite. Permanent fire In steps of 10ms, to 2540ms （CH4）...
