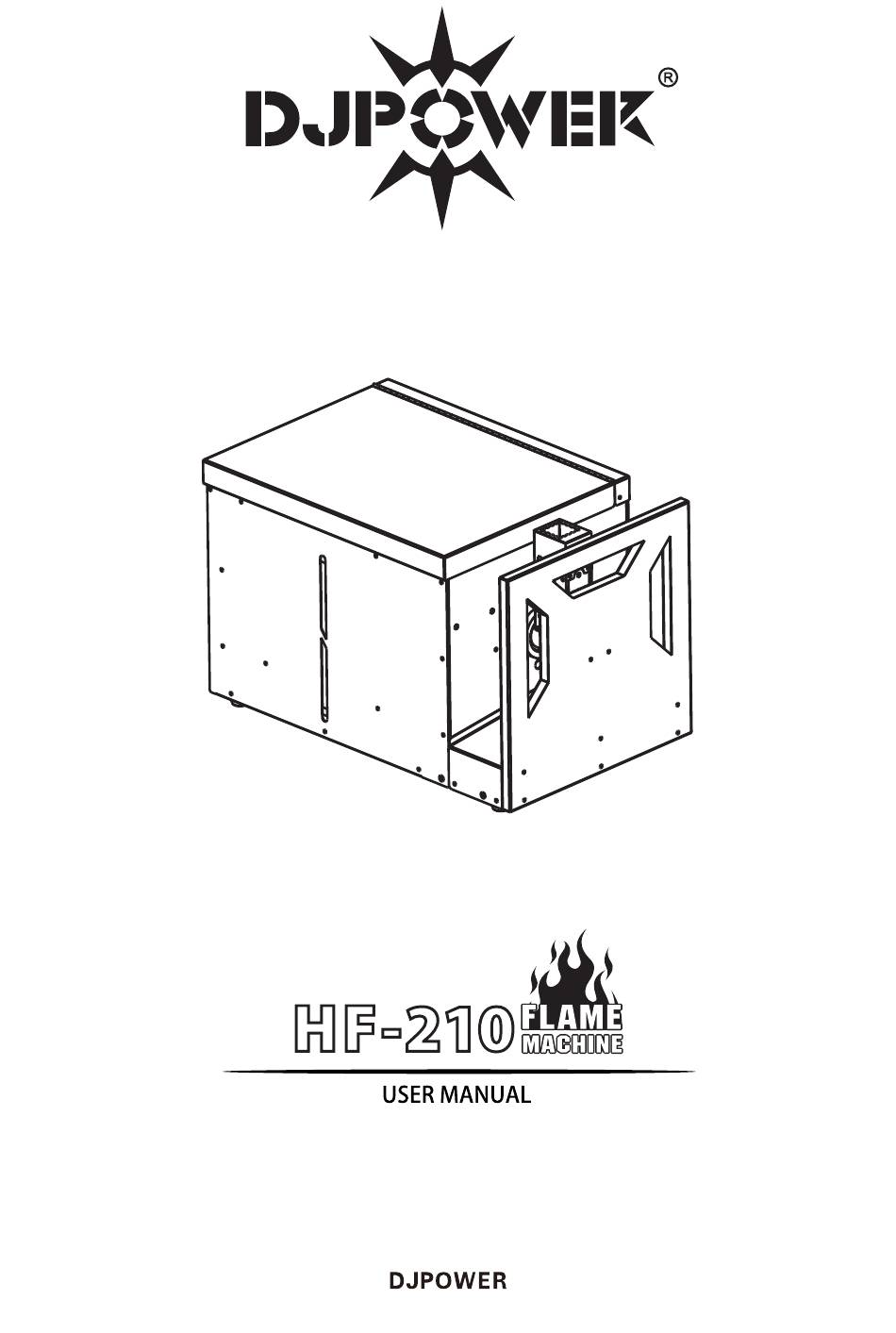

djpower FLAME MACHINE HF-210 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLAME MACHINE HF-210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for djpower FLAME MACHINE HF-210

Summary of Contents for djpower FLAME MACHINE HF-210

  • Page 2: Before You Begin

    HF-210. If you have any doubts, please contact DJPOWER. Use the HF-210 only under the rules and instructions from this manual. Contact DJPOWER in case of doubts about the usage. We assume that you, your employees and others who use or come in contact with the machine are familiar with how the machine should be handled.

  • Page 3: Safety Notes

    • Notes for use of Battery power supply: Wave flame machine HF-210 with stable internal circuit design, please support the unit with battery voltage higher than 12V. The driving speed of motor won’t change because of the decrease of battery power supply. Battery options: 12V lead-acid battery (above 30AH, with more than 24h standby).

  • Page 4: Product Overview

    Description HF-210 is DJPOWER's latest wave flame machine. With a maximum rotation angle of 210° and flame effect reaches up to 8m. The double- valve and double-pump design is safe and reliable, and has a rainproof function. It is preset with 85 sequences of flame effects, for which can be controlled by DMX to get fire-breathing effects, such as multi-angles burst, left and right burst, swing flame etc.

  • Page 5: Technical Specifications

    2.5. Flight Case Dimensions TECHNICAL SPECIFICATIONS Voltage AC 110-120V,50/60 Hz AC 220-240 V, 50/60 Hz Breaker 5 A, 250 V Current limiting Breaker insurance type Power 300 W Tank Capacity 10 L Horizontal placement √ Tilt × Side placement × Up-side-Down ×...

  • Page 6: Resetting The Breaker

    AC Plug The Flame Machine HF-210 comes with a power input cord terminated with a Lockable Powerkon connector on one end and an EU plug on the other end (EU & China market). If the power input cord that came with your product has no plug, or if you need the change the plug,...
  • Page 7 5.2. On-device Control Panel To access the control panel functions, use the four buttons located underneath the LCD display. Button Function <MENU> Switch menu pages to select a function ▲ Increases the numeric value of current function ▼ Decreases the numeric value of current function <ENTER>...
  • Page 8 Setting the tilt protection Tip switch ON/OFF (In case it is ON, if the machine tilts over 45° , it stops the unit from firing) WindowLight Setting LED light which illuminates the fluid level ON/OFF indicator Full Angle ， Left 105 ，...
  • Page 9 Note: 1. Safety distances for Wave flame machine are indicated in above picture. At least 15m in all projection directions, at least 5m to the other sides of the device. In order to indicate correct direction, please place the top panel correctly. 2.
  • Page 10 Pressure Relief Under DMX control: Channel 6= 0~49 or 201~255. Switch safety Before switching to USER MODE, Please strictly follow the safety distance requirement, make sure no lock to USER human beings, no animal or no flammable objects are within the danger area. MODE Pressurize Under DMX control: Channel 6= 50~200.
  • Page 11 5.4.5. Control of Flamer HF-210 has 80 preset sequences, operator can use related channel DMX value or sequence No. to access certain sequence. Below is the sequence list and single ignitions. Single Ignition Sequence List: Nozzle Firing Duration CH5 DMX Ignition angle Description Movement...
  • Page 12 Step 6>10 LONG flame L -> R 1.35 s 135-137 Step 10>6 LONG flame R -> L 1.35 s 138-140 Step 4>6>8>10>12 LONG flame L -> R 3.01 s 141-143 Step 12>10>8>6>4 LONG flame R -> L 3.01 s 144-146 Step 8>6>10>4>12 LONG flame M>L>R>L...
  • Page 13 243-245 Step 4>12 LONG flame Step sequence L -> R 5.08s 246-248 Step 12>4 LONG flame Step sequence R -> L 5.08s 249-251 Step 5>11 LONG flame Step sequence L -> R 3.81s 252-254 Step 11>5 LONG flame Step sequence R ->...
  • Page 14 0° 15° 30° 45° 60° 75° 90° 105° （CH2）：Speed CH2: Speed Setup DMX Value 1-254 Speed Max Speed Incremental of Speed Max Speed The second channel defines the rotating speed. It work together with Channel 1 for manual firing （CH3）： Ignition CH3: Ignition DMX Value 0-253...

  • Page 15: Maintenance

    CH6: Mode setup DMX Value 0-49 50-200 201-255 Mode Pressure Relief Mode Firing Mode Pressure Relief Mode 5.4.6.2. DMX console control 1. Set nozzle straight up (CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 0, CH4 Opening time = 0, CH5 Program sequence = 0, CH6 Firing mode = 50~200) 2.
