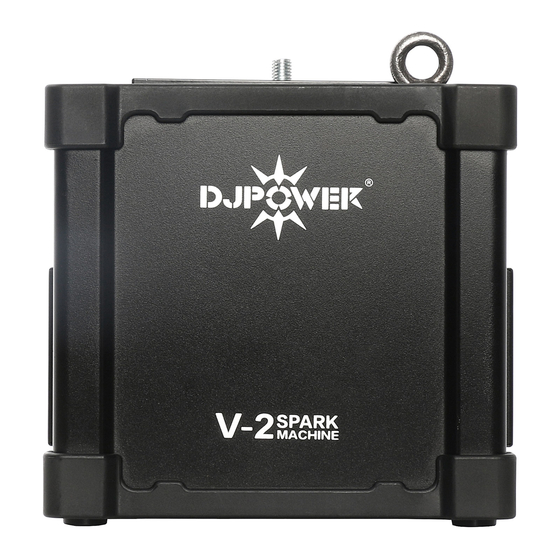

djpower V-2 User Manual

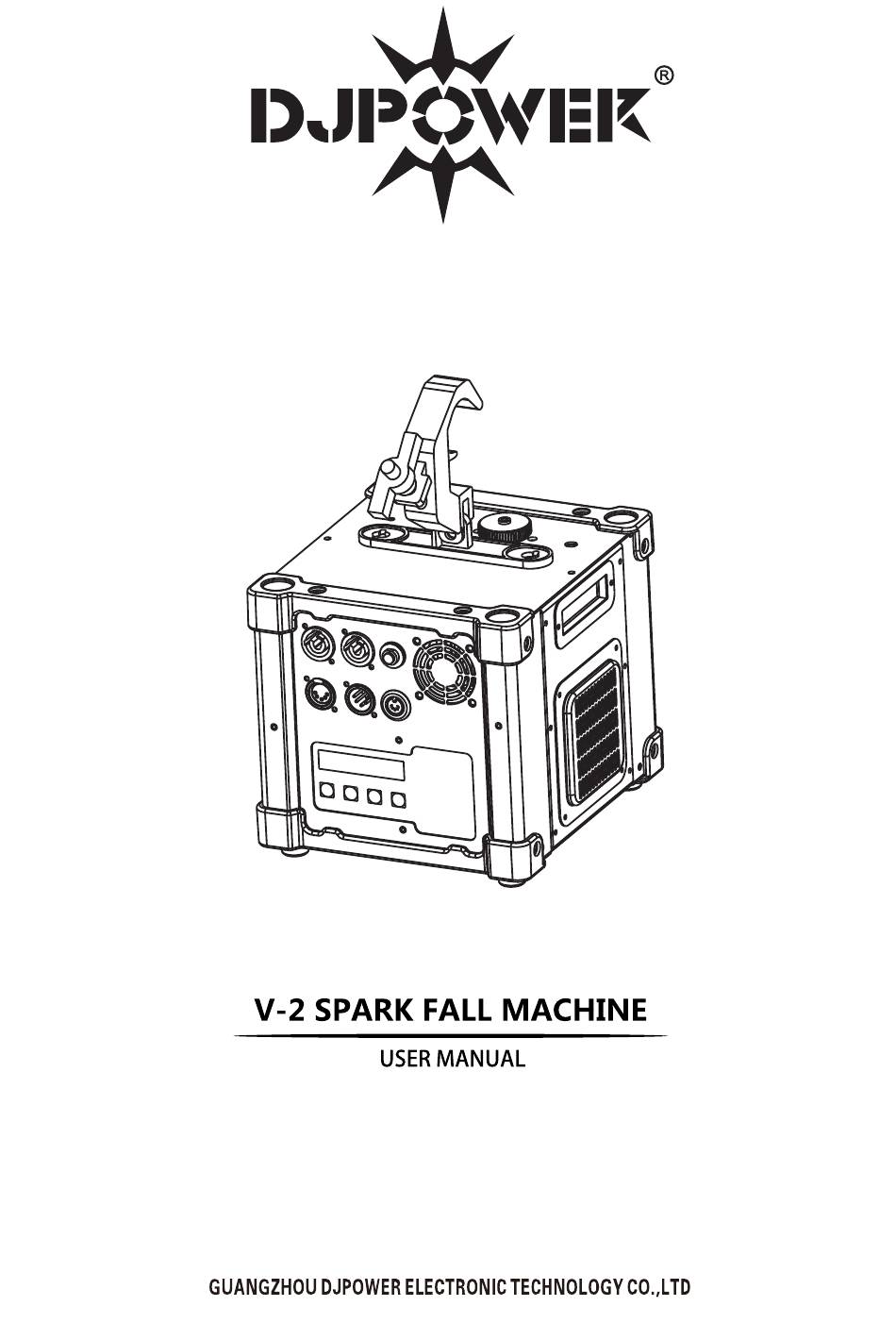

Spark fall machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for djpower V-2

Summary of Contents for djpower V-2

  • Page 2: Before You Begin

    The information and specifications contained in this User Manual are subject to change without notice. DJPOWER assumes no responsibility or liability for any errors or omissions and reserves the right to revise or to create this manual at any time.Copyright © 2022 DJPOWER.All rights reserved.

  • Page 3: Personal Safety

    Safety Notes Please read the following Safety Notes carefully before working with the product. The notes include important safety information about installation, usage, and maintenance. 1.5.1 Personal Safety • Always connect the product to a grounded circuit to avoid the risk of electrocution. •...
  • Page 4 • In the event of a serious operating problem, stop using the product immediately. Use only DJPOWER Spark Seed PRO-K. • Keep this User Manual for future use. If you sell the product, be sure that the purchaser receives this document.

  • Page 5: Product Overview

    • Easy operation and user friendly. Product Overview - 4 -...

  • Page 6: Product Dimensions

    Product Dimensions 3 TECHNICAL SPECIFICATIONS AC Power 220-240 V, 50/60 Hz Input Voltage & Rate Current Limiter Type FUSE Current Limiter Specifications 5 A, 250 V Nominal Total Power Consumption 600 W Typical Current 2.6 A Power Input Connector Lockable PowerCon Power Output Connector (Daisy Chained) Lockable PowerCon <3 min...
  • Page 7 AC Plug The Spark Machine V-2 comes with a power input cord terminated with a Lockable Powercon connector on one end and an EU plug on the other end (EU & China market). If the power input cord that came with your...

  • Page 8: Operation

    Plug the product’s power cord into the power outlet and continue using as recommended. DMX Linking You can link the V-2 to a DMX controller using a 3- or 5-pin DMX connection. If using other DMXcompatible products with this product, you can control each individually with a single DMX controller.
  • Page 9 On-device Control Panel To access the control panel functions, use the four buttons located underneath the LCD display. Button Function <MENU> Switch menu pages to select a function ▲ Increases the numeric value of current function ▼ Decreases the numeric value of current function <ENTER>...
  • Page 10 Finished heating up, ready to work. Ready to Spark Displays current heating system temperature. Standby Page >>>>> Temp. 585 Press <ENTER> to get back to this page at any time (not DMX mode). Auto Heat-up Manual Press “▲” or “▼” to switch ON/OFF Auto ON/OFF Mode Pages Heat-up function.
  • Page 11 Wireless Remote-Control Mode & Operation This mode will allow you to control the Spark Machine V-2 using the wireless controller W-2. This consists of the transmitter and the receiver. Any one (or more) W-2 transmitter can work with any one (or more) W-2 receiver, no paring procedure needed.

  • Page 12: Dmx Mode & Operation

    • Press the button, and the Spark Machine V-2 will output spark momentarily for as long as you hold down the button (no more than 30 seconds). The screen display as below: Manual Spark • Release the button, Spark stops. The screen display as below: Manual Spark DMX Mode &...
  • Page 13 The longest duration of single time of spark output is 30 seconds when machine works properly. The machine will automatically stop after 30 seconds continuous output with LCD showing "Spark OFF".For longer output, just turn on spark again via DMX controller. Device Error E0 The selected DMX starting address is 1.
  • Page 14 Correspondence of Spark Height & Spark Density Spark Height Spark Density Height level 1(Minimum) Density level 1(Minimum) Height level 2 Density level 2 Height level 3 Density level 3 Height level 4 Density level 4 Height level 5 Density level 5 Height level 6 Density level 6 Height level 7...
  • Page 15 Press <ENTER>to exit Advanced Settings Exit Settings Interface. 6 SPARK SEED Spark Seed is the consumable specially designed for DJPOWER Spark Machine, to create light golden color cold firework for stage effect. ldentify & Activate Spark Seed • Swipe the Consumable ID card that come with the Spark Seed to identify the consumables about to be filled into the fixture.

  • Page 16: Technical Information

    • Precaution for use • The Spark Seed could be only flled in and used for the DJPOWER Spark Machine after successfully identified by swiping Consumable ID card. • Make sure to fill the Spark Seed through the feed port on the top of the fixture and when power supply is off.
  • Page 17 After a period of using, check if there is any consumable tuberculation inside the nozzle. Do necessary cleaning up if there has some, or it may affect spark performance, even damage the machine. Test-run your DJPOWER® V-2 on a monthly basis to achieve the best performance. Storage 7.2.1...

  • Page 18: General Troubleshooting

    General Troubleshooting 7.3.1 Device Error Description When error happens, device will stop working and heating system shuts off automatically. LCD shows corresponding error code.Unplug the machine and contact with after-sale service or dealer for help. Device Error Menu Map 7.3.2 Errors Display Possible Cause...
