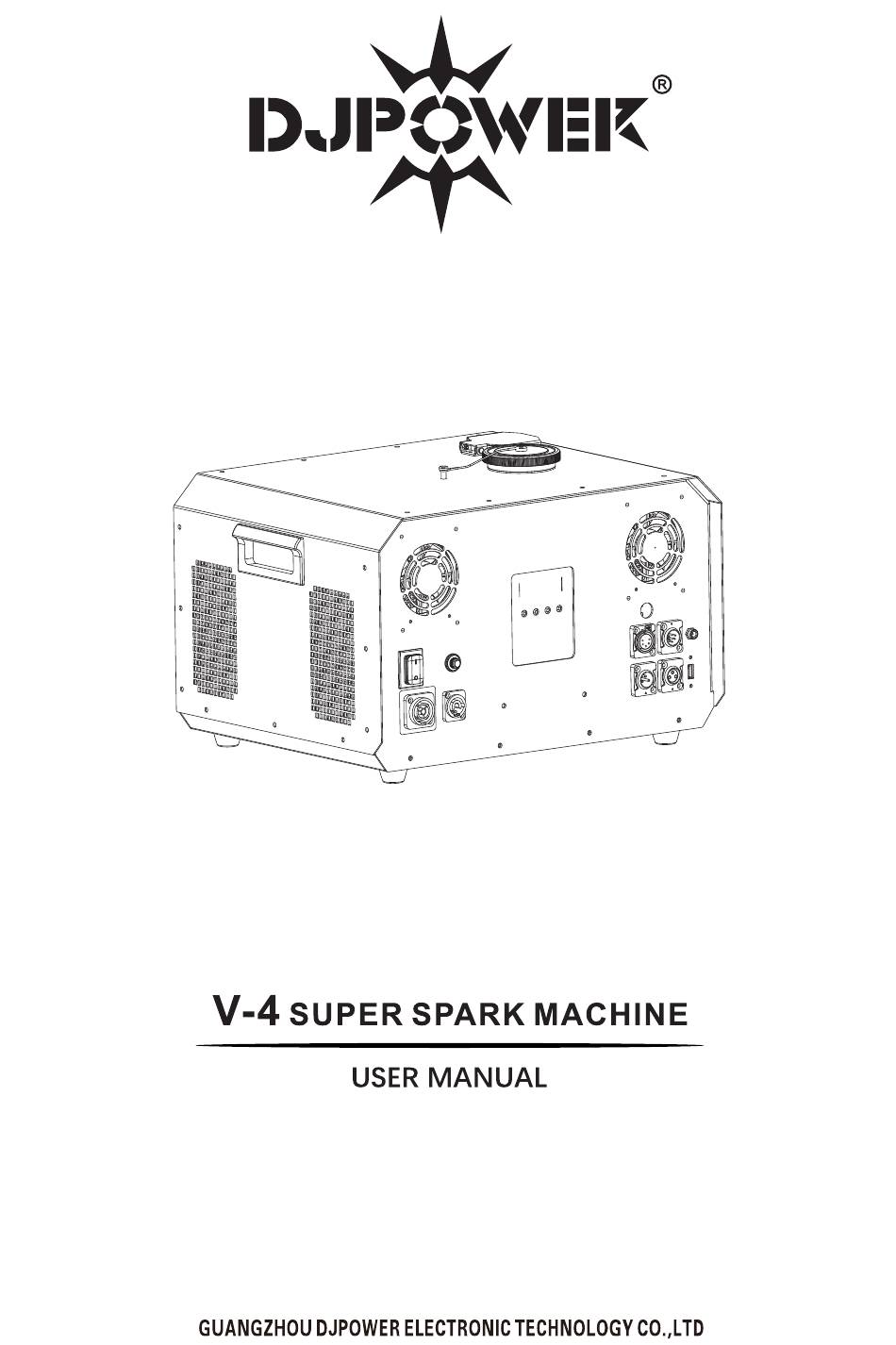

djpower V-4 User Manual

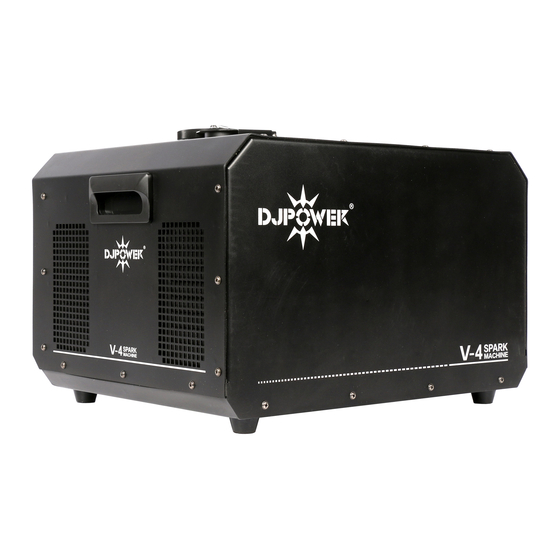

Super spark machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for djpower V-4

Summary of Contents for djpower V-4

  • Page 2: Before You Begin

    The information and specifications contained in this User Manual are subject to change without notice. DJPOWER assumes no responsibility or liability for any errors or omissions and reserves the right to revise or to create this manual at any time.Copyright © 2019 DJPOWER. All rights reserved.

  • Page 3: Mounting And Rigging

    • During heating up and operation, the housing will be scalding hot. Do not touch. • The product is very hot during operation and it remains hot for a long time after operation has stopped. Do not touch the product’s nozzle. •...

  • Page 4: Product Overview

    In the event of a serious operating problem, stop using the product immediately. • Use only DJPOWER Spark Seed PRO-K4. Keep this User Manual for future use. If you sell the product, be sure that the purchaser receives this document.

  • Page 5: Product Dimensions

    Product Dimensions 3 TECHNICAL SPECIFICATIONS Category Super Spark Machine Identification Model Input Voltage & Rate AC 220-240 V, 50/60 Hz Current Limiter Specifications 10 A, 250 V Typical Current 10 A AC Power Current Limiter Type Breaker Nominal Total Power Consumption 1,500 W Power Input Connector Lockable PowerCon...
  • Page 6 Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch. AC Plug The Super Spark Machine V-4 comes with a power input cord terminated with a Lockable power connector on one end. The other end is •...

  • Page 7: Preparing For Operation

    Plug the product’s power cord into the power outlet and continue using as recommended. DMX Linking You can link the V-4 to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX- compatible products with this product, you can control each individually with a single DMX controller.
  • Page 8 • Always connect the product to a grounded circuit. Before power on, make sure it is connected with the rated voltage. • Turn on the machine, it will immediately start heating up. On-device Control Panel To access the control panel functions, use the four buttons located underneath the LCD display. Button Function <MENU>...

  • Page 9: Dmx Mode & Operation

    Swipe a new card to top up run-time. Refer to “Identify & Activate Spark Seed” chapter to for more information. DMX Mode & Operation The Super Spark Machine V-4 works with a DMX controller. • Connect the product to a suitable power outlet.
  • Page 10 DJPOWER® V-4 DMX uses 2 DMX channels, which defines the highest configurable address to 511 to have all channels controllable. Set the Spark Machine V-4 starting address in the 001 - 512 DMX range. This enables control of up to 256 products in the 2-channel personality.

  • Page 11: Check Remaining Time

    086 - 110 Spark height level 4 111 - 135 Spark height level 5 136 - 160 Spark height level 6 161 - 185 Spark height level 7 186 - 210 Spark height level 8 211 - 235 Spark height level 9 236 - 255 Spark height level 10 0 - 9...
  • Page 12 Press <ENTER> to exit Advanced Settings Interface. Exit Settings 6 SPARK SEED Spark Seed is the consumable specially designed for DJPOWER Spark Machine, to create light golden color cold firework for stage effect. Identify & Activate Spark Seed • Swipe the Consumable ID card that come with the Spark Seed to identify the consumables about to be filled into the fixture.

  • Page 13: Precaution For Use

    Precaution for use • The Spark Seed could be only filled in and used for the DJPOWER Spark Machine after successfully identified by swiping Consumable ID card. • Make sure to fill the Spark Seed through the feed port on the top of the fixture and when power supply is off.

  • Page 14: Technical Information

    7 TECHNICAL INFORMATION Maintenance The V-4 requires minimal upkeep in order to maintain optimum performance. However, some steps are needed in order to clean and maintain the product for maximum usage. The recommended procedure is as follows: • After a period of using, check if there is any consumable tuberculation inside the nozzle. Do necessary cleaning up if there has some, or it may affect spark performance, even damage the machine.

  • Page 15: General Troubleshooting

    General Troubleshooting 7.3.1 Device Error Description When error happens, device will stop working and heating system shuts off automatically. LCD shows corresponding error code. 7.3.2 Device Error Menu Map Errors Display Possible Cause Device Error The heating system temperature is higher than Over heat shutdown 730 ℃...
