USER MANUAL
V1.0 | HH132

Advertisement

loading
Need help?

Need help?

Do you have a question about the HH132 and is the answer not in the manual?

Questions and answers

Related Manuals for TCL HH132

Summary of Contents for TCL HH132

  • Page 1 USER MANUAL V1.0 | HH132...

  • Page 2: Table Of Contents

    Contents Chapter 1. Meet your CPE................4 1.1 System requirements ................4 1.2 Overview ....................4 Chapter 2. Get started with your CPE ............6 2.1 Insert a nano SIM card ................6 2.2 Access CPE network ................. 7 2.3 Use the telephone function (optional)............7 Chapter 3.

  • Page 3: Read This First

    • TCL Communication Ltd. does not assume any liability that may occur due to the use or application of the product described herein. Every effort has been made in the preparation...

  • Page 4: Chapter 1. Meet Your Cpe

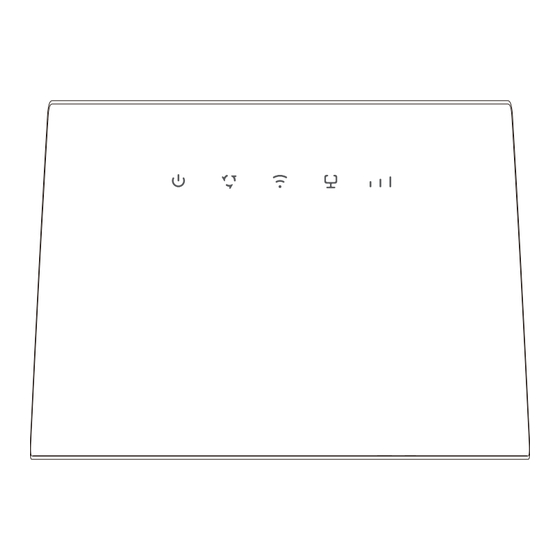

    Chapter 1. Meet your CPE The Cat13 LTE CPE is a dual-band WiFi device. It operates at both 2.4 GHz and 5 GHz, and provides wired and wireless access for multiple computers and mobile devices. With various features and functions, the Cat13 LTE CPE is a perfect hub of your home or business network.
  • Page 5 • 1 bar: weak signal strength. • 2 bars: good signal strength. 5. Signal indicator • 3 bars: excellent signal strength. • Off: no signal. Use a paperclip to press the button for 3 seconds to reset the 6. Reset button device.

  • Page 6: Chapter 2. Get Started With Your Cpe

    Chapter 2. Get started with your CPE This chapter introduces the basic instructions on how to set up your CPE and make connections. The instructions may vary depending on your CPE model. 2.1 Insert a nano SIM card Prerequisite: Select the right size of SIM card for your CPE. Nano-SIM (4FF) Micro-SIM (3FF) Mini-SIM (2FF)

  • Page 7: Access Cpe Network

    2.2 Access CPE network You can connect your devices to the CPE network wiredly or wirelessly as illustrated below. Access wired network To establish a wired network connection, connect the wired device to the LAN port of your CPE using an Ethernet cable. Access wireless network To establish a wireless network connection, select the Wi-Fi name (or the SSID) of the CPE on your wireless devices, and enter the Wi-Fi password.

  • Page 9: Chapter 3. Access The Web Ui

    Chapter 3. Access the web UI This chapter introduces how to get access to the web UI of your CPE, and gives you a glimpse of the web UI. 3.1 Log in to the web UI To log in to the web UI, follow these steps: 1.
  • Page 10 Wi-Fi is enabled. Wi-Fi is disabled. Click to log out of the web UI. NOTE • VoLTE function will be disabled if there is no telephone port on your device.

  • Page 11: Chapter 4. Configure Your Cpe

    Chapter 4. Configure your CPE In this chapter, we will show you how to get the most out of your CPE using the web UI. In the web UI, you can configure Wi-Fi settings, view connected devices, set up a guest network, and more.

  • Page 12: Status

    4.2 Status This section allows you to view your network information, connection status, device information, and more. Status You can have a quick check on your device information, such as cellular network, LAN, WAN, Wi-Fi, and diagnostics. Connected devices This tab allows you to edit the connected device name, and manage internet access for connected devices.

  • Page 13: Settings

    1. Locate the message you want to delete in the Inbox Outbox folder. Delete a message 2. Tick the checkbox beside the message you want to delete. 3. Click Delete. 1. Click at the top of the checkbox column to select all messages.
  • Page 14 Quick setup In this tab, you can configure basic connection settings, enable or disable data roaming, enable or disable 2.4 GHz and 5 GHz network, change SSID and Wi-Fi password, and more. Setup Network connection In this option, you can configure and manage connection mode, mobile data, and data roaming.
  • Page 15 Wi-Fi Password Check the Wi-Fi password in this item. Advanced Configure advanced Wi-Fi settings in this option. Max. connected You can decide how many client devices can connect to your CPE devices network at a time. Auto Wi-Fi mode The mode is set to by default.
  • Page 16 1. When the SIM PIN feature is enabled, click Disable SIM PIN 2. Enter the current SIM PIN code. 3. Click Apply. Advanced settings Basic Set up the WAN connection mode and modify related parameters under this option. You can set the connection mode to DHCP, PPPoE Static...
  • Page 17 MAC filter By default, any device connected to your CPE network is allowed to access the internet. You can specify which device can or cannot access the internet by adding the device to the blacklist or whitelist. Disable All connected devices can access the internet. Whitelist Only devices with a MAC address in this list can access the internet.

  • Page 18: System

    Bridge mode Bridge mode is a networking configuration where two devices are connected. When bridge mode is enabled, the router acts as a switch to extend its port access to other connected devices. 4.5 System In this section, you can quickly view the device information, reboot or reset your device, modify login password, and more.

  • Page 19: Important Safety Information

    Important safety information Read all the safety information before using your product. Failure to follow these safety instructions could result in injury, or damage to your product or other property. Important safety instructions • Observe signs and notices that prohibit or restrict the use of wireless devices. •...
  • Page 20 Directive 2014/53/EU. You can find the Declaration of Conformity at: https://www.tcl.com/global/en/service-support-mobile/eu-doc.html. Disposal and recycling information At TCL, we continually strive to improve our operations and products, and minimize our impact on the environment. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

  • Page 21: Troubleshooting

    Troubleshooting If you encounter problems while using the product, use the troubleshooting information to help determine the problem and find possible solutions. General problems Problem Solution • Log in the web UI, then go to Settings > Wi-Fi > Basic, and find the current Wi-Fi password. I forget the Wi-Fi password.
  • Page 22 10 times, the SIM card will be locked permanently. TCL and the TCL logo are trademarks of TCL Communication Ltd. All other trademarks and trade names are the property of their respective owners. © 2022 TCL Communication Ltd. All rights reserved.
