USER MANUAL
V1.0 | HH40L1/HH40L2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HH40L1 and is the answer not in the manual?

Questions and answers

Related Manuals for TCL HH40L1

Summary of Contents for TCL HH40L1

  • Page 1 USER MANUAL V1.0 | HH40L1/HH40L2...

  • Page 2: Table Of Contents

    2.3 Connect the power adaptor .................... 5 2.4 Access CPE network ...................... 5 2.5 Use the telephone function (For HH40L1 only) .............. 6 Chapter 3. Access the web UI ..................... 7 3.1 Log in to the web UI ...................... 7 3.2 Explore web UI features ....................

  • Page 3: Read This First

    • TCL Communication Ltd. does not assume any liability that may occur due to the use or application of the product described herein. Every effort has been made in the preparation...

  • Page 4: Chapter 1. Meet Your Cpe

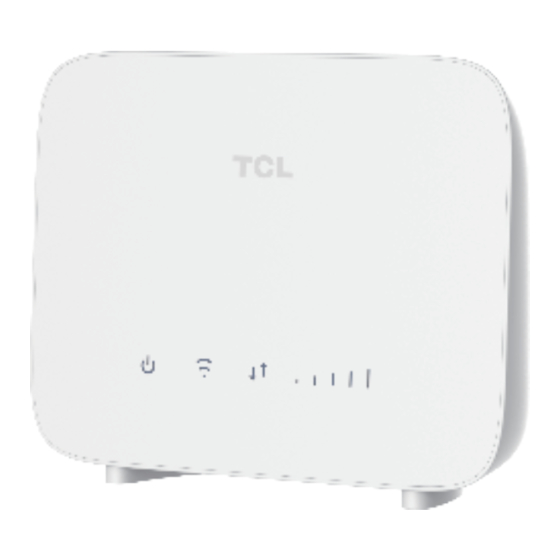

    Chapter 1. Meet your CPE This TCL CPE is a 4G LTE mobile router, providing download speeds of up to 150 Mbps. Your CPE lets you create fast and secure Wi‑Fi in any location with cellular network coverage. 1.1 System requirements Your CPE supports up to 32 connected devices with 2.4 GHz Wi‑Fi network (802.11b/g/n).
  • Page 5 When this function is disabled, other users cannot detect the SSID or the Wi‑Fi name. 8. Telephone port Connect a telephone to make or answer calls. (For HH40L1 only) For connecting with an internet source or wired devices such as 9. LAN/WAN port computers or switches.

  • Page 6: Chapter 2. Get Started

    Chapter 2. Get started This chapter introduces the basic instructions on how to get your CPE up and running. The instructions may vary depending on your CPE model. 2.1 Connect your CPE to the Internet The device can only connect with the network in one way at a time. Depending on the method you choose, you must perform the corresponding configuration.
  • Page 7 Be aware of the orientation of the SIM card. If the SIM card is inserted incorrectly, it may get jammed. 3. Install the battery. Ensure that the pins from the battery are aligned with the pins beside the reset button of your device.

  • Page 8: Identify An Ideal Location

    2.2 Identify an ideal location Identify an ideal location for your 4G CPE. To make the most of your CPE, make sure the location meets the following criteria: • Near a window • A cool, dry and well‑ventilated area away from objects such as walls and electrical appliances • Near a power outlet • On a sturdy and flat surface...

  • Page 9: Use The Telephone Function (For Hh40L1 Only)

    Click Random PIN code to change the PIN code. 2.5 Use the telephone function (For HH40L1 only) Your CPE supports telephone functionality. Connect a telephone to your CPE using a telephone cable as illustrated below.

  • Page 10: Chapter 3. Access The Web Ui

    Chapter 3. Access the web UI This chapter provides information on how to get access to the web UI of your CPE, and gives you a glimpse of the web UI. 3.1 Log in to the web UI To log in to the web UI, follow these steps: 1.
  • Page 11 Status icon What it means The CPE Wi‑Fi is off The VoLTE function is enabled (For HH40L1 only) The VOIP function is enabled (For HH40L1 only)

  • Page 12: Chapter 4. Configure Your Cpe

    Chapter 4. Configure your CPE In this chapter, we will show you how to get the most out of your CPE using the web UI. With the web UI, you can configure Wi‑Fi settings, view connected devices, manage SMS settings, and more. 4.1 Home On the Home page, you can configure the basic information for your CPE, including Internet, Statistics, Advanced, DHCP, Home network and Wi‑Fi settings.

  • Page 13: Devices Settings

    Pass Phrase Set a password for your Wi‑Fi network. 4.3 Devices Settings Connected Devices Click Connected Devices to get more detailed information on the connected devices. In the details page, you can edit the names of connected devices. Advanced Settings Dynamic Host Configuration Protocol (DHCP) is a client or server protocol that automatically provides you with an Internet Protocol DHCP...
  • Page 14 A WAN IP address is needed when some functions of your CPE are enabled. If the WAN IP address of your CPE changes, these functions may not work properly. DDNS The Dynamic Domain Name Server (DDNS) function allows you to map a dynamic WAN IP address (public IP address) to a static domain name, helping Internet users (WAN side) to access the CPE network via a static domain name.
  • Page 15 Click Apply. The IP address and related configuration settings such Dynamic IP as subnet mask and default gateway are all automatically assigned. Access the Internet using a fixed IP address, subnet mask, gateway Static IP IP address and Primary DNS server. This information should be provided by your network service provider.
  • Page 16 The DCS option for dynamic channel adjustment is only available when automatic channel is selected. Voice Settings (For HH40L1 only) SIP ALG (Session Initialisation Protocol Application Layer Gateways) This helps the private network terminal equipment under NAT to perform normal data exchange with the SIP softswitch on the public network, without making any changes.

  • Page 17: Sms

    the calling party does not conform to any of the dialling plans defined by DigitMap, the media gateway will directly release the call and send an empty number prompt tone to the calling party. This function is Disabled by default. Hotline settings Enter the hotline number and click Apply, to enable one‑touch dialling according to your settings.

  • Page 18: System Settings

    the Internet. You can use the Port filter to block specific devices from accessing the Internet. Disable: All connected devices can access the Internet. Enabled: Devices with a MAC/IP/Port address added to this list cannot access the Internet. Port mapping Port mapping enables a host's internal network (LAN) IP address become mapped on to a public network (WAN) IP address.
  • Page 19 Daylight saving time is a system for automatically specifying local time. The unified time adopted during the Daylight saving time implementation of this system is called "daylight saving time". This function is Disabled by default. Modify password Enter the current password, set the new username and password and click Apply. Restore factory setting If you can't access the Internet for unknown reasons, or have forgotten the login password, you can restore the CPE to factory settings.

  • Page 20: Important Safety Information

    Important safety information Read all the safety information before using your product. Failure to follow these safety instructions could result in injury, or damage to your product or other property. Important safety instructions • Do not use the device in areas where wireless devices are prohibited. • Do not let children use the device and its accessories without supervision.

  • Page 21: Operating Temperature

    Operating temperature Your device is designed to work best in ambient temperatures between 0 °C and 40 °C (32 °F and 104 °F), and should be stored in ambient temperatures between ‑20 °C and 70 °C (‑4 °F and 158 °F). Your device may malfunction if operated or stored outside of these temperature ranges.

  • Page 22: Troubleshooting

    Troubleshooting If you encounter problems while using the product, use the troubleshooting information to help determine the problem and find possible solutions. General problems Problem Solution • Log in to the web UI, then go to Devices Settings > Wi‑Fi Settings >...
  • Page 23 1. Log in to the web UI. How do I change the login 2. Go to System Settings > System Settings > Modify password? Password. • Make sure there is a SIM card in your CPE. • Reinstall the SIM card, and log in to the web UI "No SIM card"...
