Summary of Contents for TCL LINKZONE MW63
- Page 1 V1.0 | MW63 CJB70M005AAA...

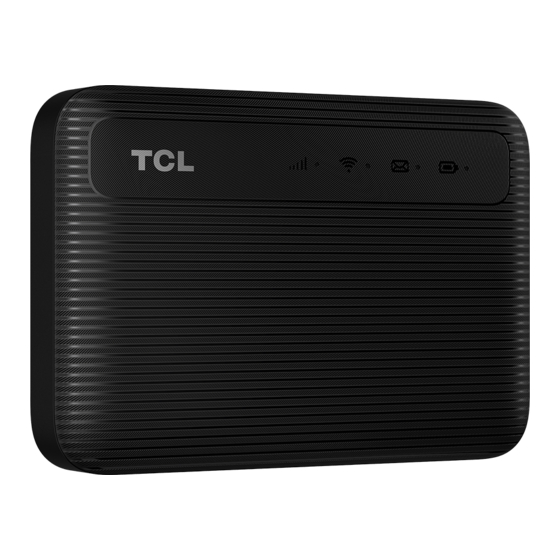

- Page 2 Overview Buttons • Press and hold for 3 seconds to power on or off your Power button device. • Press and hold for 10 seconds to reboot your device. NOTE If your device supports LED time-out control and this feature is activated, then short press power button to turn on LED indicators once they are turned off.
-
Page 3: Status Led
Status LED Wi-Fi • Solid blue: Wi-Fi is enabled. Indicator • Off: Wi-Fi is off. • Solid blue: new Indicator message(s). • Flashing blue: SMS inbox is full. • Off: No new message. • Solid blue: battery Signal •... - Page 4 N a n o S I M Insert a nano SIM card into the slot. card slot Reset button Use a paperclip to press the button for 3 seconds to reset the device. EN - 4...
- Page 5 Insert the SIM Card & Battery Note: Heed the orientation of your SIM card. Make sure you align the SIM card with the slot and slide it into the slot until it sits properly. EN - 5...
- Page 6 Power On Press and hold the power button for 3 seconds to turn on your LinkZone. EN - 6...
-
Page 7: Connect To The Network
Connect to the Network xxxx-xxxx ********* Select network xxxx-xxxx xxxx-xxxx password xxxxxxxxx *********** xxxxxxxxx xxxxxxxxx xxxxxxxxx Security Key: *********** SSID: xxxx-xxxx Cancel WIFI Key: *********** Note: The default Wi-Fi name and password can be found on the label inside your LINKZONE. EN - 7... -
Page 8: Configure The Network
Configure the Network Note: For the default login information, refer to the label inside your LinkZone. To configure the LINKZONE Wi-Fi network: 1. Open a web browser on the device connected to the LINKZONE network. 2. Go to the login website and follow the on-screen instructions. The login website can be found on the label beneath the battery. -
Page 9: Important Safety Information
Important Safety Information Read all the safety information before using your device. Failure to follow these safety instructions could result in injury, or damage to your device or other property. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. -
Page 10: Power Adapter
• Do not dispose of the device and its accessories in a fire. Power adapter Charge your device with the supplied USB cable. Only charge with an adapter that is compliant with the applicable international and regional safety standards. The adapter shall be CE-approved. Using other adapters could cause damage to the device or pose a risk of injury or death. - Page 11 Battery CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. In accordance with air regulations, the battery of your product is not fully charged. Please charge it first. • Do not attempt to open the battery (due to the risk of toxic fumes and burns).
-
Page 12: Operating Environment
Operating environment Your device is designed to work best in ambient temperatures between 0 °C and 40 °C (32 °F and 104 °F), and should be stored in ambient temperatures between –10 °C and 70 °C (14 °F and 158 °F). Your device may malfunction if operated or stored outside of these temperature ranges. -
Page 13: Frequency Band
Maximum SAR for this model and conditions under which it was recorded Body-worn SAR (5 mm) UMTS 1800MHz + Wi-Fi 2.4GHz 1.56 W/kg Limb SAR (0 mm) LTE Band 7 + Wi-Fi 2.4GHz 3.47 W/kg Frequency band This product operates with the following frequency bands and maximum radio- frequency power: Frequency band Maximum radio-frequency power... - Page 14 LTE TDD B38 (2600 MHz) 23.5 dBm 802.11 b/g/n 2.4GHz 19.43 dBm 802.11 a/n/ac 5150 – 5350 MHz 19.21 dBm 802.11 a/n/ac 5470 – 5725 MHz 19.04 dBm 802.11 a/n/ac 5725 – 5875 MHz 13.05 dBm Restrictions: This equipment may be operated in all European countries. The 5150-5250 of Wi-Fi 5GHz can be used indoors and outdoors only when the equipment is not attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna.
- Page 15 (NI) Third countries EN - 15...
-
Page 16: Regulatory Compliance
Regulatory compliance Hereby, TCL Communication Ltd. declares that the radio equipment type TCL MW63VK is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU declaration of conformity is available at: https:/ /www.tcl.com/global/en/ service-support-mobile/eu-doc.html... - Page 17 Waste disposal and recycling The device, accessory and battery must be disposed of in accordance with locally applicable environmental regulations. This symbol on your device, the battery, and the accessories means that these products must be taken to: • Municipal waste disposal centres with specific bins. •...
-
Page 18: General Information
Full user Check the Help section on the login website. manual Manufacturer TCL Communication Ltd. 5/F, Building 22E, 22 Science Park East Avenue, Hong Address Kong Science Park, Shatin, NT, Hong Kong Software update The connection costs associated with finding, downloading and installing software updates for your mobile device’s operating system... - Page 19 Privacy statement of device usage Any personal data you shared with TCL Communication Ltd. will be handled in accordance with our Privacy Notice. You can check our Privacy Notice by visiting our website: https:/ /www.tcl.com/global/en/communication-privacy-policy...
-
Page 20: Limited Warranty
You live (“Consumer Rights”). This Limited Warranty sets out certain situations when the Manufacturer will, or will not, provide a remedy for the TCL device. This Limited Warranty does not limit or exclude any of your Consumer Rights relating to the TCL device.
