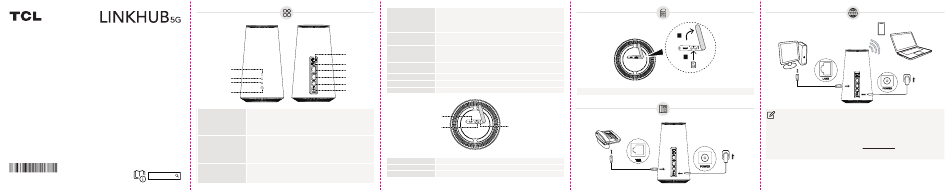

TCL Linkhub 5G Quick Start Manual

Quick Start Guide
HH515V
CJB1YM001AAB
www.tcl.com
5
6
1
7
8
2
3
9
10
4
• Solid blue: the signal is strong.
• Solid yellow: the signal is good.
1. 5G network indicator
• Solid red: the signal is weak.
• Off: the 5G network is not working.
• Solid blue: the signal is strong.
• Solid yellow: the signal is good.
2. 4G network indicator
• Solid red: the signal is weak.
• Off: the 4G network is not working.
• Blinking blue: WPS connection is available.
3. Wi-Fi/WPS indicator • Solid blue: Wi-Fi is enabled.
• Off: Wi-Fi is disabled.
• Solid blue: the device is on.
• Blinking blue: the device is performing factory reset or firmware
4. Power indicator
update.
• Off: the device is off.
• Press for 3 seconds to power off your device.
5. Power button
• Press for 1 second to power on your device.
Press the button for 3 seconds to enable the WPS function. The WPS
6. WPS button function will be automatically disabled if a WPS connection is not
established within 2 minutes.
Used to connect to an internet source or wired devices such as
7. WAN/LAN port
computers or switches.
8. LAN port Used to connect to wired devices such as computers or switches.
9. Telephone port Connect a telephone to make or answer calls.
10. Power connector Used to connect to the power adapter.
1
3
2
1. Micro USB port It is intended for debug use only.
2. Nano SIM card slot Insert a nano SIM card in the slot.
3. Reset button Use a paperclip to press the button for 3 seconds to reset the device.
1
2
NOTE: Do not remove the SIM card when your CPE is in use.
• To establish a wired network connection, connect the wired device to the LAN port of your
CPE using an Ethernet cable.
• To establish a wireless network connection, search for the Wi-Fi name on your wireless
devices. The default Wi-Fi name (or the SSID) and password can be found on the bottom
label of your CPE.
• To configure the CPE Wi-Fi network, open a web browser on the device connected to the
CPE network wiredly or wirelessly, then go to http:/ /192.168.1.1 and follow the on-screen
instructions.
NOTE: For the default login information, refer to the bottom label of your CPE.
.
© 2022 TCL Communication Ltd. All rights reserved
