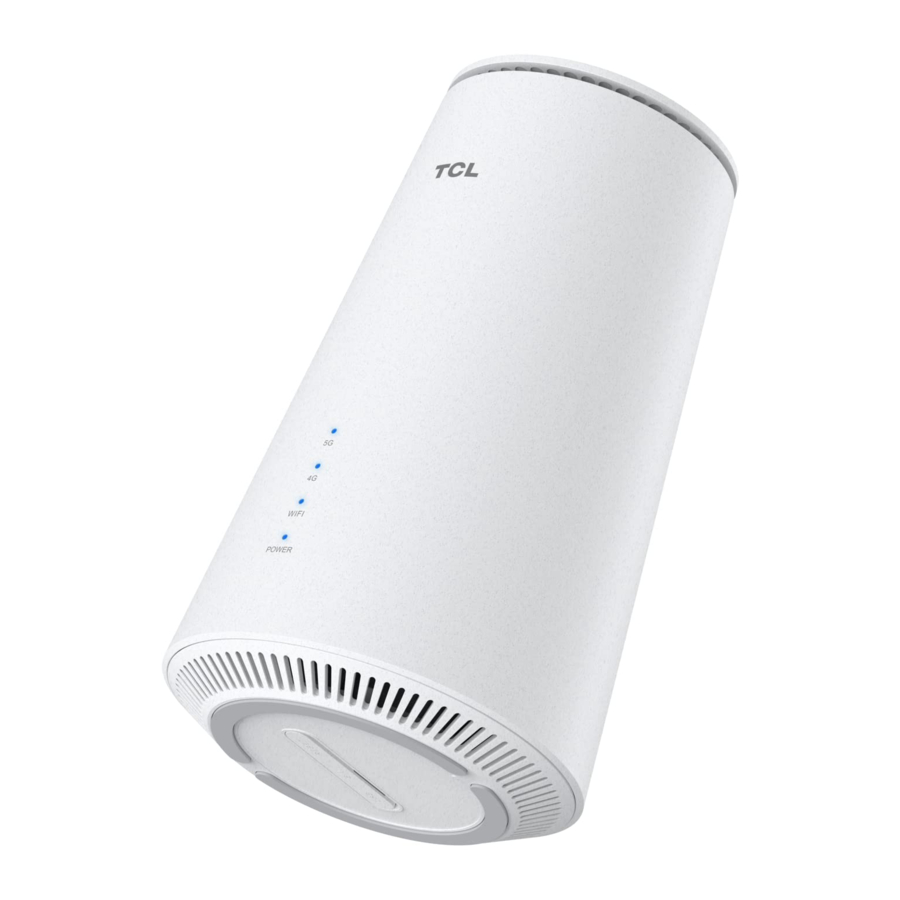

TCL LINKHUB 5G (HH512V) Manual

Product Overview

Inserting the SIM card

NOTE: Do not remove the SIM card when your CPE is in use.

Phone connection

Network connection

• To establish a wired network connection, connect the wired device to the LAN port of your CPE using an Ethernet cable.
• To establish a wireless network connection, search for the Wi-Fi name on your wireless devices. The default Wi-Fi name (or the SSID) and password can be found on the bottom label of your CPE.
• To configure the CPE Wi-Fi network, open a web browser on the device connected to the CPE network wiredly or wirelessly, then go to http:/ /192.168.1.1 and follow the on-screen instructions.
  NOTE: For the default login information, refer to the bottom label of your CPE.

Adapters

Mains powered adapters will operate within the temperature range of: 0°C (32°F) to 40°C (104°F).
The adapters designed for your device meet the standard for safety of information technology equipment and office equipment use. They are also compliant with the ecodesign directive 2009/125/EC. Due to different applicable electrical specifications, an adapter you purchased in one jurisdiction may not work in another jurisdiction. They should be used for the purpose of charging only.
Model: CYSE36-120300E/CYSE36-120300UK/S040QV1200300
Input Voltage: 100~240V
Input AC Frequency: 50/60Hz
Output Voltage: 12.0V
Output Current: 3.0A
Output Power: 36.0W
Average active efficiency: 87.4%
No-load power consumption: 0.1W

Frequency bands and maximum radio-frequency power

This radio equipment operates with the following frequency bands and maximum radiofrequency power:
LTE FDD B1/3 (2100/1800 MHz): 23.5 dBm
LTE FDD B7/28 (2600/700 MHz): 23.0 dBm
LTE FDD B8 (900 MHz): 24.0 dBm
LTE FDD B20 (800 MHz): 25.0 dBm
LTE TDD B38 (2600 MHz): 24.0 dBm
LTE TDD B40/42/43 (2300/3500/3700 MHz): 23.0 dBm
UL CA Combination: 25.5 dBm
5G NR FDD n1/n3 (2100/1800 MHz): 23.5 dBm
5G NR FDD n7/n8/n28 (2600/900/700 MHz): 24.5 dBm
5G NR FDD n20 (800 MHz): 24.0 dBm
5G NR TDD n38/n40 (2600/2300 MHz): 24.0 dBm
5G NR TDD n41/n77/n78 (2500/3700/3500 MHz): 27.0 dBm
EN-DC Combination: 26.0 dBm
802.11 b/g/n/ax 2.4GHz: 17.75 dBm
802.11 a/n/ac/ax 5150 – 5350 MHz: 17.51 dBm
802.11 a/n/ac/ax 5470 – 5725 MHz: 17.43 dBm
802.11 a/n/ac/ax 5725 – 5875 MHz: 11.79 dBm

Safety and use

Please read this chapter carefully before using your device. Failure to follow these safety instructions could result in injury, or damage to your device or other property. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein.

• Do not use the device in areas where wireless devices are prohibited.
• When the device is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid, or an insulin pump. Consult your physician and medical device manufacturer for information specific to your medical device.
• Do not let children use the device and/or play with the device and accessories without supervision.
• Always handle your device with care, and keep it in a clean and dust-free place.
• Do not attempt to repair the device yourself.
• Do not drop, throw, or bend your device.
• Do not dispose of the device and its accessories in a fire.
• Do not allow your device to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The manufacturer's recommended operating temperature range is 0°C (32°F) to 40°C (104°F).
• Use only batteries, battery chargers, and accessories which are compatible with your device model.

General information

• Internet address: tcl.com
• Service Hotline and Repair Center: Go to our website www.tcl.com/global/en/service-supportmobile/hotline&service-center.html.
• Manufacturer: TCL Communication Ltd.
• Address: 5/F, Building 22E, 22 Science Park East Avenue, Hong Kong Science Park, Shatin, NT, Hong Kong
