- Page 3 User manual PVM-1530 Photovoltaic meter SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland Version 1.00 06.09.2024...

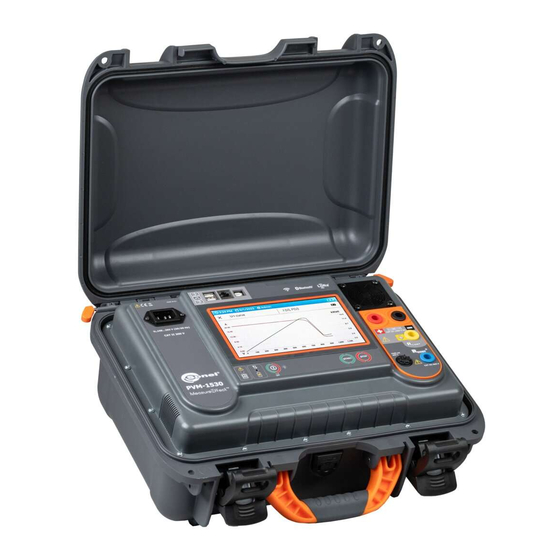

- Page 4 The PVM-1530 meter is a modern, top quality measuring instrument which is easy and safe to use, provided that the principles presented in this manual are observed. The meters are part of the Sonel MeasureEffect™ platform. It is a comprehensive system that enables you to take measurements, store and manage data, and provides multi-level control of your instruments.
-
Page 5: Table Of Contents
CONTENTS 1 General information ........................4 Safety symbols ............................4 Behaviour of signalling LEDs........................4 Safety............................... 5 General characteristics ..........................6 Compliance with standards ........................7 2 Quick start ...........................8 3 Interface ............................9 4 Measurement indicators......................10 5 Data transmission ........................11 Set of accessories to connect the meter to a PC .................. 11 Data transmission through USB port ..................... -
Page 6: General Information
General information Safety symbols The following international symbols are used in the device and/or in this manual: Refer to the user manual for additional information and Ground AC current/voltage explanations Declaration of Conformity Double insulation DC current/voltage with EU directives (protection class) (Conformité... -
Page 7: Safety
Safety To avoid electric shock or fire, as well as provide the conditions for correct operation and accuracy of obtained results, you must observe the following guidelines: • Before you proceed to operate the device, acquaint yourself thoroughly with this manual and observe the safety regulations and specifications defined by the producer. -
Page 8: General Characteristics
ries may cause damage to measuring terminals, introduce additional measurement errors and create a risk for the user. Due to continuous development of the meter’s software, the actual appearance of the display for some features may slightly differ from that presented in this user manual. The latest version of the manual is provided on the manufacturer's website. -
Page 9: Compliance With Standards
Compliance with standards The tester meets the requirements of the following standards: • IEC 61557-1 – Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC – Equipment for testing, measuring or monitoring of protective measures – Part 1: General requirements. -
Page 10: Quick Start
Create or log in to a user account. Enter the meter settings Select measurement. You can find information about it under icon and in the Sonel MeasureEffect™ platform manual. Enter the measurement settings. Connect the meter to the tested object. Start the measurement. -
Page 11: Interface
Interface ▲ • Turn on the meter (short press) • Turn off the meter (press and hold) • Call up the brightness and volume menu (press briefly when the meter is on) Start measurement Stop measurement PVM-1530 │ USER MANUAL... -
Page 12: Measurement Indicators
Measurement indicators Before the measurement The voltage on the object is present continu- ously and does not exceed 50 V. The meas- The diode does not light. urement is possible, but it may be burdened with an additional error. • The voltage on the object is present continuously and exceeds 50 V. -
Page 13: Data Transmission
• Sonel Reports Plus. The software may be used for many devices manufactured by SONEL S.A. which are equipped with a USB interface. Detailed information is available from the manufacturer and distributors. If the required software has not been purchased with the meter, it may be obtained from the manu- facturer or from an authorised distributor. - Page 14 Additional information displayed by the meter ▼ USB communication, data transfer. ▼ PVM-1530 │ USER MANUAL...
-
Page 15: Fuse Replacement
Fuse replacement The device is protected by one fast-acting fuse 6.3 x 32 mm 500 mA / 1000 V AC/DC. To replace the fuse, unscrew the socket head, place a working fuse in place of the damaged fuse, and then screw on the socket head. -
Page 16: Power Supply
Power supply NOTE! Before operating the meter, discharge the battery and then fully charge it, so that the indication of its charged status is correct. The charge level of the rechargeable battery is indicated by the symbol in the right upper corner of the display on a permanent basis. -
Page 17: Battery Power
Battery power The meter is powered by a Li-Ion battery. The whole device is powered via the power cord. NOTE! Do not power the meter from sources other than those listed in this manual. Charging rechargeable battery Charging starts once the power supply has been connected to the meter, regardless of whether the meter is on or off. -
Page 18: General Rules For Using Li-Ion Rechargeable Batteries
General rules for using Li-Ion rechargeable batteries • Store the meter with batteries charged at least to 50%. The battery pack may be damaged if stored when fully discharged. The ambient temperature for prolonged storage should be main- tained within the range of 5°C…25°C. The environment should be dry and well ventilated. Protect the device from direct sunlight. -
Page 19: Cleaning And Maintenance
Cleaning and maintenance NOTE! Use only the maintenance methods specified by the manufacturer in this manual. The casing of the meter may be cleaned with a soft, damp cloth using all-purpose detergents. Do not use any solvents or cleaning agents which might damage the casing (powders, pastes, etc.). Clean the probe with water and dry it. -
Page 20: Technical Data
11 Technical data 11.1 Basic data The abbreviation "m.v." used in the specification of accuracy denotes a measured value 11.1.1 Measurement of DC voltage Measurement range: 0 V…1500 V DC Display range Resolution Accuracy 0.0…1500.0 V 0.1 V ±(0.5% m.v. + 2 digits) 11.1.2 Measurement of AC True RMS voltage Measurement range: 0 V…1000 V AC... -
Page 21: Measurement Of Insulation Resistance Of The Module / Pv System
11.1.5 Measurement of insulation resistance of the module / PV system Measurement of R resistance = 250 V / 500 V / 1000 V / 1500 V: 250 kΩ…500 MΩ Measuring range according to IEC 61557-2 for U Display range Resolution Accuracy 0.0…999.9 kΩ... -
Page 22: Measurement Of Insulation Resistance
11.1.6 Measurement of insulation resistance = 250 V: 250 kΩ…200 MΩ Measuring range according to IEC 61557-2 for U Display range for Resolution Accuracy = 250 V 0.0…999.9 kΩ 0.1 kΩ 1.000…9.999 MΩ 0.001 MΩ ±(3% m.v. + 8 digits) 10.00…99.99 MΩ... -
Page 23: Measurement Of Operating Current And Power
0.01 kW and current measurement Current measurement at power measurement – AC and DC voltage • As in the Sonel CMP-1015-PV meter 11.1.8 Measurement of continuity of protective conductors and equipotential bondings with ±200 mA current Measuring range according to IEC 61557-4: 0.11…1999 Ω... -
Page 24: Operating Data
11.2 Operating data a) type of insulation acc. to IEC 61010-1 and IEC 61557 ....................double b) measurement category acc. to IEC 61010-2-030 ▪ group of sockets: „–”, „+”, – rated operating altitude ≤2000 m ............CAT III 1500 V DC ▪... -
Page 25: Bluetooth Specification
SONEL S.A. hereby declares that the radio device type PVM-1530 complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following website address: https://sonel.pl/en/download/declaration-of-conformity/ 11.3 Bluetooth specification a) version ................................ v4.2 Classic, BLE b) frequency range ...................... -
Page 26: Inverter Characteristics
R (for maximum test voltage) 12 Manufacturer The manufacturer of the device and provider of guarantee and post-guarantee service: SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 884 10 53 (Customer Service) e-mail: customerservice@sonel.com...
