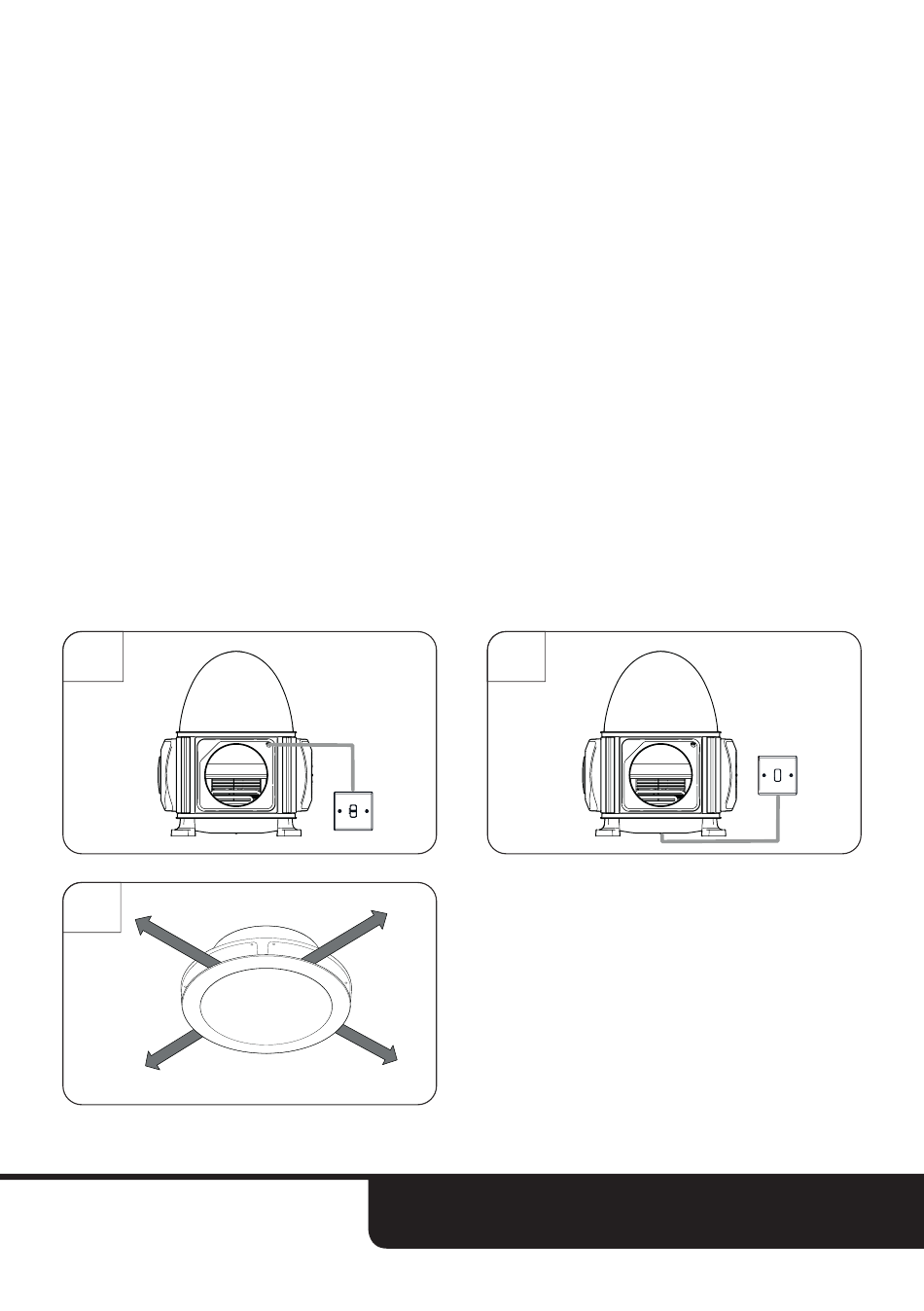

10. With the mains supply isolated, wire the power cable into the
unswitched fuse spur then wire the unswitched fuse spur into the
mains supply (see wiring diagram on page 5).
Use two of the 8g x 1" screws to attach the spur to a loft
joist.
11. The units can be wired to a heater enable switch (not included).
Wire into the connection located under the unit (see Page 5, cable not
included) and fit it in an accessible area. Do NOT wire into mains
or any other power source. Use two of the 8g x 1" screws to
attach the switch to the wall
12. Reconnect the mains supply at the local isolator. After a few
seconds air will begin to flow from the diffuser (see page 16 for air
flow rate settings).
10
12
13
PIV & MIV Air Source
11
