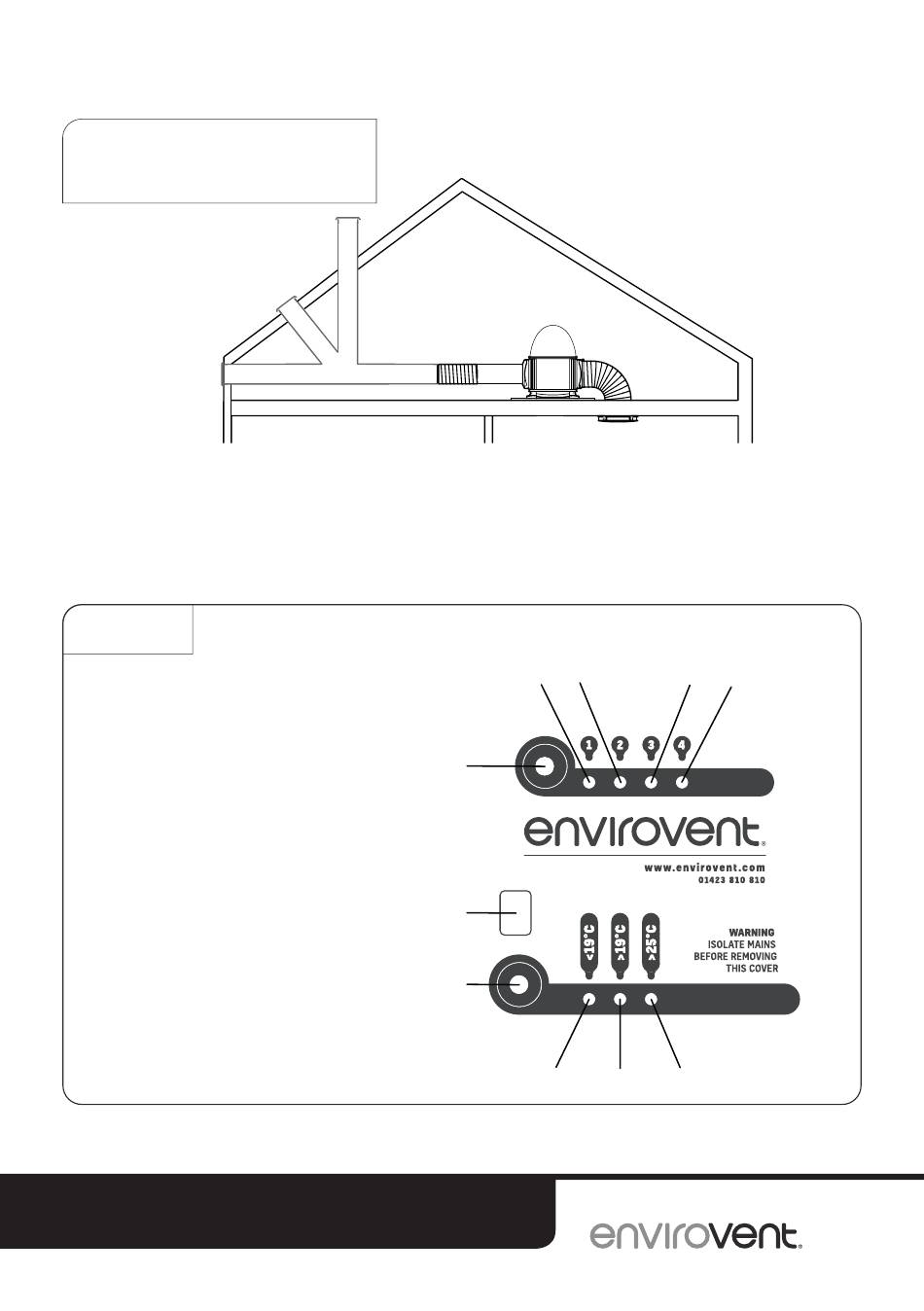

INLINE DUCT
CONFIGURATIONS
1
Use one of three options to connect the inline duct to the outside of the property (extra
parts not supplied):
1. Straight duct to a wall mounted vent or grille.
2. Angled duct to a roof tile vent.
3. 90 degree bend duct to a straight roof vent.
KEYPAD
1 - Airflow 1
2 - Airflow 2
3 - Airflow 3
4 - Airflow 4
5 - Temperature <19
6 - Temperature >19
7 - Temperature >25
8 - Top button
9 - Numeric Display
10 - Bottom button
AFTER INSTALLATION THE END USER SHOULD
KEEP THIS GUIDE FOR FUTURE REFERENCE
3
2
8
C
0
C
0
9
C
0
10
DO NOT
THROW AWAY
1 2 3
5 6 7
4
4
