Summary of Contents for AURES EKO

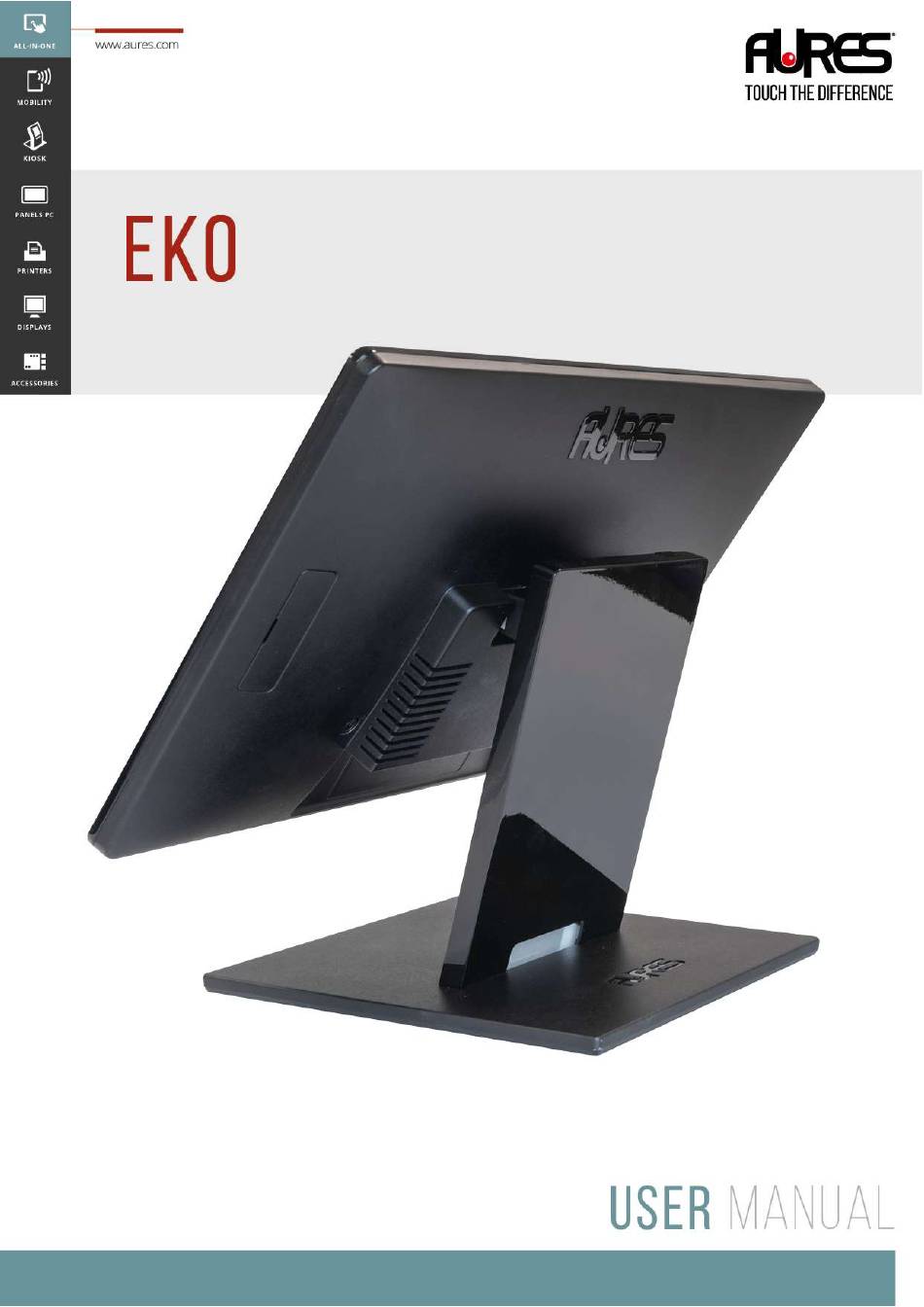

- Page 1 P a g e...
- Page 2 1. Precaution Segment Changes to the EKO user manual are listed below. Rev No. Revision History Date EKO-USER-MANUAL-Rev1.0 MAY 2024 P a g e...
-
Page 3: Intended Audience
Preface This User's Guide gives information about main unit/IO port layout, basic setup, component installation, and board layout for point of sale system. Intended Audience The User's Guide is intended for technically qualified personnel. It is not intended for general audiences. Document Organization The chapters in this Product User’s manual are arranged as follows: Specification... -
Page 4: Specification
Specification System Processors RK3399 Dual-core Cortex-A72 up to 1.8GHzQuad-core Cortex-A53 up to 1.4GHz Memory 4GB Standard, DDR4 (On-board) Storage eMMC 64GB (On-board) Operating Systems Android 12 Audio HD Audio Codec Display Type 15.6" TFT LCD, LED Backlight, Projected Capacitive Touch Resolution 1920 x 1080 Brightness... -
Page 5: Symbol; Mark
SYMBOL; MARK CE MARK This device complies with the requirements of the EEC directive 2004/108/EC with regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. - Page 6 Neither this manual, nor any of the material contained herein, may be reproduced without express written consent of the author. AURES is trademarks of AURES Technologies S.A. in the France and other countries. * Other names and brands may be claimed as the property of others.
-
Page 7: Safety Instructions
Safety Instructions To disconnect the machine from the electrical power supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully. - Page 8 Notice 1. Always ensure that the correct power voltage is used as a precaution against fire and electrical shock. 2. Avoid exposing product to direct sunlight. Do not use product in areas of high humidity. Doing so may cause low reliability and/or operational malfunction. 3.
-
Page 9: Liability Limitation
This product is qualified by FCC, CE and KC compliances, and is thus governed by these qualifications’ safety regulations. However, the product can affect and be affected by other high frequencies generated around it. As such, AURES does not consider liability for any system error or disorder due to this issue. -
Page 10: Installation Recommendations
Installation Recommendations Avoid installing during thunderstorms. (Possibility of dangerous exposure to electricity.) Install away from damp spaces or water-leaks. Beware of static occurrence during installation. Use only ground connected and quality certified power cords and cables. Keep out of direct sun-light, extremely high or low temperatures, or high humidity areas. Install product away from areas prone to shocks or vibration. -
Page 11: Power Management
Power management Android To turn on the power, press and hold the power button for a few seconds. To turn off the power, press and hold the power button for a few seconds and select the [ Power off ] displayed on the screen. - Page 12 2. The POS terminal main unit, power cable and power supply are included in the package. If any items are missing or damaged, please contact your dealer for assistance. » All user manuals and drivers are available for download on our website: www-aures-support.com Adapter / Power cord 12 |...
-
Page 13: Installation
2. Installation Start-up Caution 1) Check if the power connected to POS terminal is turned off. Caution 2) Separate all cables connected to system box. Assemble Stand Step 1: how to remove the back cover. Step 2: cable management & power supply connection. - Page 14 Side accessories installation (MSR, Dallas) Caution 1) Check if the power connected to POS terminal is turned off. Caution 2) Separate all cables connected to system box. Assemble MSR Step 1: identify the side accessories door. Step 2: remove the accessories door. Step 3: install the chosen accessory.
- Page 15 Assemble MSR Step 4: secure by screwing it on. 15 | P a g e...
- Page 16 Display installation (VFD, 10.1inch) Caution 1) Check if the power connected to POS terminal is turned off. Caution 2) Separate all cables connected to system box. Assemble 2nd Display Step 1: identify and “brake” the 4 holes covers. Step 2: insert the display arms and screw them on.
- Page 17 Assemble 2nd Display Step 4: connect to the miniDP port. 17 | P a g e...
- Page 18 VESA installation Caution 1) Check if the power connected to POS terminal is turned off. Caution 2) Separate all cables connected to system box. Assemble VESA Step 1: identify and remove the stand cover. Step 2: unscrew and separate the stand from the display.
-
Page 19: Hub Installation
HUB installation Caution 1) Check if the power connected to POS terminal is turned off. Caution 2) Separate all cables connected to system box. Assemble HUB Step 1: connect to the USB C-Type port. 19 | P a g e... -
Page 20: Motherboard Pin Assignment
4. Motherboard Motherboard Overview This includes description of the connectors on the motherboard. Warning Take note of the following precautions before you install motherboard components or change any motherboard settings. Unplug the power cord from the wall socket before touching any component. Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. - Page 21 Power 12V Pin No Description Pin No Description Cash Drawer Pin No Description Pin No Description Drawer2 open sensor Drawer1 open signal Drawer2 open signal Drawer1 open sensor 21 | P a g e...
- Page 22 COM Port Pin No Description Pin No Description USB C-Type Power In/Out Volt/Amp +12V Input Mode +12V / 5A +5V Output Mode +5A / 1.5A 22 | P a g e...
- Page 23 Mini DP Port (2nd Display) Pin No Description Pin No Description DP1_TX1- COM4_RX (for VFD) DP1_TX0+ CONF1 DP1_TX0- USB_D+ (for Touch) CONF2 DP1_AUX+ USB_D- (for Touch) DP1_AUX- DP1_TX1+ COM4_TX (for VFD) +V12 23 | P a g e...
