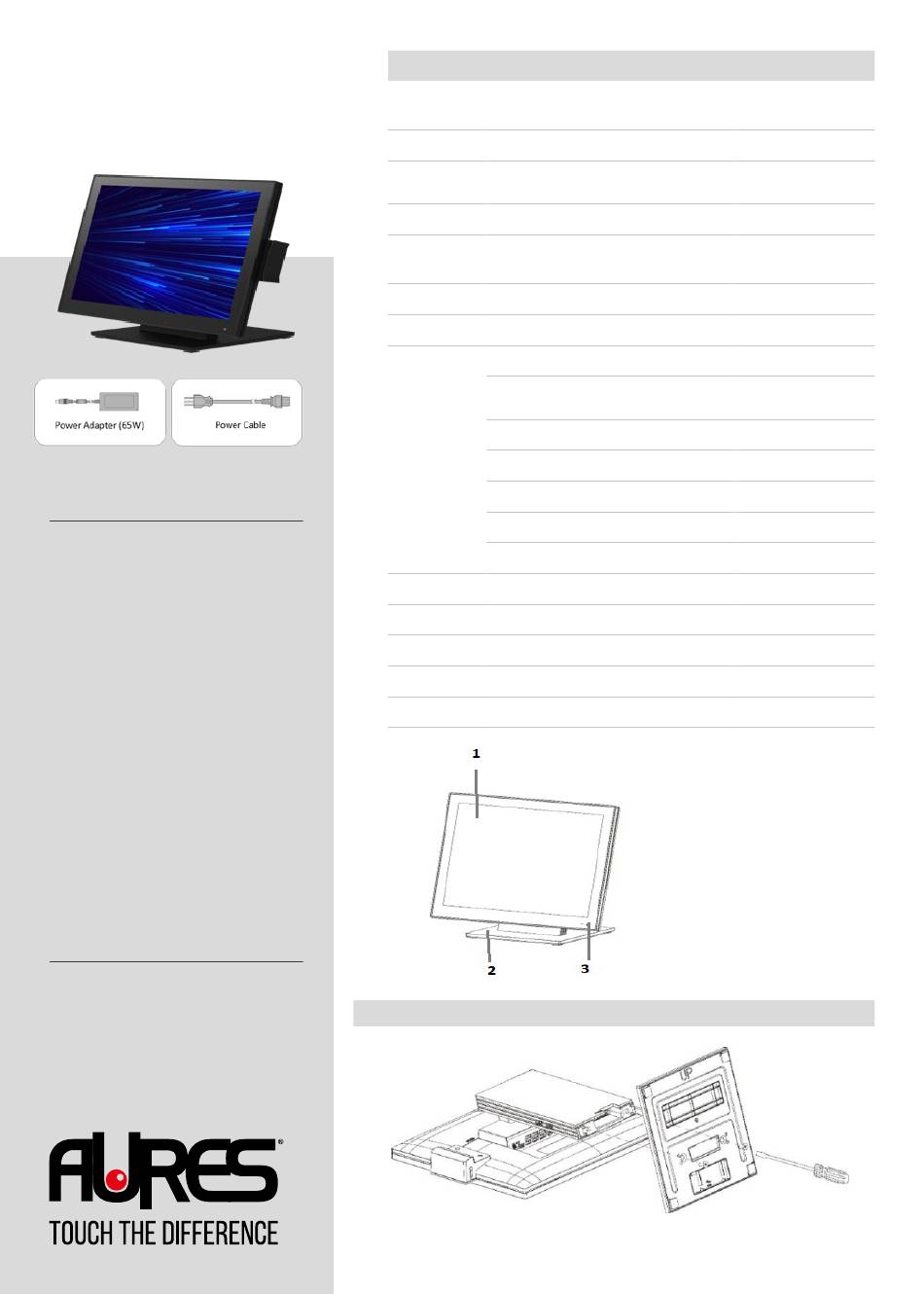

AURES TRX 3000 Quick Start Manual

TRX 3000
Quickstart Guide
SAFETY INSTRUCTIONS
To disconnect the product from the
electrical Power Supply, remove the power
cable plug from the wall socket. The wall
socket must be easily accessible and in close
proximity to the product.
Read these instructions carefully. Save these
instructions for future reference.
Follow all warnings and instructions marked
on the product.
Do not use this product near water.
Do not place this product on an unstable
cart, stand, or table. The product may fall,
causing serious damage to the product.
Only use power supply unit and cables
released by AURES.
Do not allow anything to rest on the power
cord. Do not locate this product where
persons will walk on the cord.
Never spill liquid of any kind on the product.
Ensure that the device connects to a socket/
outlet with ground/earth connection.
CE NOTICE
This device complies with EMC Directive
2014/30/EU and "Low Voltage Directive"
2014/35/EU issued by the Commission of
the European Community.
REL1.1 October22
Model Number
CPU
Storage
Memory
Graphic
Display
Touch
TPM
USB-A
RS-232
LAN
External I/O
Audio
C-type
Mini DP
Cash Drawer
Speaker
Power Supply
OS Support
Operating Temperature
Storage Temperature
15"
15,6"
Assembly Procedure
Assembly procedure
1. Screw-on the two screws at the bottom of the stand (M6 x 12L)
1)Screw-on the two screws at the bottom of
the stand (M6 x 12L)
1)Screw-on the two screws at the bottom of
TRX3000-151B TRX3000-156B
®
Intel Elkhart Lake J6412 (2.0 GHz)
Quad-core processor
M.2 2242 Nvme SSD X2 & SATA
1 x SO-DIMM DDR4-3733
SDRAM 4GB and 8GB
Intel HD Graphics
15" TFT LCD 1024 x 15,6" TFT LCD 1366 x
768 resolution 768 resolution
Projective Capacitive Touch
TPM 2.0
6Port (USB3.0*2 / USB2.0*4)
COM1, COM2, COM3
with DTR/12V Power output
Gigabit LAN (10/100/1000M BASET LAN)
HD Audio
Support ALT DP/USB3.0
MINI-DP(DP+COM5)
Self Define RJ12 Connector
Embedded
12V/5A Adaptor
Windows 10 64bit
0°C ~ 40°C at 10% ~ 80% humidity
-20°C ~ 60°C at 10% ~ 80% humidity
2 Stand
2 Stand
3 ON/OFF touch button
3 ON/OFF touch button
1. Screen
2. Stand
Diemnsions
3. ON/OFF touch button
Diemnsions
XXxXXxXXmm
15" Dimensions XXxXXxXXmm
XXxXXxXXmm 15'' : 350 x 303 x200 mm
15,6" XXxXXxXXmm
15,6'' : 385 x 283 x 200 mm
