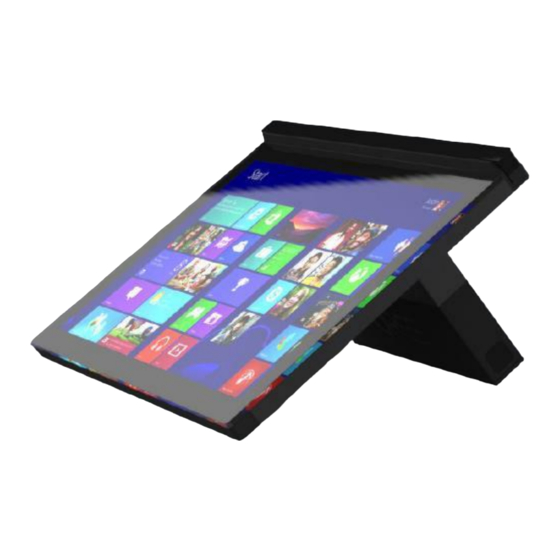

- Page 1 User Manual TWIST POS System...
-
Page 2: Liability Disclaimer
Copyrights this equipment does cause harmful interference to radio television reception, which ©2018 All rights reserved. The information in this determined by turning the equipment off and on, the document is subject to change without prior notice in user is encouraged to try to correct the interference order to improve reliability, design and function and by one or more of the following measures: does not represent a commitment on the part of the... -
Page 3: Weee Notice
WEEE Notice Safety IMPORTANT SAFETY INSTRUCTIONS To disconnect the machine from the electrical Power Supply, turn off the power switch and remove the power cable plug from the wall socket. The wall socket must be easily accessible and in close proximity to the The WEEE mark applies only to countries within the European Union (EU) and Norway. -
Page 4: Table Of Contents
Table of Contents Copyrights ......................i Liability Disclaimer ....................i Regulatory Information ..................i FCC Notice ........................... i CE Notice ..........................i UL Notice ..........................i WEEE Notice ........................ii Safety ........................... ii Table of Contents ....................iii 1. Item Checklist ....................1 1.1 Standard Items ...................... -
Page 5: Item Checklist
1. Item Checklist 1.1 Standard Items a. System : TWIST b. Power Adapter (65W) c. Power Cable d. RJ50-DB9 Cable 70cm (x2) e. Manual CD f. Safety Instructions Sheet g. Website Address Sheet... -
Page 6: System View
2. System View 2.1 Front and Side View Number Description Bezel Free 2.8mm Touch Glass and 13.3” LCD Panel Power Button USB 3.0 (Type A) 2.2 Top View Number Description Plastic-Rubber Cable Cover... -
Page 7: Dimension
2.3 Dimension (in mm) -
Page 9: I/O View
2.4 I/O View Front View Number Description DC-IN jack LAN (RJ45 Connector) COM1~2 (from right to left) (RJ50 Connector) 4 x USB 3.0 (Type A) USB-C (only 2 channel DisplayPort, but supports FHD) with Video and Power in/out USB-C (Power Deliver Out) to Processor Module Left &... -
Page 10: Pos System Assembly & Disassembly
3. POS System Assembly & Disassembly 3.1 Open the System Cover Open the System Cover as depicted below. -
Page 11: Replace The Memory And/Or Storage Disk Drive
3.2 Replace the Memory and/or Storage Disk Drive TWIST POS System offers M.2 Solid State Drive (SSD). *Please note that if you are replacing your SSD, you will need to reinstall your operating system after replacing it. Make sure the unit is powered off before starting. Please follow the below steps to finish the replacement : 1. - Page 12 3. Replace the Memory and/or Storage Disk Drive Replace the Replace the Memory Storage Disk Drive (1) Locate the memory slot (1) Locate the storage slot inside the Processor inside the Processor Module enclosure. Module enclosure. (2) Flip the ejector clips (2) Screw off the outwards to remove corresponding screw to...
- Page 13 4. Install the Processor Module and System Cover into the unit 5. Connect the power supply and get ready to power on the system...
-
Page 14: Install The Power Adapter
3.3 Install the Power Adapter The system is equipped with a 65W power adapter. Please follow below procedures to get it plugged into the system. 1. Slide out the Cable Cover of the I/O Module. 2. Remove the two side-screws to release the I/O Module. 3. -
Page 15: Specification
4. Specification Model Name TWIST Model Number ART-04152 ART-04153 ART-04154 JAZZ/TWIST-MB-1900 JAZZ/TWIST-MB-I3-6100U JAZZ/TWIST-MB-I5-7300U Intel® Core™ Intel® Core™ CPU support Intel® Bay Trail-M SoC Processor J1900 i3-6100U Processor i5-7300U Processor (2M Cache, up to 2.42 GHz) (3M Cache, 2.30 GHz) (3M Cache, up to 3.50 GHz) - Page 16 Power Power Adapter External 19V / 3.42A 65Watt Adapter Certifications FCC Class B / CE / LVD / RCM Safety Environment Operating temperature 0℃ ~ 35℃ (32℉ ~ 95℉) Storage temperature -20℃ ~ 60℃ (-4℉ ~ 140℉) Humidity 5% ~ 80%, non-condensing Dimension (W x D x H) 321.36 x 216.15 x 122.8 mm Weight (N.W.
-
Page 17: Configuration
5. Configuration 5.1 Processor Module 5.1.1 Layout, Connectors & Functions ART-04152 ART-04153 ART-04154 JAZZ/TWIST-MB-1900 JAZZ/TWIST-MB-I3-6100U JAZZ/TWIST-MB-I5-7300U Intel® Core™ Intel® Core™ Intel® Bay Trail-M SoC Processor J1900 i3-6100U Processor i5-7300U Processor (2M Cache, up to 2.42 GHz) (3M Cache, 2.30 GHz) (3M Cache, up to 3.50 GHz) -
Page 18: I/O Module
5.2 I/O Module 5.2.1 Layout, Connectors & Functions ART-04155 JAZZ/TWIST-I/O-MODULE DC-IN1 DC-IN jack LAN_CON1 LAN (RJ45 Connector) COM1 & COM2 COM1~2 (from right to left) (RJ50 Connector) USB1~6 4 x USB 3.0 (Type A) USB-C (Power Deliver Out) to Processor Module USB-C (only 2 channel DisplayPort, but supports FHD) with Video and Power in/out... -
Page 19: Appendix A: Driver Installation
Appendix A: Driver Installation To download the most recent drivers and utilities, and obtain advice regarding the installation of your equipment, please visit the AURES Technical Support Website: www.aures-support.fr(French) www.aures-support.fr/UK(English) www.aures-support.fr/GE(German)
