USER'S MANUAL
YUNO-K170-BLACK I ART-04550
Rev.D_OCT23

Advertisement

loading
Need help?

Need help?

Do you have a question about the YUNO-K170-BLACK and is the answer not in the manual?

Questions and answers

Summary of Contents for AURES YUNO-K170-BLACK

  • Page 1 USER’S MANUAL YUNO-K170-BLACK I ART-04550 Rev.D_OCT23...
  • Page 2 FCC Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 Safety IMPORTANT SAFETY INSTRUCTIONS To disconnect the machine from the electrical Power Supply, turn off the power switch and remove the power cable plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully.
  • Page 4: Table Of Contents

    Product Overview ....................3 Specification ......................4 How to start the module ..................6 How to Install YUNO board to YUNO-K170-BLACK ..........7 How to Install or Remove the Mylar ............... 8 Product Dimensions ....................9 Appendix A: Driver Install ..................10...
  • Page 5: Package Overview

    Package Overview YUNO-K170-BLACK Quick Start RJ-50 to DB-9M Cable Guide Mylar x 8 Thermal Pad Foam Tape Screw Gasket...
  • Page 6: Product Overview

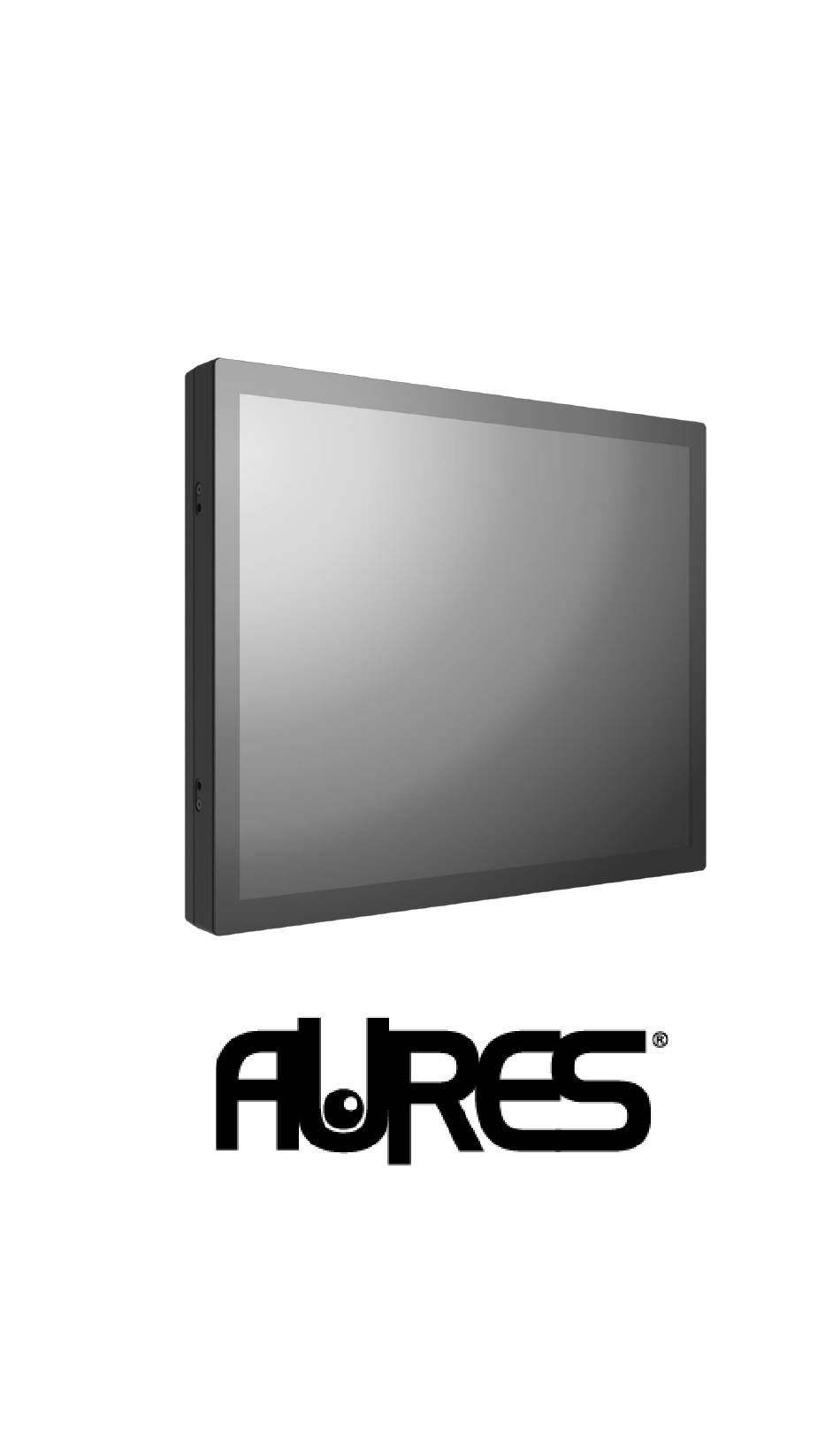

    Product Overview YUNO-K170-BLACK is a 17-inch panel PC designed for point of sale and kiosk applications. This product is of a modular design enabling easy maintenance. • Front View • Back View...
  • Page 7: Specification

    Specification Model Name YUNO-K170-BLACK Intel® Core™ Intel® Core™ i3-7100U Processor i3-5010U Processor (3M Cache, 2.40 GHz) Intel® Bay Trial-M SoC (3M Cache, 2.10 GHz) Intel® Core™ Processor J1900 CPU support Intel® Core™ i5-7300U Processor (2M Cache, up to 2.16 GHz) (3M Cache, 3.50 GHz)
  • Page 8 Power Power Adapter External 19V / 4.74A 90Watt Adapter Communication 2.4/5 GHz, 802.11ac, a/b/g, n Wireless LAN Wi-Fi Bluetooth Module (YUNO-WBM option) Certifications FCC Class B / CE / LVD / UL Environment Operating 0-35°C (32°F-95°F) Temperature Storage -20°C-60°C (-4°F-140°F) Temperature Humidity 20%-80% non-condensing...
  • Page 9: How To Start The Module

    How to start the module Remove the cover of module. Connect the DC adapter to the power connector on the module. Press the “Power Switch” button to ON/OFF the module. Add the cover to module.
  • Page 10: How To Install Yuno Board To Yuno-K170-Black

    How to Install YUNO board to YUNO-K170-BLACK The user must wait 10 minutes after turning off the device before changing the card.
  • Page 11: How To Install Or Remove The Mylar

    How to Install or Remove the Mylar The accessory box contains 8 covers. The covers can hide the 8 mounting holes (see below). To install a cover, simply place it on one of the holes. To remove a cover, use a pointed object to dislodge it.
  • Page 12: Product Dimensions

    Product Dimensions...
  • Page 13: Appendix A: Driver Install

    Appendix A: Driver Installation To download the most recent drivers and utilities, and obtain advice regarding the installation of your equipment, please visit the AURES Technical Support Website www.aures-support.com.
