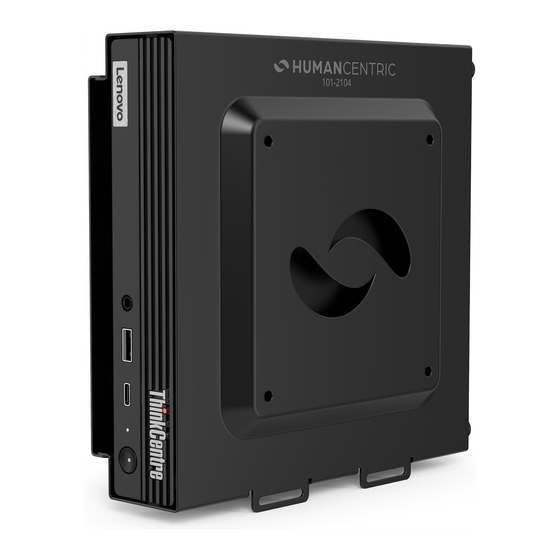

Dual VESA Sleeve for Lenovo ThinkCentre Tiny
Model 101-2104
Full product specifications: www.humancentric.com/101-2104
Need help? Contact support: support@humancentric.com
To reduce the risk of injury to persons, read all important precautions and warnings listed below. HumanCentric
assumes no responsibility for personal injury or property damage sustained by or through the use of this product:
1.
Read all instructions carefully.
2.
Incorrect installation may lead to damages or serious injury. Ensure the product is secured before use.
3.
Make sure the monitor mount that this product will be mounted to can support the combined weight of the
monitor, computer, and adapter.

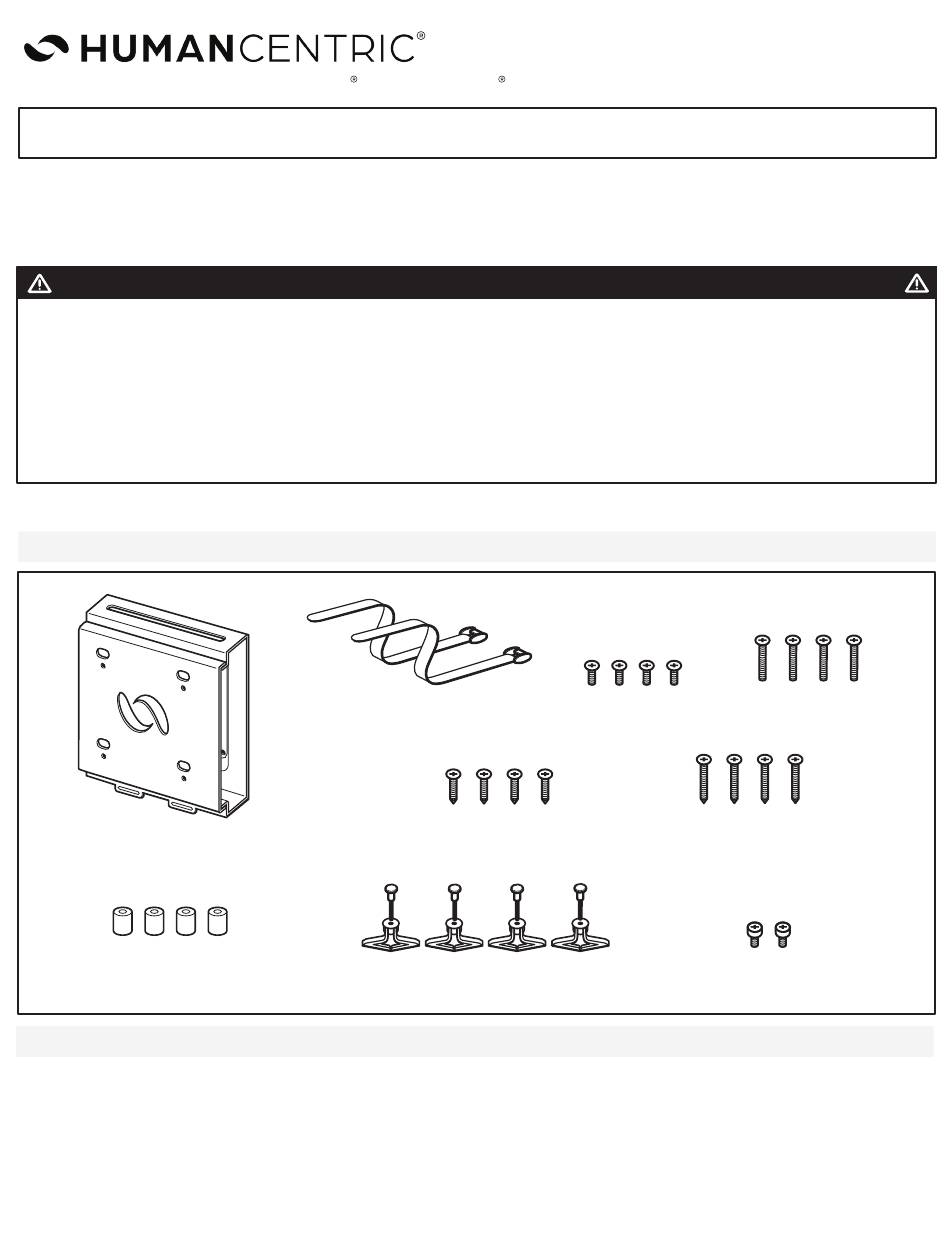

PARTS INCLUDED
A (x1)
Dual VESA Adapter
G (x4)
Spacer - 18mm
ADDITIONAL TOOLS REQUIRED
Pencil
Phillips Screw Driver
Drill
5/16" Drill bit
1/8" Drill Bit
© 2023 HumanCentric Ventures LLC
WARNING
B (x2)
M4 x 12mm Screw
Straps
E (x4)
M4 x 19mm Wood Screw
H (x4)
Drywall Anchor
www.humancentric.com/patents
C (x4)
D (x8)
M4 x 30mm Screw
F (x4)
M4 x 30mm Wood Screw
I (x2)
Thumb Screw
www.humancentric.com
Advertisement
Related Manuals for HumanCentric 101-2104
Summary of Contents for HumanCentric 101-2104
- Page 1 Need help? Contact support: support@humancentric.com WARNING To reduce the risk of injury to persons, read all important precautions and warnings listed below. HumanCentric assumes no responsibility for personal injury or property damage sustained by or through the use of this product: Read all instructions carefully.
-
Page 2: Monitor Arm Mounting
1A. MONITOR ARM MOUNTING For recessed VESA holes use spacers (G) and screws (D) MONITOR MONITOR © 2023 HumanCentric Ventures LLC www.humancentric.com... -
Page 3: Wall Mounting
1B. WALL MOUNTING Drywall USE 5/16” DRILL BIT Note: For help installing the drywall anchors, search "How to install Plastic Toggle Anchors" on YouTube Wood surface USE 1/8” DRILL BIT © 2023 HumanCentric Ventures LLC www.humancentric.com... -
Page 4: Under-Desk Mounting
1C. UNDER DESK MOUNTING USE 1/8” DRILL BIT 19mm(3/4”) Less than or more 19mm(3/4”) 2. SECURING DEVICE © 2023 HumanCentric Ventures LLC www.humancentric.com... - Page 5 3. SECURING POWER ADAPTER MONITOR ARM MOUNTING WALL MOUNTING UNDER DESK MOUNTING © 2023 HumanCentric Ventures LLC www.humancentric.com...
Need help?
Do you have a question about the 101-2104 and is the answer not in the manual?
