Universal Sound Bar Mount
Model 101-2009
www.humancentric.com/patents
Warning:
Confirm that the weight of the TV with the soundbar bracket and the soundbar does
not exceed the weight capacity limit of your TV mount before installing!

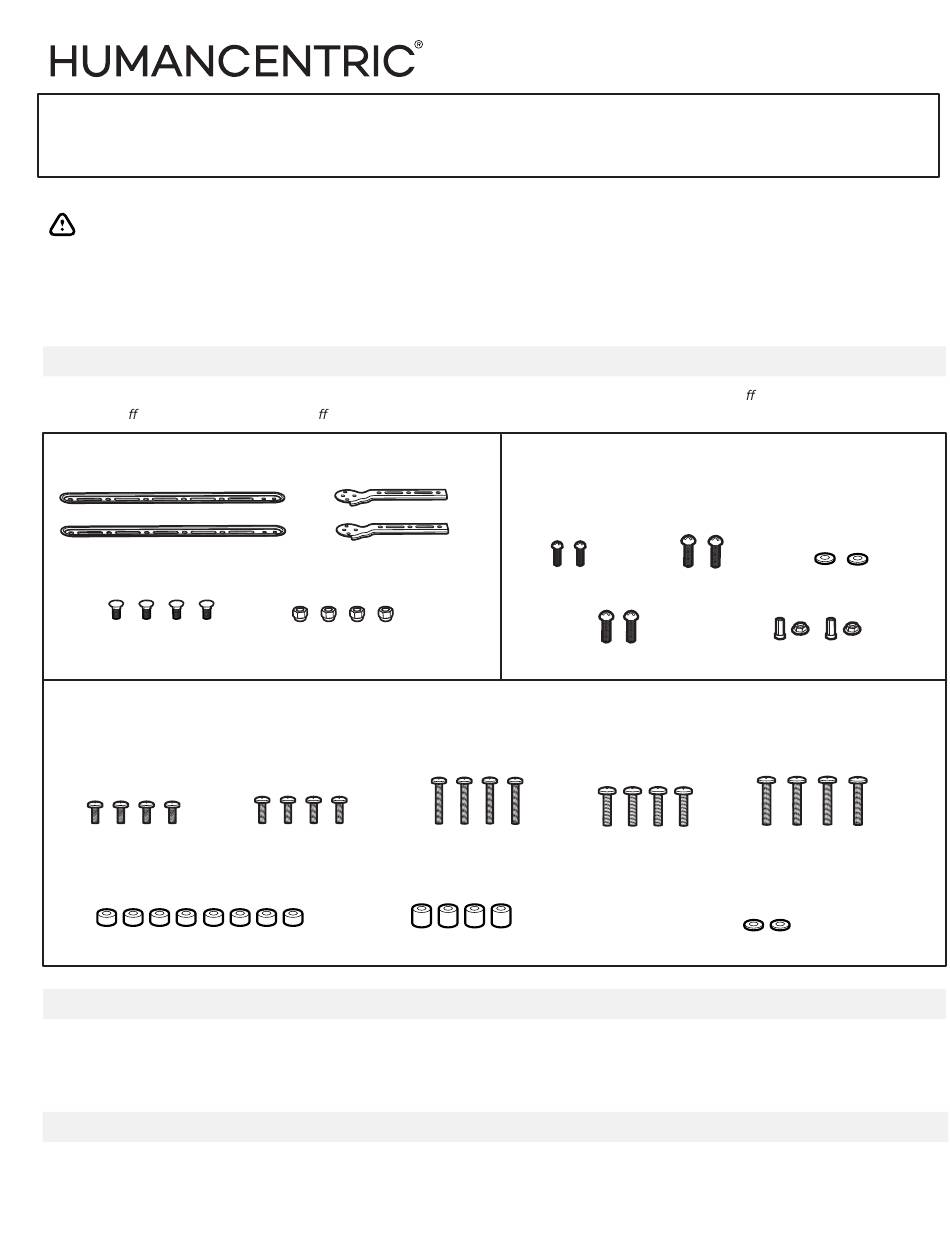

PARTS INCLUDED
Note: Not all parts will be used in the installation. Multiple configuration options are provided to fit di erent
TVs, and di erent parts are used for di erent configurations.
HARDWARE BAG 1:

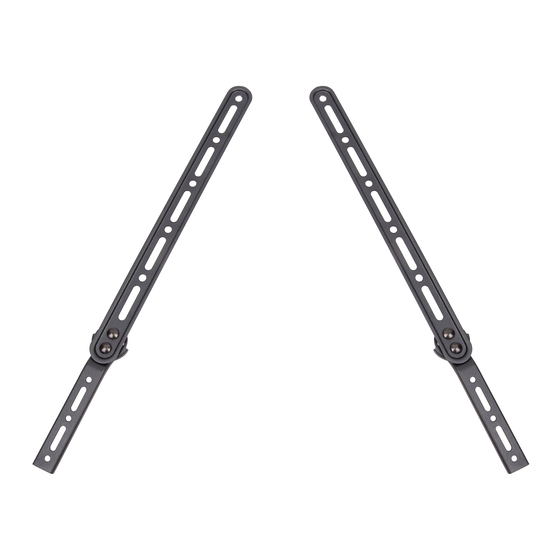

Soundbar brackets (2)
M6 bracket extension
bolts (4)
HARDWARE BAG 3:
TV Mount Attachment
(attaches soundbar bracket to TV mount)
Mounting screw options - choose one option based on TV hole size :
M6 x 14mm (4)
Mounting screw spacers - combine as needed to achieve proper spacing
Small Spacer (8)
ADDITIONAL TOOLS REQUIRED
Phillips Head Screwdriver
Adjustable Wrench
A friend to help!
COMPATIBLE WITH MODELS
Fits TVs with VESA patterns from 75mm x 75mm to 600mm x 400mm.
© 2017 HumanCentric Ventures LLC
Bracket extension arms (2)
M6 bracket extension
nuts (4)
M6 x 20mm (4)
M6 x 30mm (4)
Large Spacer (4)
HARDWARE BAG 2:
Soundbar Attachment
(attaches soundbar bracket to soundbar)
Choose one option based on soundbar attachment type
M4 screw (2)
M5 screw (2)
M6 screw (2)
M8 x 20mm (4)
M4 and M5 washers(2)
Soundbar peg and nut (2)
M8 x 30mm (4)
Flat spacing washer (2)
www.humancentric.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HumanCentric 101-2009
Summary of Contents for HumanCentric 101-2009
- Page 1 Large Spacer (4) Flat spacing washer (2) ADDITIONAL TOOLS REQUIRED Phillips Head Screwdriver Adjustable Wrench A friend to help! COMPATIBLE WITH MODELS Fits TVs with VESA patterns from 75mm x 75mm to 600mm x 400mm. © 2017 HumanCentric Ventures LLC www.humancentric.com...
- Page 2 Read the entire instruction manual, including the warnings at the end of the manual, before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact the HumanCentric support team for assistance at support@humancentric.com...
- Page 3 Align the holes in the soundbar bracket with the bottom set of VESA holes on the back of the TV. Then place the TV mounting bracket on top of the soundbar bracket. TV mounting brackets © 2017 HumanCentric Ventures LLC www.humancentric.com...
- Page 4 Check that the mount is secure and safe to use at regular intervals (at least every three months). HumanCentric intends to make this manual accurate and complete. However, HumanCentric makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product.
