HumanCentric 101-2082 Quick Installation Manual

Computer tower mount

Computer Tower Mount

Model 101-2082

Full product speciﬁcations: www.humancentric.com/101-2082

Need help? Contact support: support@humancentric.com

To reduce the risk of injury to persons, read all important precautions and warnings listed below.

HumanCentric assumes no responsibility for personal injury or property damage sustained by or through

the use of this product:

1. Read all instructions carefully.

2. Incorrect installation may lead to damage or serious injury. Ensure the product is secured before use.

3. Make sure the place that this product will be mounted to, either on a wall or under a desk, can support

the combined weight of the computer, and adapter.

Fits Devices:

• Width: 1.75" - 8" (Except devices 4.5" - 5.9" wide)

• Perimeter: 24" - 48"

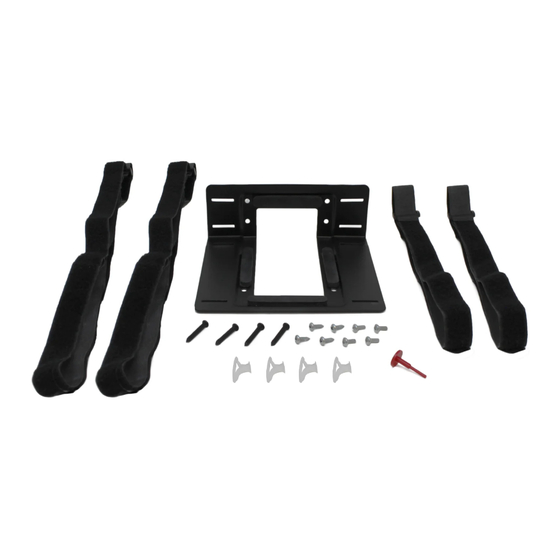

PARTS INCLUDED

A x1

WARNING

B x4

C x4

D x4

E x4

F x4

www.humancentric.com/patents

G x2

H x2

I x1

www.humancentric.com

Table of Contents

Need help?

Do you have a question about the 101-2082 and is the answer not in the manual?

Page 1 WARNING To reduce the risk of injury to persons, read all important precautions and warnings listed below. HumanCentric assumes no responsibility for personal injury or property damage sustained by or through the use of this product: 1. Read all instructions carefully.
Page 2 1. INSTALL RUBBER BUMPERS 2. CHOOSE MOUNTING OPTION WALL MOUNT UNDER DESK MOUNT FOR TOWERS > 1.75” WIDE FOR TOWERS 1.75” 4.5” WIDE FOR TOWERS 6” 8” WIDE © 2019 HumanCentric Ventures LLC www.humancentric.com...
Page 3 3. THREAD STRAPS Fit the bracket and the straps(select small or large straps) to your device before mounting to test the ﬁt. STANDARD THREADING Standard threading if device is same width as bracket or wider © 2023 HumanCentric Ventures LLC www.humancentric.com...
Page 4 3. THREAD STRAPS Alternate threading if device is narrower than bracket 2. 4. DEVICE MOUNTING 4A. DRYWALL MOUNT USE 5/16” DRILL BIT © 2023 HumanCentric Ventures LLC www.humancentric.com...
Page 5 Pro Tip: For best results, place the D ring between the device and the wall Note: Follow this procedure for VESA mounting using the VESA screws E or wood mounting with wood screws F 19mm(3/4”) Less than 4B. UNDER THE DESK or more 19mm(3/4”) USE 1/8” DRILL BIT © 2023 HumanCentric Ventures LLC www.humancentric.com...
