Under-Desk and Wall Mount for CPU / Computer Case
Model 101-2018
www.humancentric.com/patents

COMPATIBILITY INFORMATION

Weight capacity:
10kg (22lbs)

PARTS INCLUDED

Note: Not all parts will be used in the installation. Multiple configuration options are provided to fit di erent
TVs, and di erent parts are used for di erent configurations.

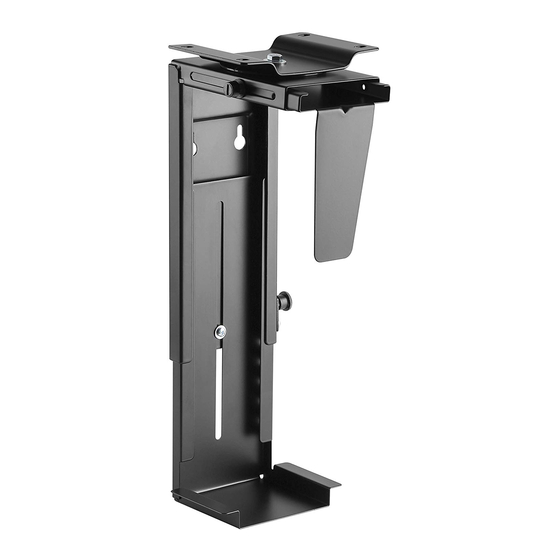

A Computer Case Holder

ADDITIONAL TOOLS REQUIRED

Phillips Head Screwdriver
Flat Head Screwdriver
Adjustable Wrench
Read the entire instruction manual, including the warnings at the end of the manual, before you start installation and assembly.
If you have any questions regarding any of the instructions or warnings, please contact the HumanCentric support team for
assistance at support@humancentric.com
Use with products heavier than the maximum weights indicated may result in damage to the mounted devices or
personal injury.
Ensure that you have received all parts according to the parts list prior to installation. If any parts are missing or
damaged, please contact the HumanCentric support team for replacements at support@humancentric.com
© 2017 HumanCentric Ventures LLC
Maximum Dimensions:
Width: 3.5" to 8" (88mm to 203mm)
Height 12" to 21" (300mm to 533mm)
B st4.8 (#10) x 16mm Self-Tapping Screw (4)
C st4.8 (#10) x 38mm Self-Tapping Screw (4)
D Plastic wall anchors (4)
For wall mounting :
Power drill with ¼" (wood stud) or ⅛" (concrete wall or block) drill bit
Level
Marking Pencil
CAUTION
IMPORTANT
E Felt pads (12)
F Washers (4)
G Allen Wrench
www.humancentric.com
1
