HumanCentric 101-4001 Manual

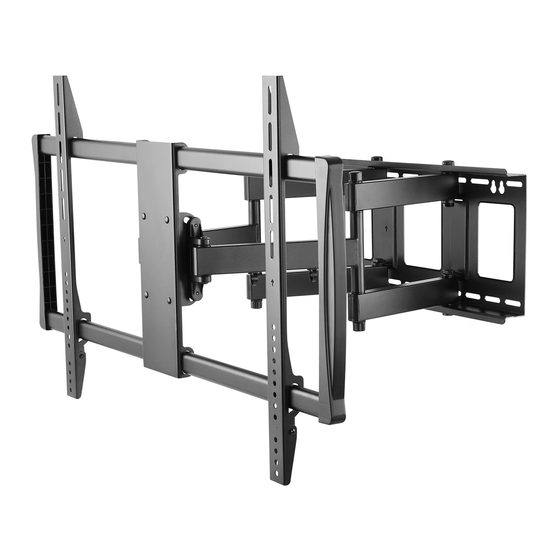

Wall Mount for 60"-100" curved & flat panel TVs up to 80kgs/176lbs
Model 101-4001
www.humancentric.com/patents

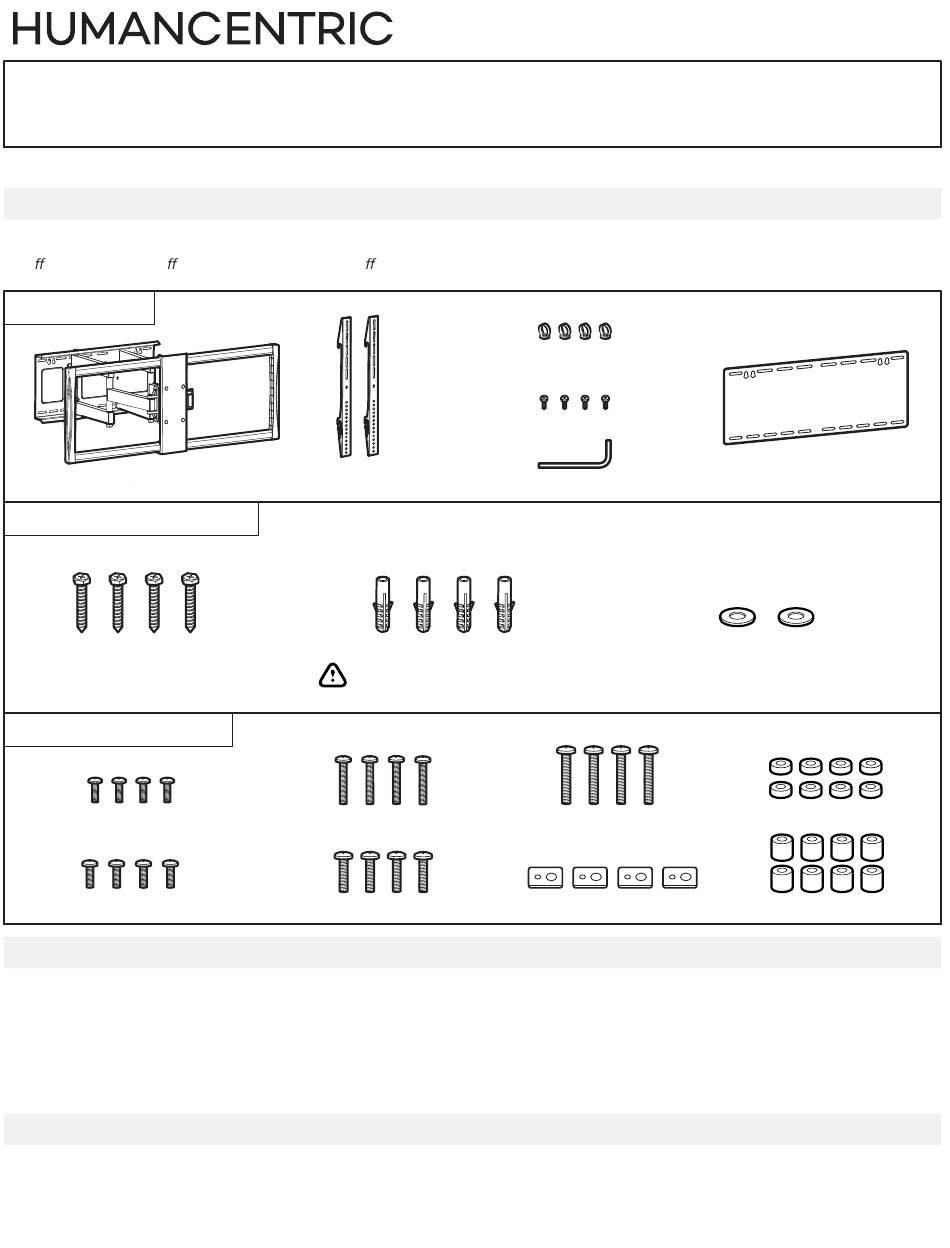

PARTS INCLUDED
Note: Not all parts will be used in the installation. Multiple configuration options are provided to fit
di erent TVs, and di erent parts are used for di erent configurations.
MOUNTING ARM
A Heavy-Duty Wall Mount (1)
WALL MOUNTING HARDWARE
W-A Wall Mounting Screws (4)
TV MOUNTING HARDWARE
M-A M5 x 14mm (4)
M-B M6 x 14mm (4)
ADDITIONAL TOOLS REQUIRED
Phillips Head Screwdriver
Power drill with ½" (12mm) bit (solid concrete or concrete block) or ¼" (6mm) bit (wood stud)
Level
Marking Pencil
Edge-finding stud locator (for stud wall mounting)
Masking tape (to plan mounting location)
A friend to help lift the TV
COMPATIBLE WITH MODELS
Fits TVs with VESA patterns:
200x200, 300x300, 400x200, 400x400, 600x400, 800x400, 800x600, 900x600
© 2017 HumanCentric Ventures LLC
B TV Mounting Brackets (2)
W-B Concrete Wall Anchors (4)
Warning: Not for use with drywall!
You will choose the appropriate option for your TV shape and size
M-C M6 x 30mm (4)
M-D M8 x 30mm (4)
C Cable Clips (4)
D M4 Cable Clip Screws (4)
E M4 Allen Wrench (1)
W-C Wall Mounting Washers for Bottom Holes (2)
M-E M8 x 50mm (4)
M-F Metal Spacers (4)
F Drilling template (1)
M-G Small Spacer (8)
M-H Large Spacer (8)
www.humancentric.com
1
