HumanCentric 101-2092 Quick Start Manual

Sonos arc mount

Download this manual

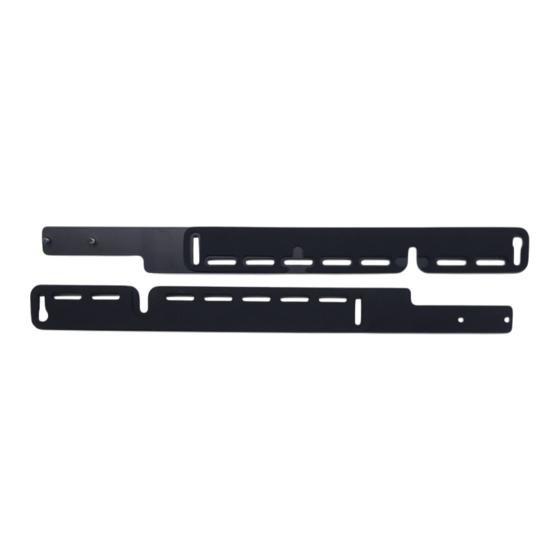

Sonos Arc Mount

Model 101-2092

Full product speciﬁcations: www.humancentric.com/101-2092

Need help? Contact support: support@humancentric.com

To reduce the risk of injury to persons, read all important precautions and warnings listed below.

HumanCentric assumes no responsibility for personal injury or property damage sustained by or through

the use of this product:

1. Read all instructions carefully.

2. Incorrect installation may lead to damage or serious injury. Ensure the product is secured before use.

3. When mounting it on the wall, ensure it can support the combined weight of the bracket and the

mounted device.

PARTS INCLUDED

A(x1)

B(x1)

TOOLS NEEDED FOR INSTALLATION

Pencil

Levels

Phillips Head Screwdriver

WARNING

C(x2)

D(x2)

G(x4)

1.5" long

www.humancentric.com/patents

E(x2)

F(x2)

1" long

H(x2)

www.humancentric.com

I(x1)

Need help?

Do you have a question about the 101-2092 and is the answer not in the manual?

Page 1 WARNING To reduce the risk of injury to persons, read all important precautions and warnings listed below. HumanCentric assumes no responsibility for personal injury or property damage sustained by or through the use of this product: 1. Read all instructions carefully.
Page 2 IMPORTANT NOTE: If your TV is wall mounted, there should be 5.5" (140 mm) between the top of the wall mount bracket and the bottom of the TV. 5.5”(140mm) © 2023 HumanCentric Ventures LLC www.humancentric.com...
Page 3 STUD/SOLID WALL MOUNT USE 3/32” DRILL BIT WARNING: Do not over tighten the screws. Over tightening will cause the end of the bracket to move away from the wall. © 2023 HumanCentric Ventures LLC www.humancentric.com...
Page 4 WARNING: Do not over tighten the screws. Over tightening will cause the end of the bracket to move away from the wall. NOTE: For help installing the drywall anchors, search "How to install Plastic Toggle Anchors" on YouTube © 2023 HumanCentric Ventures LLC www.humancentric.com...
