BREAD SLICER
Kasap Tip Dik Buzdolapları
CONTENTS
Page
2
Page
3
Page
3
Page
4
Page
4
Page
4
Page
5
Page
6
Page
7
Page
8
Page
9
Page
13
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMP.3001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMPERO EMP.3001

Summary of Contents for EMPERO EMP.3001

  • Page 1: Table Of Contents

    BREAD SLICER Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page...

  • Page 2: Ageneral Information

    BREAD SLICER Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty.

  • Page 3: A1 Product Description

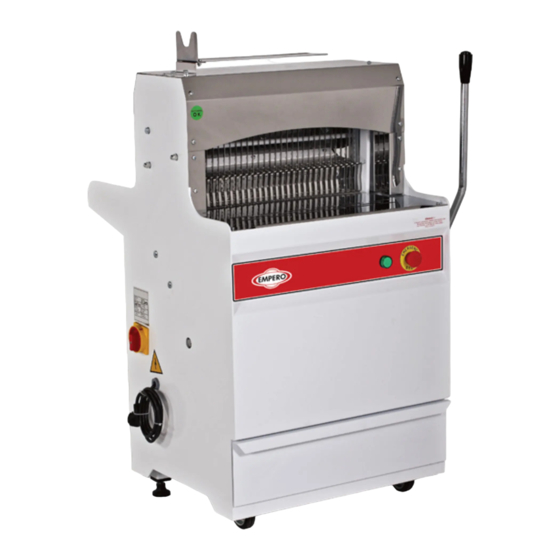

    Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Bread Slicer ,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.3001 717x686x1140 760x760x1200 EMP.3002 717x686x1140 760x760x1200 EMP.3004 733x643x682 780x710x820...

  • Page 4: A3 Transportation

    BREAD SLICER TRANSPORTATION Kasap Tip Dik Buzdolapları *This appliance can be moved by hand from area to area.Do not crash and drop the appliance while transporting. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol.

  • Page 5: Csafety Instructions

    BREAD SLICER Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ...

  • Page 6: Doperation

    BREAD SLICER OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Signal lamp B : Urgent STOP button C : Switch OFF position D : Switch ON position *Operating; • Clean the bread tank and blade with wet cloth. • Switch to (l) position.

  • Page 7: Ecleaning & Maintenance

    BREAD SLICER Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Always turn off the appliance and disconnect from the power supply before cleaning. • Clean the outer surface of the appliance ,tank and cutting blades with wet cloth and then dry.

  • Page 8: Ftroubleshooting

    BREAD SLICER TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. Check the electrical connections and THE APPLIANCE DOESN’T OPERATE voltage. If the URGENT STOP button is pressed,the appliance doesn’t operate. If the spring of pushing handle is THE BREAD SLICES DON’T GO OUT broken,it can not move forward and back and the slices don’t go out.

  • Page 9: Gspare Part List-Exploding Drawing

    BREAD SLICER Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.3001-10-13-16 EMP.3002...
  • Page 10 BREAD SLICER SPARE PART LIST-EXPLODING DRAWING EMP.3001-10-13-16 3002 PRODUCT CODE : Kasap Tip Dik Buzdolapları PRODUCT NAME P.CODE L5K13M1P311 SWITCH ERS.M.ELK-SWC-EMAS-001 SWITCH M.ELK-SLT-MK-001 GREEN LED SIGNAL M.ELK-LED-LMB-002 EMERGENCY STOP BUTTON M.ELK-SLT-BTL-003 PANEL GROUP M.ELK-KD-EDM-001 DRAWER FRAME WHEEL M.AKS-TKR-KN-002 ROLLER FOOT ERS.M.AKS-AYK-RTL-001...
  • Page 11 BREAD SLICER Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.3004-10-13-16...
  • Page 12 BREAD SLICER SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE : EMP.3004-10-16 PRODUCT NAME P.CODE GLASSES SMALL YMH-ERS.EDM-FSM-0004 HANGER PIN YTL-ERS.EDM-KS-0019 BEARING ( 6202 2RS ) M.RLM-NRM-003 FIXED PIN YTL-ERS.EDM-KS-0018 SLICING KNIFE M.BCK-BED-002 KNIFE TENSIONING SHEET YSC-ERS.EDM-LZ-0027 TAPE ARA-ERS.EDM-0010 EMERGENCY STOP BUTTON M.ELK-SLT-BTL-003...

  • Page 13: Helectric Circuit Schema

    BREAD SLICER Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA PRODUCT CODE VOLTAGE EMP.3001 0,37 1400 EMP.3002 0,37 1400 EMP.3004 0,37 1400 (0-1) Monophase Mechanic URGENT STOP Motor Signal Lamp PAKO Switch Switch...
