ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Ageneral Information
ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

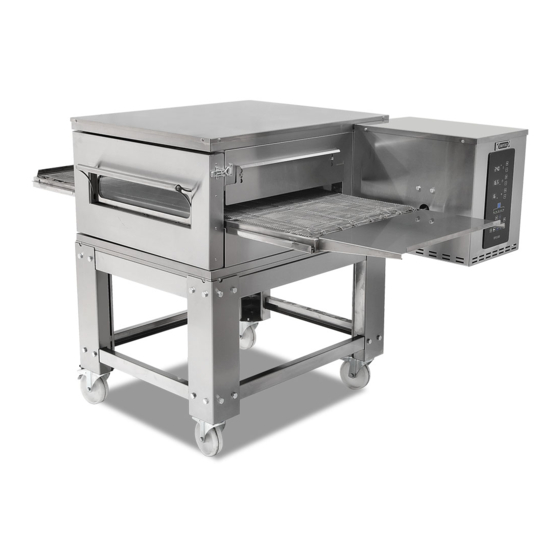

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Pizza Ovens (Electric) ,that provides high efficiency has been designed to be used in industrial kitchen. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.50E-1340 1710x1146x452 1770x1206x630 EMP.60E-1530 1965x1236x452 1830x1280x630 TECHNICAL INFORMATION Electric Cable... -
Page 4: Binstallation
ELECTRIC CONVEYOR PIZZA OVENS INSTALLATION Kasap Tip Dik Buzdolapları *Please place the product to straight and sturdy ground,please take necessary steps against possibility of overturn. *Technician who will serve for installation and service for the appliance must be professional on this subject and must have installation and service licenses by the company. *Connection to Electric Power Supply must be done by authorized person. -
Page 5: Csafety Instructions
ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials.The ... -
Page 6: Doperation
ELECTRIC CONVEYOR PIZZA OVENS OPERATION Kasap Tip Dik Buzdolapları * Control Panel: OFF MODE SCREEN AMBIENT TEMPERATURE PANEL ON / OFF... - Page 7 ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları *Use of MAIN MENU MANUEL COOKING If you want to cook manually, click here. RECEIPT If you want to cook a recipe or create a recipe, click here. ON / OFF BUTTONU Click here to turn the device on or off.
- Page 8 ELECTRIC CONVEYOR PIZZA OVENS COOKING SCREEN Kasap Tip Dik Buzdolapları ON / OFF BUTTONU If this button is clicked, cooking ends, the oven turns off and returns to the main menu. TEMPERATURE The instantaneous temperature of the furnace, the set value and the status of the heaters are displayed here.
- Page 9 ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları RECEIPT COOKING SCREEN RECEIPT NAME If this button is clicked, cooking ends, the oven turns off and returns to the main menu. RECEIPT IMAGE Recipe photo can be edited by clicking here.
-
Page 10: Ecleaning & Maintenance
ELECTRIC CONVEYOR PIZZA OVENS CLEANING & MAINTENANCE Kasap Tip Dik Buzdolapları ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Always turn off the appliance and disconnect from the power supply before cleaning. • Clean the inside of the oven with soft cloth by using oil solvent spray,before the appliance gets cooled exactly. -
Page 11: Ftroubleshooting
ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları TROUBLESHOOTING Check if the appliance is plugged in. Check the electrical connections and THE APPLIANCE DOESN’T OPERATE voltage. Check if the fuse is on or off. Check the resistances. Check the heat settings. THE APPLIANCE DOESN’T COOK WELL Do not overload the oven. -
Page 12: Gspare Part List- Exploding Drawing
ELECTRIC CONVEYOR PIZZA OVENS SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları EMP.50E-1340... - Page 13 ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE: EMP.50E-1340 PRODUCT NAME P.CODE CONVEYOR SHAFT LOCATION YTL-KNX.EPZ-KS-0031 SPRING PART YTL-KNX.EPZ-KS-0030 SPRING Ø 29*1.6 M.YAY-MUH-009 86MC45-S 4.5 NM STEP ENGINE M.ELK-MTR-PZ-001 3X50A SSR RELAY JP.M.ELK-KNT-ROL-010 FAN 120*120*38 220V AC M.ELK-HVL-KFN-004...
- Page 14 ELECTRIC CONVEYOR PIZZA OVENS SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları EMP.60E-1530...
- Page 15 ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE: EMP.60E-1530 PRODUCT NAME P.CODE ENGINE SHEET YSC-KNX.EPZ-PN-0606 3000 RPM -250W ENGINE JP.M.ELK-MTR-FMT-014 ENGINE CONNECTION BUSH YTL-KNX.EPZ-KS-0026 FLANGE SHEET YSC-KNX.EPZ-LZ-0157 ENGINE CENTERING BUSH YTL-KNX.EPZ-KS-0027 COVER SHEET YSC-KNX.EPZ-LZ-0154 FAN SHEET YSC-KNX.EPZ-LZ-0185...
-
Page 16: Product Name
ELECTRIC CONVEYOR PIZZA OVENS SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları P.CODE: EMP.50E-1340-AS PRODUCT NAME P.CODE TIE SHEET YSC-KNX.EPZ-LZ-0166 CHASSIS CORNER SHEET YSC-KNX.EPZ-LZ-0163 WHEEL WITH BRAKE JP.M.AKS-TKR-PSF-008... - Page 17 ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS P.CODE: EMP.60E-1530-AS PRODUCT NAME P.CODE TIE SHEET YSC-KNX.GPZ-LZ-0124 CHASSIS CORNER POLE SHEET YSC-KNX.GPZ-LZ-0127 WHEEL WITH BRAKE JP.M.AKS-TKR-PSF-008...
-
Page 18: Helectric Circuit Schema
ELECTRIC CONVEYOR PIZZA OVENS ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları... - Page 19 ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları Digital Display Connector Ignition Card Step Motor Driver Step Motor Power Supply Fuse 4A Glass Fuse Limit Thermostat Cooling fan Contactor Circulation Engine Fuse 25A Contactor Rezistans...
- Page 20 ELECTRIC CONVEYOR PIZZA OVENS ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları...
- Page 21 ELECTRIC CONVEYOR PIZZA OVENS Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA...
