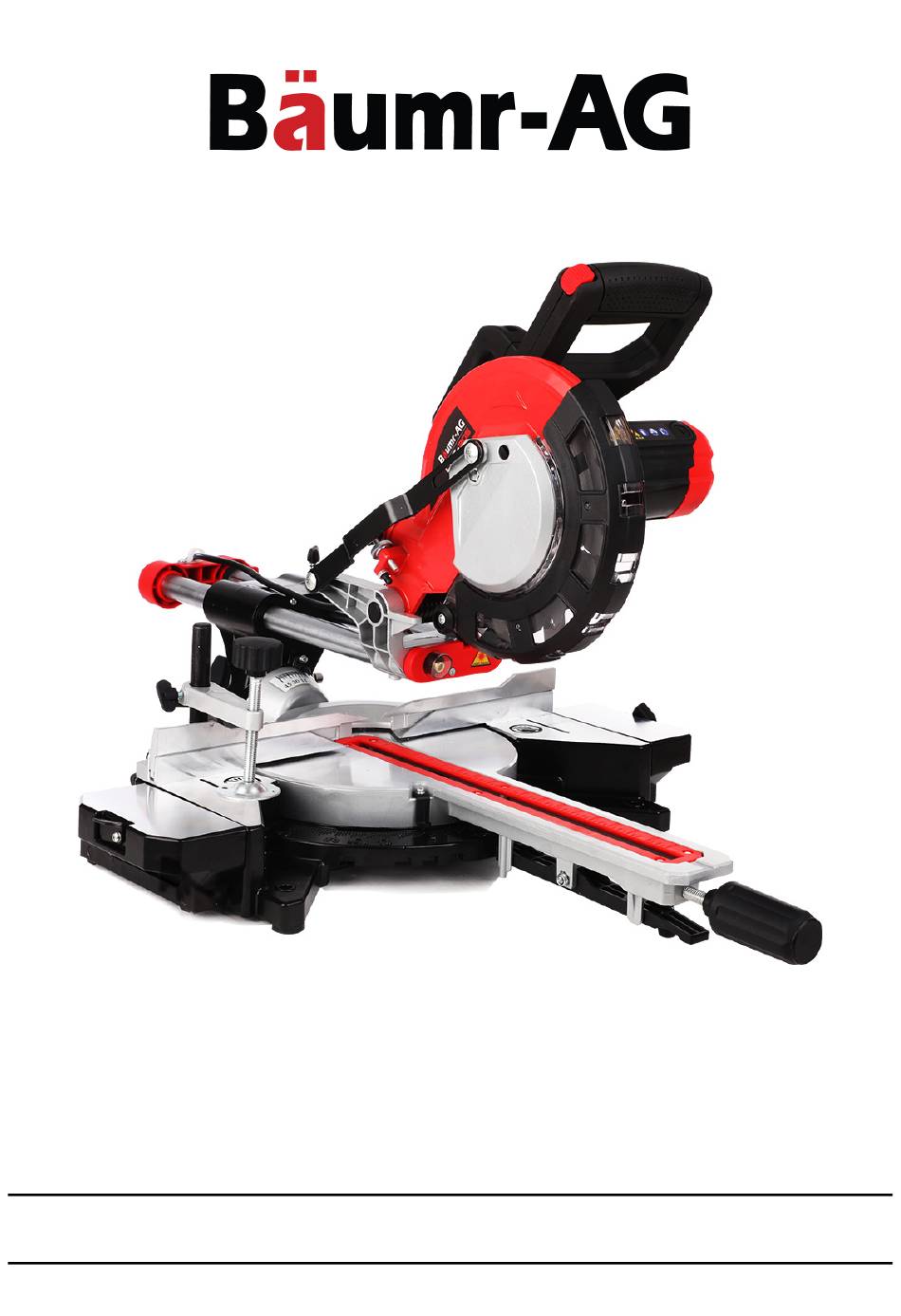

Compound Mitre Saw – CMS-305
User Manual
[Revision 1.0 February 2019]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2019 Baumr-AG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMS-305 and is the answer not in the manual?

Questions and answers

michael
June 27, 2025

Contacting storeto purchase item

0

Related Manuals for Baumr-AG CMS-305

Summary of Contents for Baumr-AG CMS-305

  • Page 1 Compound Mitre Saw – CMS-305 User Manual [Revision 1.0 February 2019] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

  • Page 2: Safety

    Compound Mitre Saw – CMS-305 Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or...
  • Page 3 Compound Mitre Saw – CMS-305 General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must have • The equipment must be serviced or cords, power bars, and electrical fittings for an approved cord and plug and be repaired at authorised service centres by damage or wear before each use.
  • Page 4 Compound Mitre Saw – CMS-305 Electric Safety • The plug of the power tool must fit into the socket. Do not modify the plug in any way. Do not use adapter plugs together with grounded power tools. Unmodified plugs and matching sockets reduce the risk of electric shock.
  • Page 5 Compound Mitre Saw – CMS-305 • Push the saw through the workpiece. Do not pull the saw through the workpiece. To make a cut, raise the saw head and pull it out over the workpiece without cutting, start the motor, press the saw head down and push the saw through the workpiece. Cutting on the pull stroke is likely to cause the saw blade to climb on top of the workpiece and violently throw the blade assembly towards the operator.
  • Page 6 Compound Mitre Saw – CMS-305 • Replace table inserts when worn! • Avoid overheating of the saw teeth. • When sawing plastic, avoid melting of the plastic. Use the appropriate saw blades for this purpose. Replace damaged or worn saw blades immediately.
  • Page 7 Compound Mitre Saw – CMS-305 • Insulation damage due to being ripped out of the wall outlet. • Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

  • Page 8: Safety Symbols

    Compound Mitre Saw – CMS-305 Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them. Flammable Material Hazard...
  • Page 9 Compound Mitre Saw – CMS-305 Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the product Do NOT attempt "slam dunk" confined areas or without...

  • Page 10: Table Of Contents

    Compound Mitre Saw – CMS-305 Table of Contents Safety................................2 Safety Symbols ................................ 8 Table of Figures ............................11 Parts Identification............................14 Before Starting the Equipment ........................15 Checking the Moving Saw Blade Guard Safety Device ..................15 Check Function ..............................15 Attachment and Operation ..........................

  • Page 11: Table Of Figures

    Compound Mitre Saw – CMS-305 Table of Figures E&OE © 2019 Baumr-AG...
  • Page 12 Compound Mitre Saw – CMS-305 E&OE © 2019 Baumr-AG...
  • Page 13 Compound Mitre Saw – CMS-305 E&OE © 2019 Baumr-AG...

  • Page 14: Parts Identification

    Compound Mitre Saw – CMS-305 Parts Identification Please refer to Table of Figures Name Name Handle Pointer ON/OFF switch Set screw for drag guide Lock switch Drag guide Machine head Set screw Moving saw blade guard Locking bolt Saw blade...

  • Page 15: Before Starting The Equipment

    Compound Mitre Saw – CMS-305 Before Starting the Equipment • Open the packaging and remove the device carefully. • Remove the packaging material as well as the packaging and transport bracing (if available). • Check that the delivery is complete.

  • Page 16: Attachment And Operation

    Compound Mitre Saw – CMS-305 Attachment and Operation Attaching the Crosscut, Drag and Mitre Saw Please refer to figures 1, 2, 4 and 5. E&OE © 2019 Baumr-AG...
  • Page 17 Compound Mitre Saw – CMS-305 1. In order to adjust the rotary table (14), loosen the handle (11) approximately 2 turns and pull up the latched position lever (35) with your index finger. 2. Turn the rotary table (14) and pointer (12) to the desired angle measurement on the scale (13) and use the handle (11) to secure it.

  • Page 18: Precision Adjustment Of The Stop For Crosscut 90

    Compound Mitre Saw – CMS-305 Precision Adjustment of the Stop for Crosscut 90° Please refer to figures 1, 2, 5 and 6. E&OE © 2019 Baumr-AG...
  • Page 19 Compound Mitre Saw – CMS-305 No stop angle included. 1. Lower the machine head (4) and secure it using the locking bolt (23). 2. Loosen the set screw (22). 3. Position the angle stop (A) between the saw blade (6) and the rotary table (14).

  • Page 20: Crosscut 90° And Turntable

    Compound Mitre Saw – CMS-305 Crosscut 90° and Turntable 0° Please refer to figures 1, 2, and 7. E&OE © 2019 Baumr-AG...
  • Page 21 Compound Mitre Saw – CMS-305 In the case of cutting widths up to approx. 100 mm it is possible to fix the traction function of the saw with the set screw (20) in the rear position. In this position the machine can be operated in cross cutting mode. If the cutting width is over 100 mm then it is necessary to ensure that the set screw (20) is loose and the machine head (4) can move.

  • Page 22: Crosscut 90° And Turntable 0

    Compound Mitre Saw – CMS-305 Crosscut 90° and Turntable 0° - 45° Please refer to figures 1, 7, 8. E&OE © 2019 Baumr-AG...
  • Page 23 Compound Mitre Saw – CMS-305 The crosscut, drag and mitre saw can be used to make crosscuts of 0° -45° to the left and 0° -45° to the right in relation to the stop rail. Important! For 90° crosscuts, the moveable stop rail (16a) must be fixed in the inner position.

  • Page 24: Precision Adjustment Of The Stop For Mitre Cut 45

    Compound Mitre Saw – CMS-305 Precision Adjustment of the Stop for Mitre Cut 45° Please refer to figures 1, 2, 5, 9 and 10. E&OE © 2019 Baumr-AG...
  • Page 25 Compound Mitre Saw – CMS-305 No stop angle included. 1. Lower the machine head (4) and secure it using the locking bolt (23). 2. Fix the rotary table (14) in the 0° position. ATTENTION! For mitre cuts (inclined saw head), the left side of the moveable stop rails (16a) must be fixed in the outer position.
  • Page 26 Compound Mitre Saw – CMS-305 Mitre Cut 0°- 45° and Turntable 0° Please refer to figures 1, 2 and 11. The crosscut, drag and mitre saw can be used to make mitre cuts of 0° - 45° in relation to the work face.

  • Page 27: Mitre Cut 0°- 45° And Turntable 0

    Compound Mitre Saw – CMS-305 3. The right side of the moveable stop rails (16a) must be in the inner position. 4. Before making a cut, check that the stop rail (16a) and the saw blade (6) cannot collide. 5. Secure the set screw (16b) again.

  • Page 28: Limiting The Cutting Depth

    Compound Mitre Saw – CMS-305 2. The moveable stop rail (16a) must be fixed far enough in front of the innermost position that the distance between the stop rail (16a) and the saw blade (6) amounts to a minimum of 8 mm.

  • Page 29: Sawdust Bag

    Compound Mitre Saw – CMS-305 Sawdust Bag Please refer to figures 1 and 22. The saw is equipped with a debris bag (17) for sawdust and chips. 1. Squeeze together the metal ring on the dust bag and attach it to the outlet opening in the motor area.

  • Page 30: Connection To An External Dust Extractor

    Compound Mitre Saw – CMS-305 Connection to an External Dust Extractor For dust extraction, a vacuum hose can also be connected to the dust extraction spout. 1. Connect the vacuum hose with the dust extraction spout. 2. The industrial vacuum cleaner must be suitable for the material being worked.
  • Page 31 Compound Mitre Saw – CMS-305 1. Swing the machine head (4) upwards and lock with the locking bolt (23). 2. Loosen the retaining screw (5a) of the cover using a screwdriver. WARNING! Do not fully remove this screw. 3. Fold the saw blade guard (5) upwards until the saw blade guard (5) is above the flange screw (28).

  • Page 32: Using The Laser

    Compound Mitre Saw – CMS-305 IMPORTANT! The work to change and align the saw blade (6) must be carried out correctly. Using the Laser Please refer to figure 18. 1. To switch ON: Press the ON/OFF switch laser (33) 1x. A laser line is projected onto the material you wish to process, providing an exact guide for the cut.

  • Page 33: Maintenance, Transport And Storage

    Compound Mitre Saw – CMS-305 Maintenance, Transport and Storage WARNING! Prior to any adjustment, maintenance or service work, disconnect the mains power plug! General Maintenance Measures Wipe chips and dust off the machine from time to time using a cloth. In order to extend the service life of the tool, oil the rotary parts once monthly.

  • Page 34: Storage

    Compound Mitre Saw – CMS-305 Storage • Store the device and its accessories in a dark, dry and frost proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30˚C. • Store the electrical tool in its original packaging.

  • Page 35: Troubleshooting

    Compound Mitre Saw – CMS-305 Troubleshooting Fault Possible Cause Remedy Arrange for inspection of the machine by a specialist. Motor, cable or plug defective, Never repair the motor yourself. DANGER! Motor does not work fuses burnt. Check fuses and replace as necessary The motor starts up slowly Contact the utility provider to check the voltage.

  • Page 36: Specifications

    Compound Mitre Saw – CMS-305 Specifications Model CMS-305 Rated Power 2000W No-load Speed 5800 rpm Blade Diameter 210mm Blade Teeth Swivel Range ±45° Bevel Tilt Range 0° - 45° to the left 0°/90°: 340 x 65mm Cutting Capacity 0°/45°: 240 x 40mm...
  • Page 37 ©2019 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
