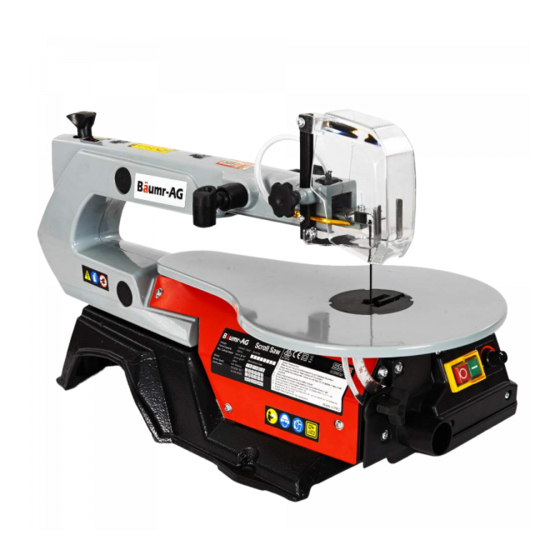

Scroll Saw - SS16 Series II
User Manual
[Revision 2.0 September 2019]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2019 Baumr-AG
Advertisement
Table of Contents
Related Manuals for Baumr-AG SS16 II Series
Summary of Contents for Baumr-AG SS16 II Series
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE © 2019 Baumr-AG...
-
Page 2: Safety
• Use combustion engines OUTSIDE only, • If devices are provided for connecting dust and far away from windows, doors and extraction / collection facilities, ensure vents. these are connected and used properly. Dust collection can reduce dust-related hazards. E&OE © 2019 Baumr-AG... - Page 3 A wrench or a key that is left attached to a rotating part of the machine may result in personal injury. Avoid accidental starting. Be sure the motor switch is off before transporting the machine or performing any maintenance or service on the unit. E&OE © 2019 Baumr-AG...
- Page 4 • Do not perform layout, assembly or set up work on the table while the cutting tool is in operation. • Never turn your scroll saw on before clearing the table of all objects: (tools, scraps of wood, etc) except for the workpiece and related feed or support devices for the operation planned. E&OE © 2019 Baumr-AG...
- Page 5 • Do not force the machine unnecessarily: excessive cutting pressure may lead to rapid deterioration of the blade and a decrease in performance in terms of finish and cutting precision. • Avoid accidental starts: do not press the start button while inserting the plug into the socket. E&OE © 2019 Baumr-AG...
-
Page 6: Safety Symbols
Wear appropriate clothing Always wait for moving parts to fingers, limbs, blood etc. Take and protective devices. stop fully before handling the due care when handling and product, adjusting, maintenance using the product. etc. E&OE © 2019 Baumr-AG... - Page 7 Carry hook to load – do NOT Wear appropriate eye protection Laser may be in use – do NOT throw or run. for welding. Direct exposure to look directly at laser or allow weld arcs may cause permanent others to. eye injury. E&OE © 2019 Baumr-AG...
-
Page 8: Table Of Contents
Changing the Saw Blade with Pins ........................... 17 Changing the flat saw-blade (Optional Feature 3 & 4) ..................... 18 Lubrication ................................19 Carbon Brushes Inspection ............................20 Storage ..................................20 Troubleshooting ............................21 Specifications ............................22 E&OE © 2019 Baumr-AG... -
Page 9: Parts Identification
Flexible Shaft with Drill Chuck (Optional Feature #1) Foot Switch (Optional Feature #2) Saw-blade Adapter & Allen Wrench (Optional Feature #3) Flat Saw-blade (Optional Feature #4) Please note that the optional features are not included with this unit. E&OE © 2019 Baumr-AG... -
Page 10: Know Your Machine
Scroll Saw - SS16 Series II Know Your Machine E&OE © 2019 Baumr-AG... -
Page 11: Operation
A foam rubber base for reduction of noise is not supplied with the saw either. However, we expressly recommend that you use such a base to keep vibration and noise to a minimum. Ideal size 400 × 240 mm. E&OE © 2019 Baumr-AG... -
Page 12: Setting The Saw Bench
The saw bench can be positioned into a 45° diagonal position or be left in the horizontal position. You can read off the approximate slope angle by using the angle scale located under the work bench. For more exact adjustment, use scrap wood for some saw tests; adjust the bench if necessary. E&OE © 2019 Baumr-AG... - Page 13 Try and make sure that the saw blade follows the grain of the wood in order to obtain a clean cut. • The saw speed must be reduced to minimum when cutting precious and non-ferrous metals. E&OE © 2019 Baumr-AG...
-
Page 14: Inside Cuts
With the continuously variable electronic speed control, the cutting speed can be increased by turning to the right or reduced by turning to the left. Lighting System The lighting system can be switched on by pressing the red "O" button. E&OE © 2019 Baumr-AG... -
Page 15: Flexible Shaft (Optional Feature 1)
Firmly hold threaded shaft at the handle and switch on the speed control. • Having finished the work, remove the flexible shaft and place the protective cap in place. When working with the flexible shaft, cover the saw blade with the blade guard. E&OE © 2019 Baumr-AG... -
Page 16: Foot Switch (Optional Feature 2)
Attention! Never leave the machine unattended while it is switched on. With the continuously variable electronic speed control, the cutting speed can be increased by turning to the right or reduced by turning to the left. E&OE © 2019 Baumr-AG... -
Page 17: Maintenance And Storage
Slightly press the upper arm down. Check the position of the blade pins at the supports. Tighten the blade by means of the Clamping screw. Check the blade's tightness. Keep on rotating clockwise in order to tighten the blade even more. E&OE © 2019 Baumr-AG... -
Page 18: Changing The Flat Saw-Blade (Optional Feature 3 & 4)
Slight press the upper arm down before hooking it in. 7. Tighten the blade with the tightening screw by rotating it clockwise. Check the tightness of the blade. Keep on rotating clockwise in order to tighten the blade even more. E&OE © 2019 Baumr-AG... -
Page 19: Lubrication
2. Apply a generous amount of SAE 20 oil to the shaft end and bronze bearings. 3. Let the lubricant oil work in overnight. 4. Repeat the procedure the next day on the other side of the saw. E&OE © 2019 Baumr-AG... -
Page 20: Carbon Brushes Inspection
Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C. Store the electric tool in its original packaging. Cover the electric tool in order to protect it from dust and moisture. E&OE © 2019 Baumr-AG... -
Page 21: Troubleshooting
Loosen the screws with which the holders are Saw blade swings out., holders Holders not aligned fastened to the arm. Align the holders so that they are not aligned straight perpendicular to each other and retighten the screws E&OE © 2019 Baumr-AG... -
Page 22: Specifications
Scroll Saw - SS16 Series II Specifications Motor 240V / 50Hz Variable Speed Control 550-1650 SPM Throat Depth 16” Table Size 255x415 mm Blades 5” Pinned Blade Length 127mm Cutting Depth 50mm Table Tilt 0° to 45° Note: Minimal Assembly required E&OE © 2019 Baumr-AG... - Page 23 ©2019 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
