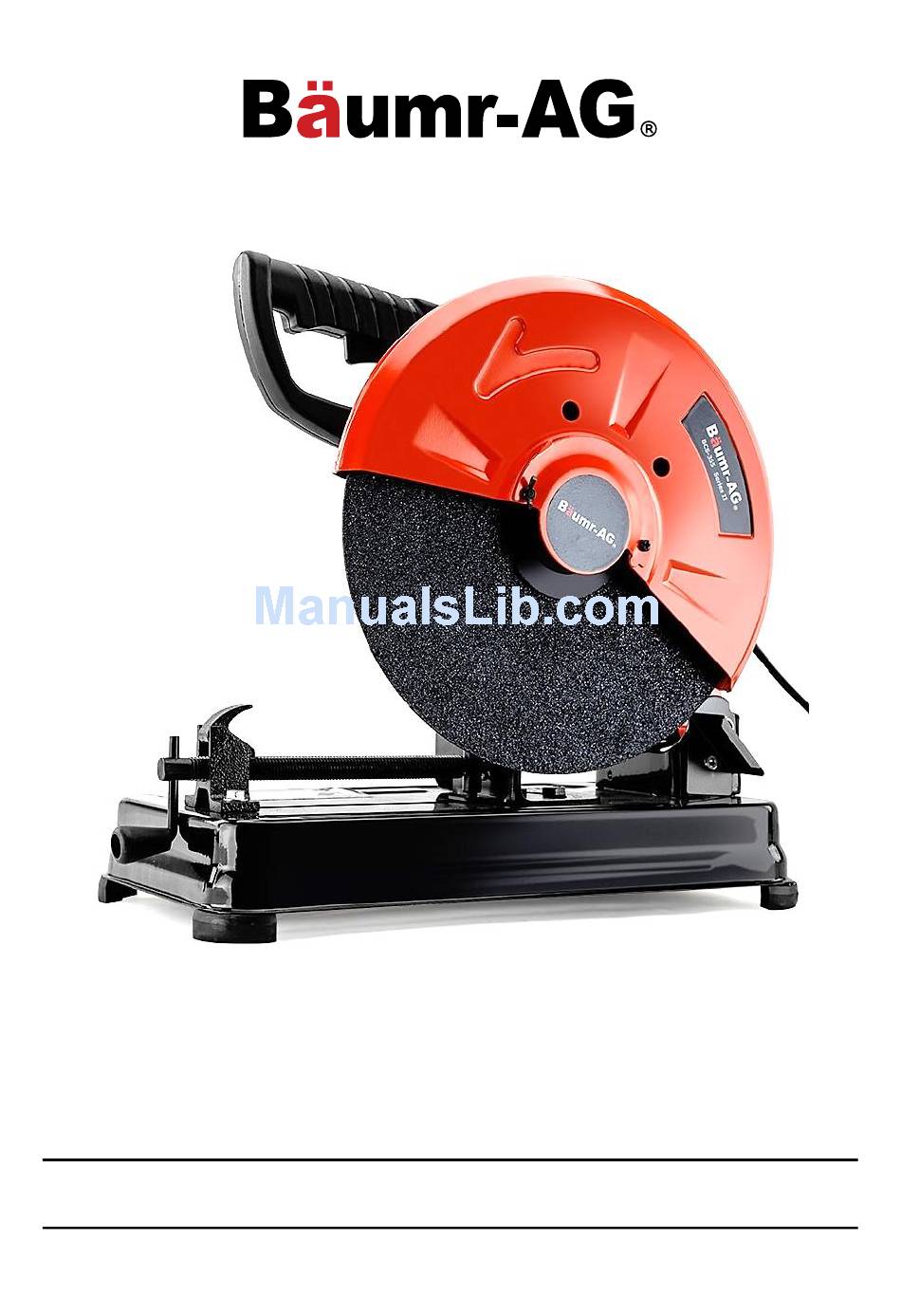

Metal Cut-Off Saw BCS-355 Series II
User Manual
[Revision 1.0 January 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
©2018 Bäumr-AG
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Baumr-AG BCS-355 Series II
Summary of Contents for Baumr-AG BCS-355 Series II
-
Page 1: User Manual
Metal Cut-Off Saw BCS-355 Series II User Manual [Revision 1.0 January 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. -
Page 2: Safety
Metal Cut-Off Saw BCS-355 Series II Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:... - Page 3 Metal Cut-Off Saw BCS-355 Series II General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must • The equipment must be serviced or cords, power bars, and electrical fittings have an approved cord and plug and be repaired at authorised service centres for damage or wear before each use.
-
Page 4: Safety Symbols
Metal Cut-Off Saw BCS-355 Series II Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc, replace them. Flammable Material Hazard... - Page 5 Metal Cut-Off Saw BCS-355 Series II Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the Do NOT attempt "slam dunk" confined areas or without...
-
Page 6: Equipment Safety
Metal Cut-Off Saw BCS-355 Series II Equipment Safety Cut-off saws are high-speed, fast-cutting equipment with exposed blades that can cause serious or fatal injury if not used correctly or without taking proper safety precautions. It is extremely important that you read and fully understand the information in this section and all other safety warnings / recommendations and usage instructions before using the equipment. - Page 7 Metal Cut-Off Saw BCS-355 Series II • Allow the cutting wheel to reach full speed before starting the cut. • Do NOT remove the workpiece or any scraps etc until after the cutting wheel has fully stopped. Transportation Safety •...
-
Page 8: Table Of Contents
Metal Cut-Off Saw BCS-355 Series II Table of Contents Safety ............................. 2 Safety Symbols ............................4 Equipment Safety .......................... 6 Parts Identification ........................9 Operation ............................. 10 Straight Cuts ............................. 10 Mitre Cuts ..............................10 Maintenance and Troubleshooting .................... 11 Replacing the Cutting Wheel ........................ -
Page 9: Parts Identification
Metal Cut-Off Saw BCS-355 Series II Parts Identification Name Name Machine Body Motor Housing Table Safety Button Cutting Wheel ON / OFF Trigger Guard Carry Handle Protractor / Fence Locking Chain E&OE ©2018 Bäumr-AG... -
Page 10: Operation
Metal Cut-Off Saw BCS-355 Series II Operation The machine is for cutting metals, and depending on the type of wheel used, the type of metal. For example, ferrous (steel, iron etc) metals, stainless steel, non-ferrous metals such as aluminium etc. -
Page 11: Maintenance And Troubleshooting
Metal Cut-Off Saw BCS-355 Series II Maintenance and Troubleshooting Disconnect the tool from the electrical supply before performing any maintenance. • The tool should be cool enough to touch before performing maintenance activities. • Wear suitable gloves when handling blades. • Some maintenance activities described may be beyond the scope of some users. -
Page 12: Troubleshooting
Metal Cut-Off Saw BCS-355 Series II 3. Pull the brush (C) from the cavity and check the length of the carbon section (D). If the brush length is close to the minimum acceptable limit (6mm), replace the brush – always replace both brushes at the same time. - Page 13 Metal Cut-Off Saw BCS-355 Series II Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death, consult the points below and additionally, the information available at www.datastreamserver.com/safety •...
