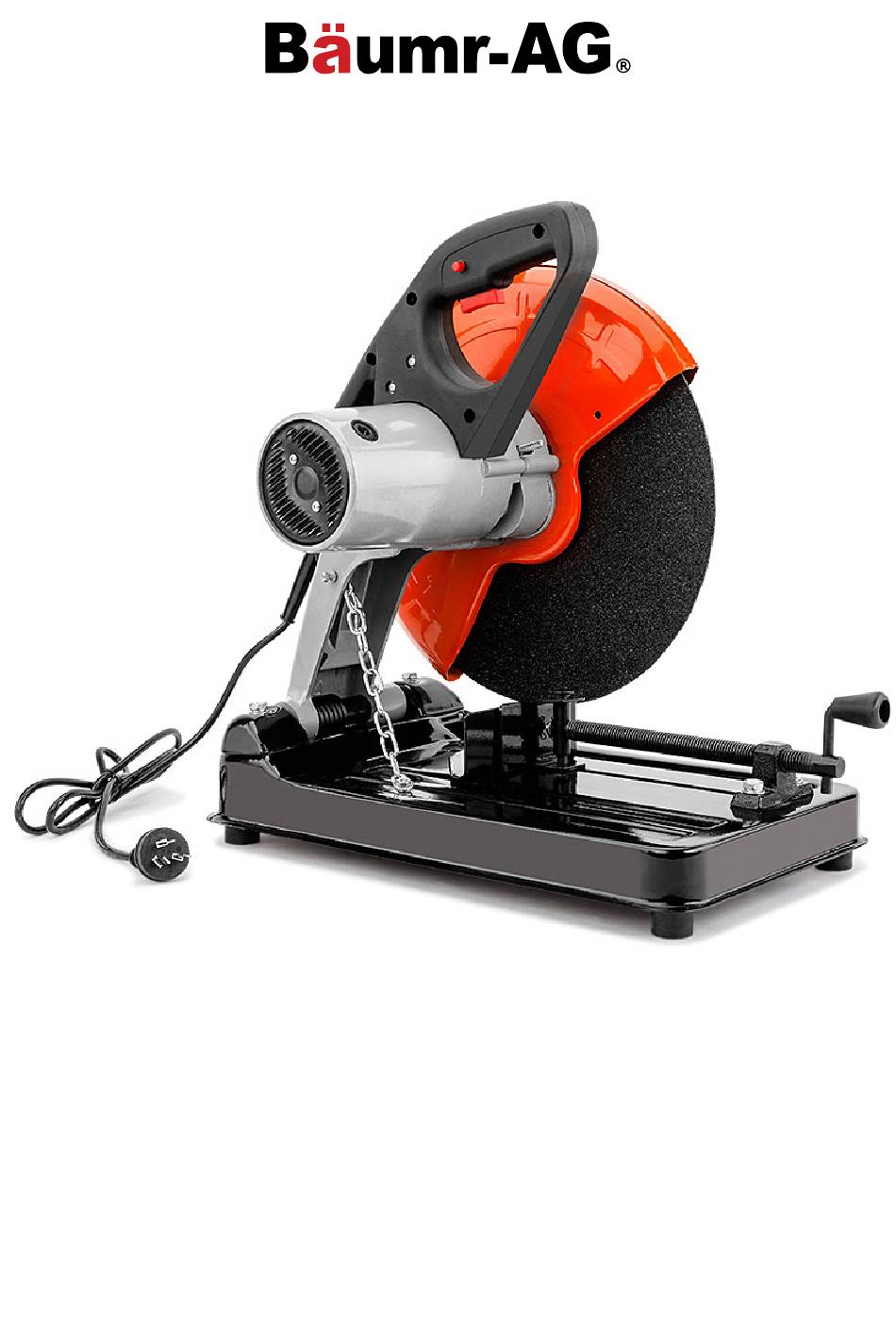

- Page 1 Metal Cut-Off Saw User Manual [Revision 1.0 June 2016] RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
- Page 2 Metal Cut-Off Saw Table of Contents Introduction ........................1 Safety ..........................1 Operation .......................... 2 Replacing the Cutting Wheel ................2 Drawing the Cutting Wheel ................... 2 Maintenance ........................3 Specifications ......................... 4...
- Page 3 Metal Cut-Off Saw Introduction Cut-off saws are moveable electric tools designed to cut all kinds of material. They are double-insulated tools. Their speed is reduced by a pair of cylinder spiral bevel gears. Their instruments are reinforced resin-bond grinding wheels. The safety peripheral speed is 80m/sec.
- Page 4 Model Thickness Speed Diameter Diameter BCS-355 25.4 80m/sec. You must use the cutting wheel as shown in the above table. The cutting wheel must not have any cracks or breakages to ensure your safety. If the cutting wheel has already been kept for over a year, it can then be used after performing a quality check of the circle intensity.
- Page 5 Metal Cut-Off Saw Maintenance • Keep all vent holes of the motor frame clean and free from any dust/dirt. Blow out the motor regularly with compressed air. • Renew the ear grease at every carbon brush change. • The brushes need to be checked after approximately 40 hours of operation. Minimum permissible length is 5 –...
- Page 6 Metal Cut-Off Saw Specifications Model BCS-355 Voltage 220V 50-60Hz Power 2,200W Blade Diameter 355mm Inside (Arbor) Diameter 25.4mm Speed 3,800r/min Blade Thickness 3.5mm Max Material Thickness 130mm/5” (Cutting Diameter)
- Page 7 ©2016 brand here. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
