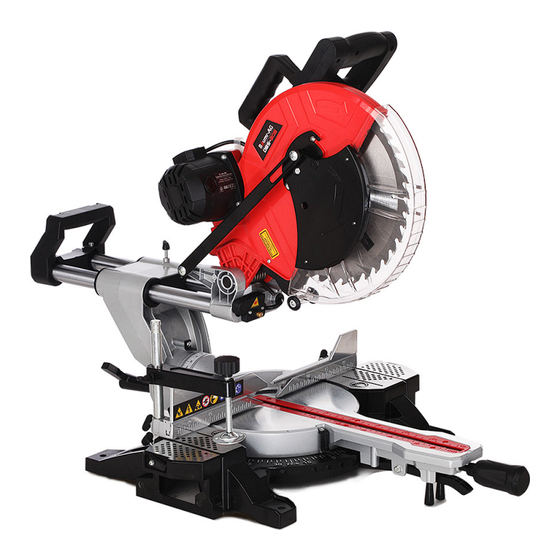

Double Bevel Sliding Mitre Saw
DBS-305
User Manual
[Revision 1.0 February 2019]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2019 Baumr-AG
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Baumr-AG DBS-305
Summary of Contents for Baumr-AG DBS-305
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE © 2019 Baumr-AG...
-
Page 2: Safety
Double Bevel Sliding Mitre Saw - DBS-305 Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:... - Page 3 Double Bevel Sliding Mitre Saw - DBS-305 General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must have • The equipment must be serviced or cords, power bars, and electrical fittings for...
- Page 4 Double Bevel Sliding Mitre Saw - DBS-305 • Keep your work area dry and tidy! An untidy work area may cause accidents. Avoid slippery floor. • Do not overload the machine • Provide good stability and keep balance all times •...
- Page 5 Double Bevel Sliding Mitre Saw - DBS-305 • Do not fix small workpieces by hand, instead only use the down holder. • No material feed, no material removal, no adjustments or other activities when saw blade is running. • Do not position your hands near the saw blade or in a way that they could slip into the cutting line.
-
Page 6: Safety Symbols
Double Bevel Sliding Mitre Saw - DBS-305 Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them. Flammable Material Hazard... - Page 7 Double Bevel Sliding Mitre Saw - DBS-305 Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the product Do NOT attempt "slam dunk"...
-
Page 8: Table Of Contents
Double Bevel Sliding Mitre Saw - DBS-305 Table of Contents Safety................................2 Safety Symbols ................................ 6 Assembly and Transport..........................9 Transport ................................10 Operation ............................... 11 Operation Instructions ............................11 Adjustments ................................11 Angle ................................11 Cutting Depth ..............................13 Laser ................................ -
Page 9: Assembly And Transport
Double Bevel Sliding Mitre Saw - DBS-305 Assembly and Transport Cutting Head Raising: 1. Push down slightly on the Handle (1) and pull out the stop latch knob (2). 2. Allow the cutting head to rise to the up position. -
Page 10: Transport
Double Bevel Sliding Mitre Saw - DBS-305 Transport When bringing the machine to the workplace you have to prepare it for transport. These instructions have to be followed prior to every transport of the sliding compound saw • Disconnect the machine from the power supply. -
Page 11: Operation
Double Bevel Sliding Mitre Saw - DBS-305 Operation Operation Instructions Device to be operated in a perfect state only. Inspect the device visually every time it is to be used. Check the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. - Page 12 Double Bevel Sliding Mitre Saw - DBS-305 3. Turn the table (20) until the mitre angle indicator points to 0°. 4. Tighten the mitre angle lock. 5. Release the vertical angle lock (1) and set the saw unit to a vertical angle of 0°...
-
Page 13: Cutting Depth
Double Bevel Sliding Mitre Saw - DBS-305 Cutting Depth 1. Set the required cutting depth using the setting screw (1). 2. Secure the stop screw using the lock nut (2). Laser The Laser marks the cutting line. After having set all angles and cutting depth, you should fine-tune your laser. -
Page 14: Fence
Double Bevel Sliding Mitre Saw - DBS-305 Fence 1. Extend the fence (2) by sliding it out to match the degree of the bevel cut. 2. Unlock the fence cam locking knob (1) and position the fence. 3. Lock the fence cam locking knob. -
Page 15: Operation Modes
Double Bevel Sliding Mitre Saw - DBS-305 Operation Modes Mitre Cuts 1. Ideal for cutting short workpieces in mitre and/or bevel angles. 2. For mitre cuts fix the saw unit on the sliding bars with drag lock. 3. Place the material to the fence and fix the material additionally with the down holder. -
Page 16: Maintenance
Double Bevel Sliding Mitre Saw - DBS-305 Maintenance CAUTION! Perform all maintenance machine settings with the machine being disconnected from the power supply! Serious injury due to unintentional or automatic activation of the machine! • The machine does not require extensive maintenance. If malfunctions and defects occur, let it be serviced by trained persons only. -
Page 17: Changing The Carbon Brush
Double Bevel Sliding Mitre Saw - DBS-305 • Max. RPM of the saw blade must be at least 4200min CAUTION! To eliminate the risk of cuts, wear protective gloves when handling the circular saw blade. 1. Set cutting head in raise position. -
Page 18: Changing The Belt
Double Bevel Sliding Mitre Saw - DBS-305 Changing the Belt 1. Loosen screw (1). 2. Remove belt cover (2). 3. Loosen the belt tension by turning the screws (4) anticlockwise! 4. Change belts. 5. Retighten the screws (4). Do not overtighten! 6. -
Page 19: Troubleshooting
Double Bevel Sliding Mitre Saw - DBS-305 Troubleshooting CAUTION! BEFORE YOU START TROUBLESHOOTING YOUR UNIT, DISCONNECT IT FROM THE POWER SUPPLY FIRST. Trouble Possible cause Solution Switch is defective. Repair switch. Power supply is OFF. Repair power supply. Engine doesn’t run (or not running correctly). - Page 20 ©2019 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
Need help?
Do you have a question about the DBS-305 and is the answer not in the manual?
Questions and answers
Requirer 2 carbon bushes.
