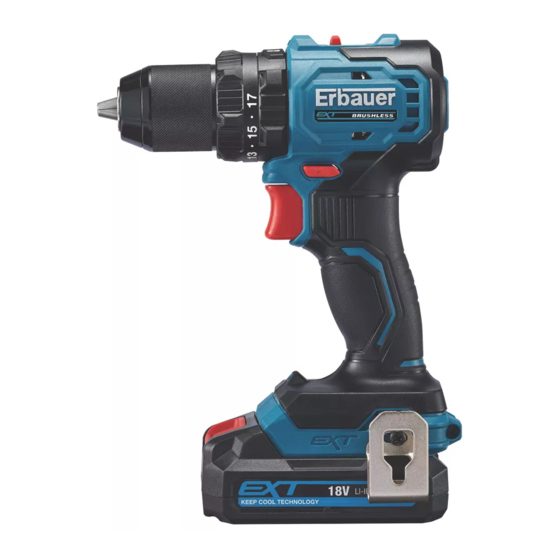

Summary of Contents for Erbauer ECCD18-Li

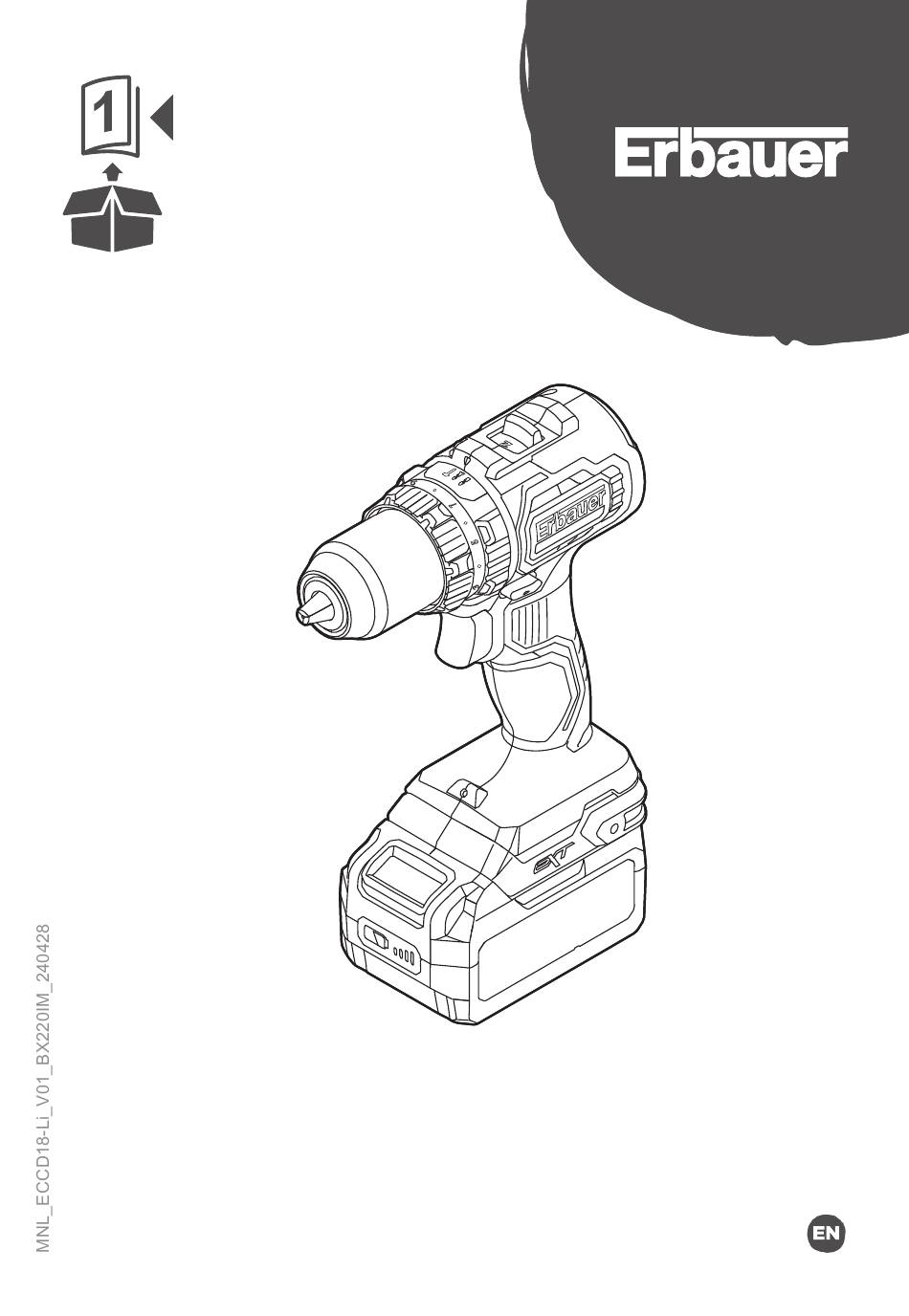

- Page 1 ECCD18-Li ORIGINAL INSTRUCTIONS...
- Page 2 Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of Conformity...
- Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. (M4x12)
- Page 4 PRODUCT DESCRIPTION...
-
Page 7: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... -
Page 8: Personal Safety
ot expose power tools to rain or wet conditions. Water c. Do n entering a power tool will increase the risk of electric shock. not abuse the cord. Never use the cord for carrying, d. Do pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts . - Page 9 ss properly. Do not wear loose clothing or jewellery. Keep f. Dre your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. devices are provided for the connection of dust g.
- Page 10 eep cutting tools sharp and clean. Properly maintained f. K cutting tools with sharp cutting edges are less likely to bind and are easier to control. e the power tool, accessories and tool bits etc. in g. Us accordance with these instructions, taking into account the working conditions and the work to be performed.
- Page 11 not expose a battery pack or tool to fire or excessive f. Do temperature. Exposure to fire or temperature above 130 °C may cause explosion. llow all charging instructions and do not charge the g. Fo battery pack or tool outside the temperature range specified in the instructions.
- Page 12 b) Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. c) Apply pressure only in direct line with the bit and do not apply excessive pressure.
- Page 13 ADDITIONAL SAFETY WARNING FOR CONSTRUCTION DUST The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsumdusts. Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance;...
- Page 14 3. Please always work with approved safety equipment, such as those dust masks that specially designed to filter out microscopic particles and use the dust extraction facility at all time. For more information please see the HSE website: http://www.hse. gov.uk/construction or http://www.hse.gov.uk/pubns/cis69.pdf WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth...
-
Page 15: Residual Risks
SEE TECHNICAL SPECIFICATIONS IN THE INSTRUCTION MANUAL FOR THE VIBRATION LEVELS OF YOUR TOOL. The declared vibration emission value should be used as a minimum level and should be used with the current guidance on vibration. Calculating the actual period of use can be difficult and the HSE website has further information. - Page 16 1. Injuries and damage to property due to broken attachments or the sudden impact of hidden objects during use. 2. Danger of injury and property damage caused by flying objects or poor power tool accessories.
-
Page 17: Product Description
PRODUCT DESCRIPTION 1. Keyless chuck 6. On/off switch 1a. Chuck jaws 7. Handle 1b. Chuck sleeve 8. LED work light 2. Torque adjustment ring 9. Battery pack* 3. Function selection ring 10. Power bar button* 4. Two-speed gear control 11. Battery pack release button* 5. - Page 18 RATING LABEL EXPLANATION ECCD18-Li = MODEL NUMBER E = ERBAUER CCD = COMPACT COMBI DRILL 18 = 18 V d.c.
- Page 19 ASSEMBLY SYMBOLS Read the instruction manual Wear eye protection Wear hearing protection. Wear a dust mask. Do not dispose of battery packs in rivers or immerse in water. Do not dispose of battery packs in fire. They will explode and cause injury.
-
Page 20: Assembling The Machine
UNPACKING Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 21 BATTERY PACK POWER BAR The Li-Ion battery pack (9) is equipped with a POWER BAR which is used to give an indication of the battery pack’s remaining charge. Press the POWER BAR button (10) to check battery charge as below. The LED will stay lit for approximately 5 seconds . 76-100% Charge 51-75% Charge 26-50% Charge...
-
Page 22: Intended Use
INTENDED USE This product is intended for drilling in wood and similar materials e.g. MDF, plywood etc, plastic, metal and impact drilling in brick, tile, concrete, as well as for screw driving. OPERATION ON / OFF SWITCH (C) Depress the on/off switch (6) to start and release it to stop your drill. The on/off switch is fitted with a brake function which stops your chuck immediately when you quickly release the switch. - Page 23 TWO-SPEED GEAR CONTROL (E) The drill has a two-speed gear control designed for drilling or driving at LOW or HIGH speeds. A slide switch is located on top of the drill to select either LOW or HIGH speed. When using the drill in the LOW speed range, the speed will decrease and the drill will have greater power and torque.
- Page 24 AUTOMATIC LED WORK LIGHT (J) The LED work light (8) will illuminate when the trigger switch is depressed slightly, and will automatically turn off a short while after the trigger switch is released. This provides additional light on the surface of the workpiece for operation in lower light situations. WARNING! Do not look directly into LED light.
- Page 25 OVERLOAD, TEMPERATURE AND CHARGING PROBLEM Problem Tool/ Battery Status Possible cause Solution Overload Product suddenly Extremely high Relieve the load protection Stops; The LED torque, binding and immediately, reset the tool work light (if fitted) is stalling situations, by switching off and back flashing overloading of the on again.
-
Page 26: Care And Maintenance
CARE & MAINTENANCE CLEAN Detach the tool attachments from the product. Clean the product with a dry cloth. Use a brush for areas that are hard to reach. In particular clean the chuck, switches and air vents after every use with a cloth and brush. Remove stubborn dirt with high pressure air (max. - Page 27 TRANSPORTATION • Switch the product off and remove the battery pack. • Attach transportation guards, if applicable. • Always carry the product by its handle. • Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
- Page 28 Failure to follow manufacturer’s guidelines Loss of use of the goods Batteries and battery chargers are not covered under the Erbauer 3 Year Warranty and will have a guarantee period of 2 years from the date of purchase. If the product is defective, we will, within a reasonable time, repair or replace it.
-
Page 29: Declaration Of Conformity
DECLARATION OF CONFORMITY (UK) DECLARATION OF CONFORMITY Product • Cordless compact combi drill • ECCD18-Li • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 1 Paddington Square London W2 1GG United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer. - Page 30 • Cordless compact combi drill/Perceuse combi compacte sans fil/Akumulatorowa kompaktowa wiertarko-wkrętarka/Mașină de găurit combi compactă fără fir/Taladro combinado compacto inalámbrico/Berbequim combinado compacto sem fios • ECCD18-Li • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
- Page 31 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: L’objet de la déclaration décrit ci-dessus est conforme à la législation d’harmonisation de l’Union applicable: Wymieniony powyżej przedmiot niniejszej deklaracji jest zgodny z odnośnymi wymaganiami unijnego prawodawstwa harmonizacyjnego: Obiectul declarației descris mai sus este în conformitate cu legislația relevantă...
- Page 32 EN 62841-1:2015 EN 62841-2-1:2018+A11:2019 EN IEC 55014-1:2021 EN IEC 55014-2:2021 Authorised signatory and technical file holder/signataire et responsable de la documentation technique authorisé/ podmiot uprawniony do wystawienia i adres prezechowywania dokumentacji technicznej/semnatar autorizat și deținător al dosarului tehnic/firmante autorizado y titular del expediente tecnico/ signatário autorizado e detentor da ficha técnica: Kingfisher International Products B.V., Rapenburgerstraat 175E,...
- Page 36 1 Paddington Square London W2 1GG United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline: UK 03301248111 erbauer@powertoolservicing.co.uk Eire 0035312479977 erbauer@powertoolservicing.co.uk...
