Summary of Contents for Erbauer ERH750

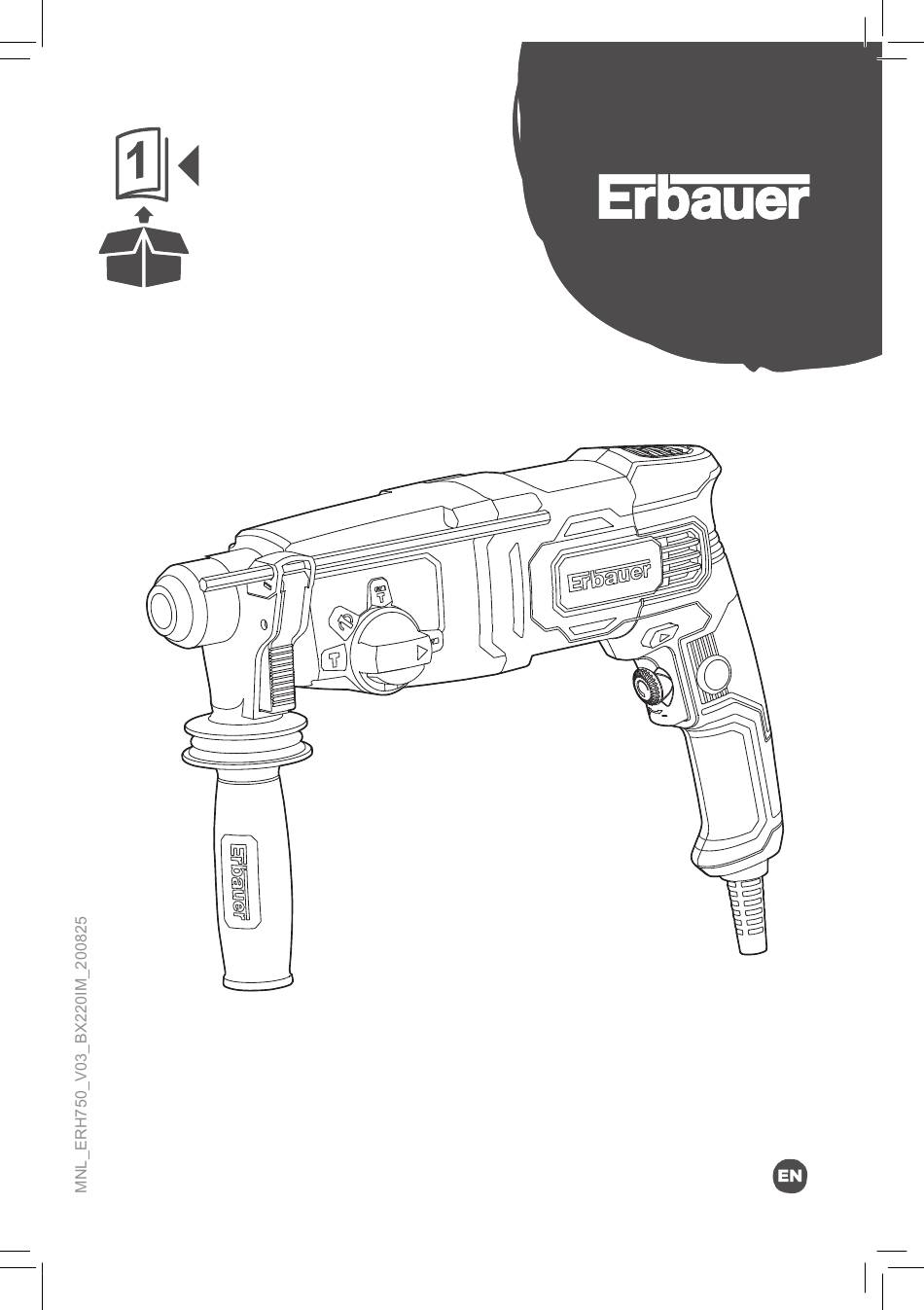

- Page 1 EAN. 3663602784357 ERH750 ORIGINAL INSTRUCTIONS...
- Page 2 Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of Conformity...
- Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. Ø8mm Ø10mm Ø12mm...
-
Page 4: Product Description
PRODUCT DESCRIPTION... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. -
Page 7: Personal Safety
c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. - Page 8 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 9: Hammer Safety Warnings
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. - Page 10 h. After long working periods, external metal parts and accessories could be hot. i. Wear eye protection when operating this tool. j. When using this product it is essential that the following rules for use are followed: • When drilling it is common that the core / drill bit jams in the material being drilled.
- Page 11 dust that they breathe: silica dust is not just a nuisance; it is a real risk to your lungs! Silica is a natural mineral present in large amounts in things like sand, sandstone and granite. It is also commonly found in many construction materials such as concrete and mortar.
- Page 12 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks and cement and other masonry products.
- Page 13 The declared vibration emission been measured in accordance with EN 60745-1& EN 60745-2-6 and may be used to compare one tool with another tool. The declared vibration emission value may also be used in preliminary assessment of exposure. WARNING! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other...
-
Page 14: Torque Limiter
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). Avoid using tools in temperatures of 10ºC or less. Plan your work schedule to spread any high vibration tool use across a number of days. NOTE: The use of other tools will reduce the users’ total working period on this tool. -
Page 15: Technical Specifications
PRODUCT DESCRIPTION Dust Protection Cap Tool Holder Locking Sleeve Depth stop Forward / Reverse Rotation Control Switch Lock-On Button Main handle On/Off Switch With Variable Speed Control Speed dial Function Mode Selection Switch 10. Quick clamp 11. Auxiliary Handle 11a. Hand grip Dust cover TECHNICAL SPECIFICATIONS Rated voltage, frequency:... -
Page 16: Vibration Data
Vibration total values (triax cover sum) determined according to EN 60745: VIBRATION DATA Hammer drilling into concrete = 14.5m/s² h,HD Chiselling = 14.4m/s h,CHeq Uncertainty K =1.5m/s² RATING LABEL EXPLANATION ERH750 = MODEL NUMBER E = ERBAUER RH = ROTARY HAMMER 750 = POWER (WATTS) - Page 17 ASSEMBLY SYMBOLS Read the instruction manual Wear eye protection Wear protective gloves. Wear hearing protection. Wear a dust mask. Wear protective, slip resistant footwear. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Class II tool SDS Plus Chuck 3 metre Power Cord Length...
-
Page 18: Assembling The Machine
UNPACKING Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. -
Page 19: Connection To Power Supply
AUXILIARY HANDLE (B) Slide the handle onto the hammer and rotate to the desired working position. To clamp the auxiliary handle, rotate the handle clockwise. To loosen the auxiliary handle, rotate the handle anti-clockwise. WARNING! Always use the auxiliary handle. DEPTH STOP (C) •... -
Page 20: Intended Use
INTENDED USE The machine is intended for hammer drilling in concrete, brick and stone as well as for light chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. WARNING! Always switch the product off and disconnect it from power supply before making any adjustments! OPERATION ON/OFF SWITCH WITH VARIABLE SPEED CONTROL... - Page 21 FUNCTION MODE SELECTION The operation of the gearbox for each application is set with the function mode selection switch (9). To change between functions, depress the unlocking button and rotate the selector to the desired operating mode. For impacting only - for light chipping, chiseling and demolition applications choose the Hammer position.
-
Page 22: Care And Maintenance
CARE & MAINTENANCE THE GOLDEN RULES FOR CLEANING WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! • Keep the product clean. Remove debris and dust from it after each use and before storage. •... -
Page 23: Power Cord
POWER CORD If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. PLUG REPLACEMENT If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –... -
Page 24: Recycling And Disposal
RECYCLING AND DISPOSAL Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle-more.co.uk REPAIR This product does not contain any parts that can be repaired by the consumer. Contact a qualified specialist to have it checked and repaired. - Page 25 GUARANTEE At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. That’s why we offer a 2 year trade guarantee against manufacturing defects on our Erbauer power tool products.
-
Page 26: Declaration Of Conformity
Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product: Erbauer 750W rotary hammer ERH750 Serial number 00001-99999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:... - Page 28 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline (Freephone)
