Summary of Contents for Erbauer ERB575DRH

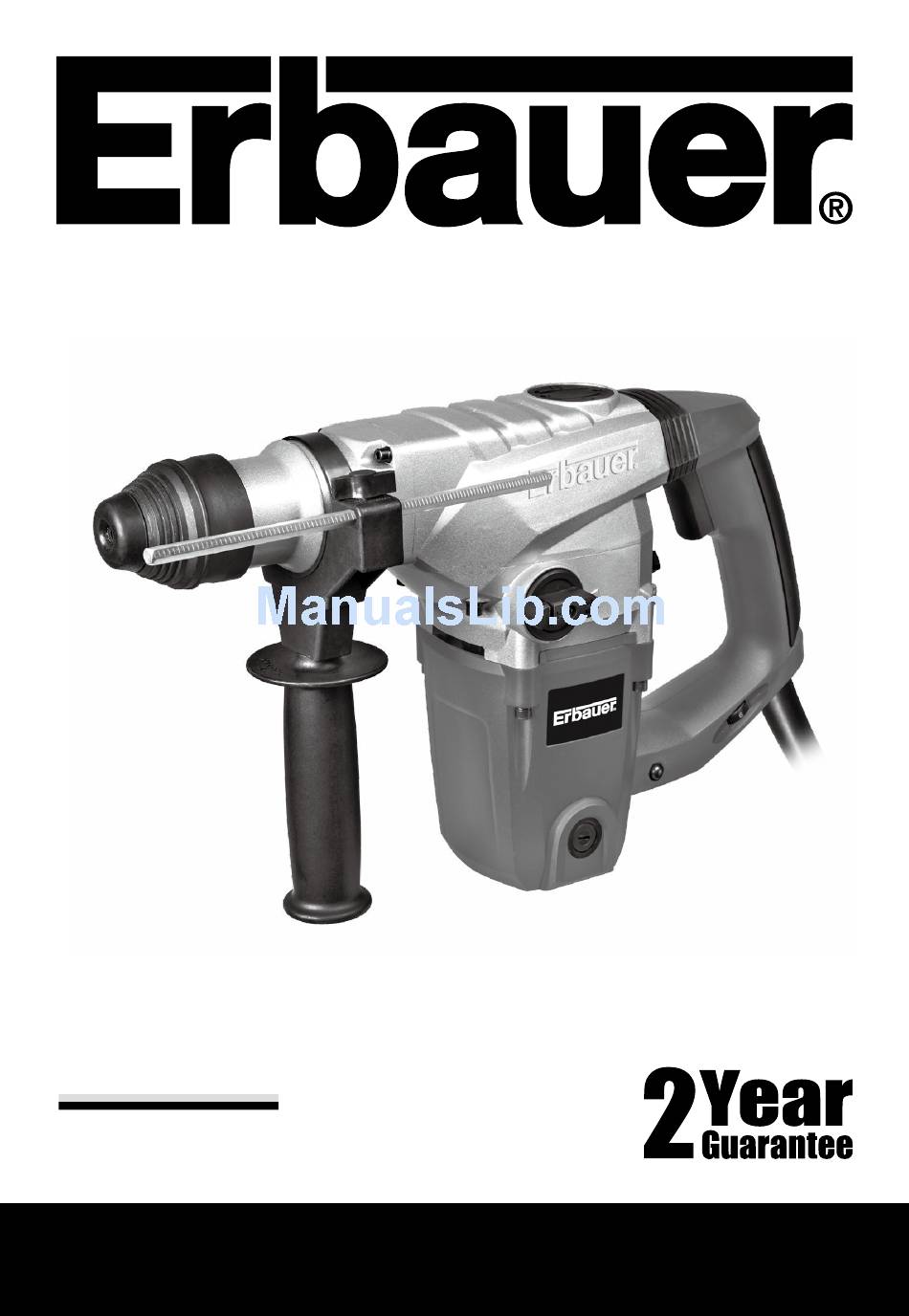

- Page 1 ERB575DRH 1250W 6kg HAMMER DRILL ERB575DRH...
- Page 2 Original Instructions (Version 1.0)
- Page 3 DO NOT stretch to hold the drill. Do not drill above shoulder height or below Knee height, as the drill cannot be securely held. Never drill holes that are above the declared maximum size in the manual. 1250W 6kg HAMMER DRILL ERB575DRH...
- Page 4 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 5: General Power Tool Safety Warnings
A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. 1250W 6kg HAMMER DRILL ERB575DRH... -
Page 6: Hammer Safety Warnings
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. - Page 7 This limit is the legal maximum; the most you can breathe after the right controls have been used. How to reduce the amount of dust? Reduce the amount of cutting by using the best sizes of building products. Use a less powerful tool e.g. a block cutter instead of angle grinder. 1250W 6kg HAMMER DRILL ERB575DRH...
- Page 8 Using a different method of work altogether – e.g. using a nail gun to direct fasten cable trays instead of drilling holes first. Please always work with approved safety equipment, such as those dust masks that specially designed to filter out microscopic particles and use the dust extraction facility at all time. For more information please see the HSE website: http://www.hse.gov.uk/construction or http://www.hse.gov.uk/pubns/cis69.pdf Warning: Some dust particles created by power sanding, sawing, grinding, drill...
- Page 9 When this happens, the bit will stop turning. As soon as the torque limiter actuates, switch off the tool immediately and remove the drill bit from the hole completely. This will help prevent premature wear of the tool. 1250W 6kg HAMMER DRILL ERB575DRH...
- Page 10 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Double insulation Wear ear protection Wear eye protection Wear dust mask Wear safety gloves Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 11 1250W 6kg HAMMER DRILL ERB575DRH...
- Page 12 LOCKING SLEEVE DEPTH GAUGE GREASE BOX COVER ON / OFF SWITCH HAMMER OR DRILLING ACTION SELECTOR SWITCH 1 HAMMER OR CHISEL ACTION SELECTOR SWITCH 2 VARIABLE SPEED CONTROL AUXILIARY HANDLE DUST COVER 10. SPANNER 11. ACCESSORY KITS* * The details were listed in accessories part.
-
Page 13: Technical Data
6/8/10/12x160mm 2pcs for each size; 8/10x200mm 1pc for each size 12/14x250mm 1pc for each size Point chisel (2pcs): 250mm 1pc 150mm 1pc Flat chiesels (3pcs): 22 x 150mm 1pc 22 x 250mm 1pc 40 x 250mm 1pc 1250W 6kg HAMMER DRILL ERB575DRH... -
Page 14: Adjusting The Auxiliary Handle
OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for hammer drilling in concrete, brick and stone as well as for light chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. - Page 15 “ “ point to the triangle. 2) Turn the hammer or drilling action selector switch pointing to the drilling action “ “ position. 3)You are now set up for drilling function. Fig. 6 Fig. 7 1250W 6kg HAMMER DRILL ERB575DRH...
- Page 16 CHISEL FUNCTION 1) For chipping, grooving or demolition operation, press the lock button (A) and then rotate the selector switch make sign “ “ pointing to the triangle. 2) Turn the hammer or drilling action selector switch pointing to the hammer action “ “...
-
Page 17: Working Hints For Your Tool
2. If your hammer becomes too hot in use, set the hammer switch to the drill mode and allow your drill to operate at maximum speed without load for 2 minutes. 1250W 6kg HAMMER DRILL ERB575DRH... - Page 18 3. If your hammer work efficiency is too low, please add sufficient grease in the grease box. 4. If your hammer use in low efficiency, please check whether the tool is blunt. 5. If a fault can not be rectified, return the tool to an authorized dealer for repair.
- Page 19 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-6 Authorised Signatory and technical file holder Date: 11/06/14 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 1250W 6kg HAMMER DRILL ERB575DRH...
