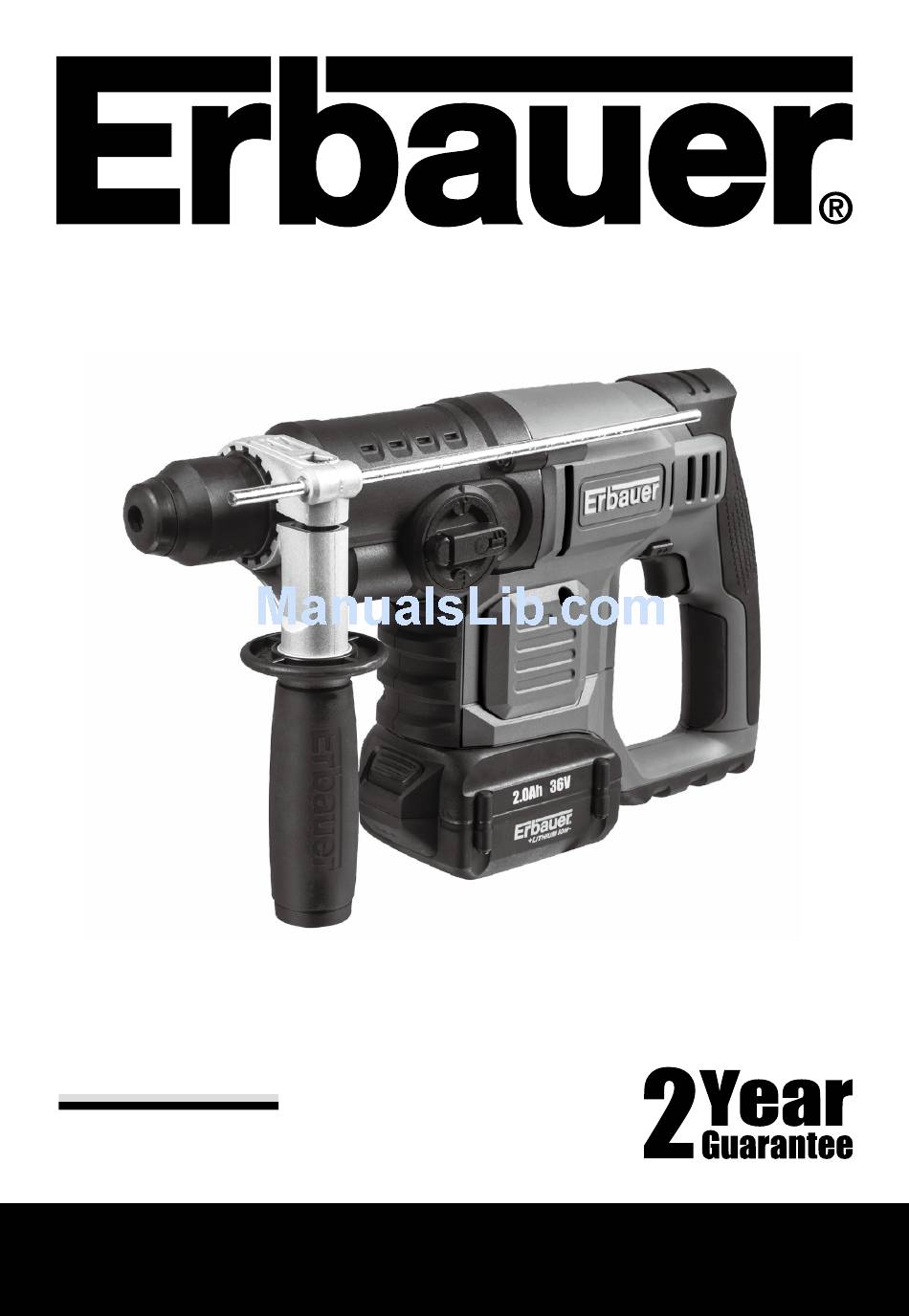

- Page 1 ERT576SDS 36V SDS DRILL ERT576SDS...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Never drill holes that are above the declared maximum size in the manual. This drill is not designed for core drilling above the maximum drilling capacity in masonry. 36V SDS DRILL ERT576SDS...
- Page 4 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
- Page 5 A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. 36V SDS DRILL ERT576SDS...
- Page 6 f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 7 3. Never charge damaged batteries as these can short circuit and over heat. 4. When the charger is in use it MUST be supervised , if there is any evidence of overheating then IMMEDIATELY disconnect the charger from the power supply. 36V SDS DRILL ERT576SDS...
- Page 8 5. If gas or smoke is emitted from the battery during charging switch off the power supply , and move to a well vented area to allow the fumes to vent to atmosphere. Caution is there is leaking liquid from the battery wear protective clothing, glasses and clothes as this can be acidic.
- Page 9 • Crystalline silica from bricks and cement and other masonry products. • Arsenic and chromium from chemically treated timber. Your risk from these exposures varies, depending upon how often you do this type of work. To reduce your exposure to these chemicals: 36V SDS DRILL ERT576SDS...
- Page 10 • Work in a well-ventilated area. • Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles. VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 11 The following dangers can arise in connection with the structure and design of this product: 1. Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained. 36V SDS DRILL ERT576SDS...
- Page 12 2. Injuries and damage to property due to broken application tools or the sudden impact of hidden objects during use. 3. Danger of injury and property damage caused by flying objects. Warning: This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!
- Page 13 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. yyWxx Manufacturing date code; Year of manufacturing (20yy) and week of manufacturing (Wxx); 36V SDS DRILL ERT576SDS...
- Page 14 ADJUSTABLE DEPTH GAUGE DUST PROTECTION CAP TOOL HOLDER LOCKING SLEEVE FUNCTION MODE SELECTION SWITCH ON/OFF SWITCH (WITH VARIABLE SPEED CONTROL) FORWARD AND REVERSE ROTATION CONTROL BATTERY PACK BATTERY PACK RELEASE BUTTON AUXILIARY HANDLE 10. CHARGER 11. CHARGED INDICATOR LIGHT (GREEN) 12.
- Page 15 : 86dB(A) =3.0dB(A) A weighted sound power : 97dB(A) K =3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) ACCESSORIES Auxiliary handle Depth gauge 1hr charger 2.0 Ah Li-ion battery pack 2pcs Charger stand 2pcs 36V SDS DRILL ERT576SDS...
- Page 16 OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for hammer drilling in concrete, brick and stone. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. CHARGING PROCEDURE Fig.
- Page 17 Fig. 6-1 effectively. These forces may cause inferior quality SDS bits to break and jam in the chuck, We therefore recommend that only high quality SDS bits be used with this tool. Fig. 6-2 36V SDS DRILL ERT576SDS...
- Page 18 Fig. 6-2 2. AUXILIARY HANDLE (See Fig. 7) Slide the handle onto the hammer and rotate to the desired working position. To clamp the auxiliary handle rotates the handle clockwise. To loosen the auxiliary handle, rotate the handle anti-clockwise. Warning: Always use the auxiliary handle. 3.
- Page 19 3. Keep the drill in line with the hole. Ideally, if the angle is changed during drilling it could cause the bit to break. 4. Frequently remove the drill bit from the hole when drilling deep holes to allow the dust to be ejected from the hole. 36V SDS DRILL ERT576SDS...
- Page 20 POSSIBLE PROBLEMS AND SOLUTIONS Should you encounter any problems when using your cordless drill, check the following list. 1. On/Off switch will not depress The switch will not depress if the forward and reverse rotation selector is in the locked position. Move to the forward or reverse position and try again.
- Page 21 Do not attempt to open or remove any of the components. 36V SDS DRILL ERT576SDS...
- Page 22 PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.
- Page 23 EN 60335-1 EN 60335-2-29 EN 61000-3-2 EN 61000-3-3 EN 62233 Authorised Signatory and technical file holder Date: 11/06/14 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 36V SDS DRILL ERT576SDS...
