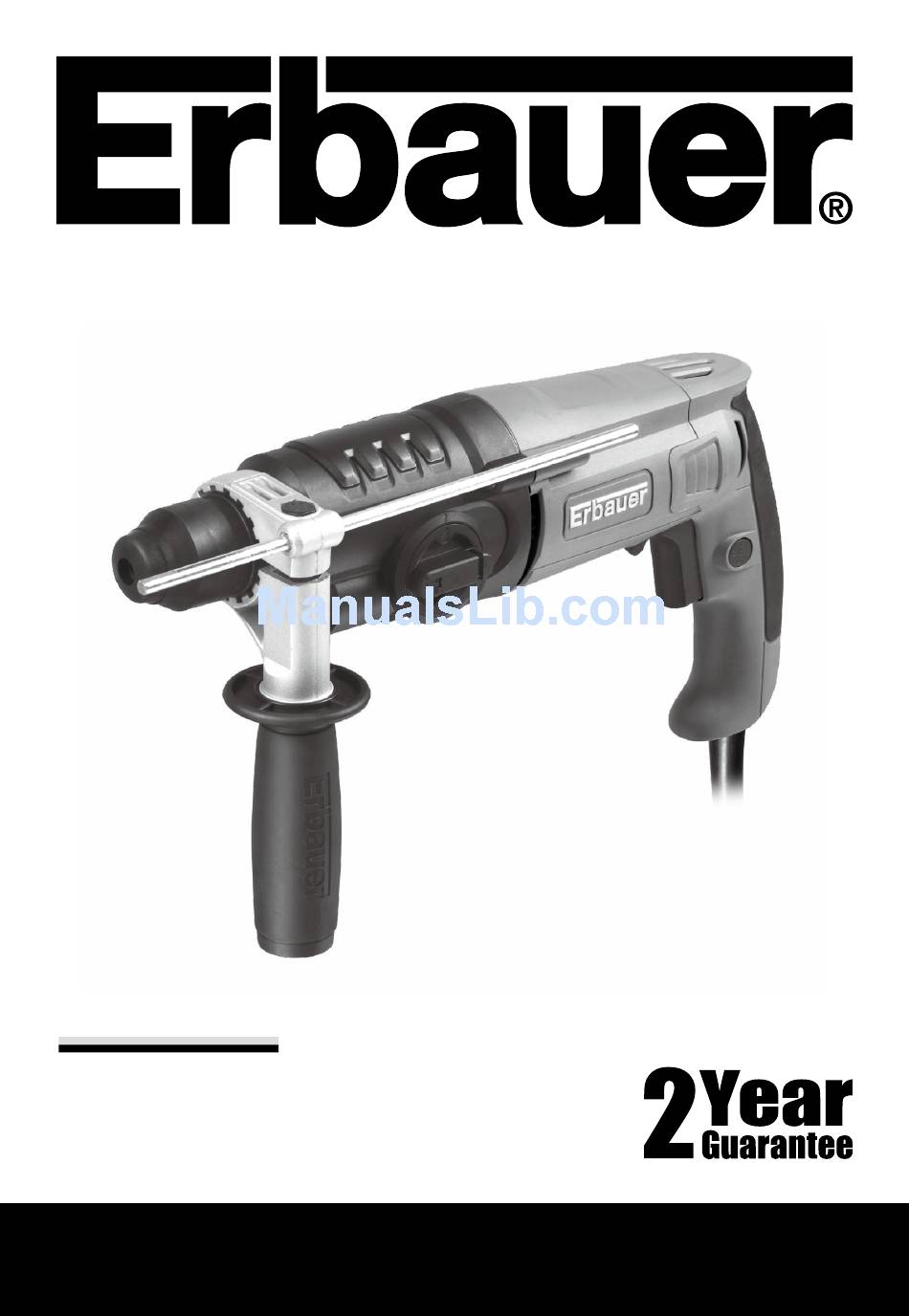

- Page 1 ERB562DRL ERA563DRL 2kg HAMMER DRILL ERB562DRL/ ERA563DRL...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Never drill holes that are above the declared maximum size in the manual. This drill in not designed for core drilling above the maximum capacity in masonry. 2kg HAMMER DRILL ERB562DRL/ ERA563DRL...
- Page 4 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 5: General Power Tool Safety Warnings
A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. 2kg HAMMER DRILL ERB562DRL/ ERA563DRL... -
Page 6: Hammer Safety Warnings
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. - Page 7 This limit is the legal maximum; the most you can breathe after the right controls have been used. How to reduce the amount of dust? Reduce the amount of cutting by using the best sizes of building products. Use a less powerful tool e.g. a block cutter instead of angle grinder. 2kg HAMMER DRILL ERB562DRL/ ERA563DRL...
- Page 8 Using a different method of work altogether – e.g. using a nail gun to direct fasten cable trays instead of drilling holes first. Please always work with approved safety equipment, such as those dust masks that specially designed to filter out microscopic particles and use the dust extraction facility at all time. For more information please see the HSE website: http://www.hse.gov.uk/construction or http://www.hse.gov.uk/pubns/cis69.pdf Warning: Some dust particles created by power sanding, sawing, grinding, drill...
- Page 9 How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained 2kg HAMMER DRILL ERB562DRL/ ERA563DRL...
- Page 10 The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles. And the tool is being used as intended by its design and these instructions. While working with this power tool, hand/arm vibrations occur. Adopt the correct working practices in order to reduce the exposure to vibration.
- Page 11 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. yyWxx Manufacturing date code; Year of manufacturing (20yy) and week of manufacturing (Wxx); 2kg HAMMER DRILL ERB562DRL/ ERA563DRL...
- Page 12 ADJUSTABLE DEPTH GAUGE DUST PROTECTION CAP TOOL HOLDER LOCKING SLEEVE FUNCTION MODE SELECTION SWITCH FORWARD AND REVERSE ROTATION CONTROL SWITCH LOCK-ON BUTTON ON/OFF SWITCH WITH VARIABLE SPEED CONTROL AUXILIARY HANDLE...
-
Page 13: Technical Data
Wear ear protection when sound pressure is over 80dB(A) ERA563DRL A weighted sound pressure : 97.7dB(A) =3.0dB(A) A weighted sound power : 108.7dB(A) K =3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) ACCESSORIES Auxiliary handle Depth gauge 2kg HAMMER DRILL ERB562DRL/ ERA563DRL... - Page 14 OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for hammer drilling in concrete, brick and stone as well as for light chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic.
- Page 15 For drilling into steel, wood and plastics choose the Rotary drilling position. For simultaneous drilling and impacting of concrete or masonry, choose the Hammer drilling position. Warning: The operating mode selector switch may be actuated only at a standstill. 2kg HAMMER DRILL ERB562DRL/ ERA563DRL...
-
Page 16: Maintenance
WORKING HINTS FOR YOUR DRILL (HAMMER) If your power tool becomes over heated, set the speed to maximum and run no load for 2-3 minutes to cool the motor. SDS-plus tungsten carbide drill bits should always be used for concrete and masonry. When drilling in metal, only use HSS drill bits in good condition. -
Page 17: Plug Replacement
13 Amp fuse approved to BS 1363 Connect Blue to N Brown L(live) (neutral) Outer sleeve Cable grip firmly clamped 2kg HAMMER DRILL ERB562DRL/ ERA563DRL... -
Page 18: Declaration Of Conformity
Standards conform to: EN 60745-1 EN 60745-2-6 EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 Authorised Signatory and technical file holder Date: 11/06/14 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
