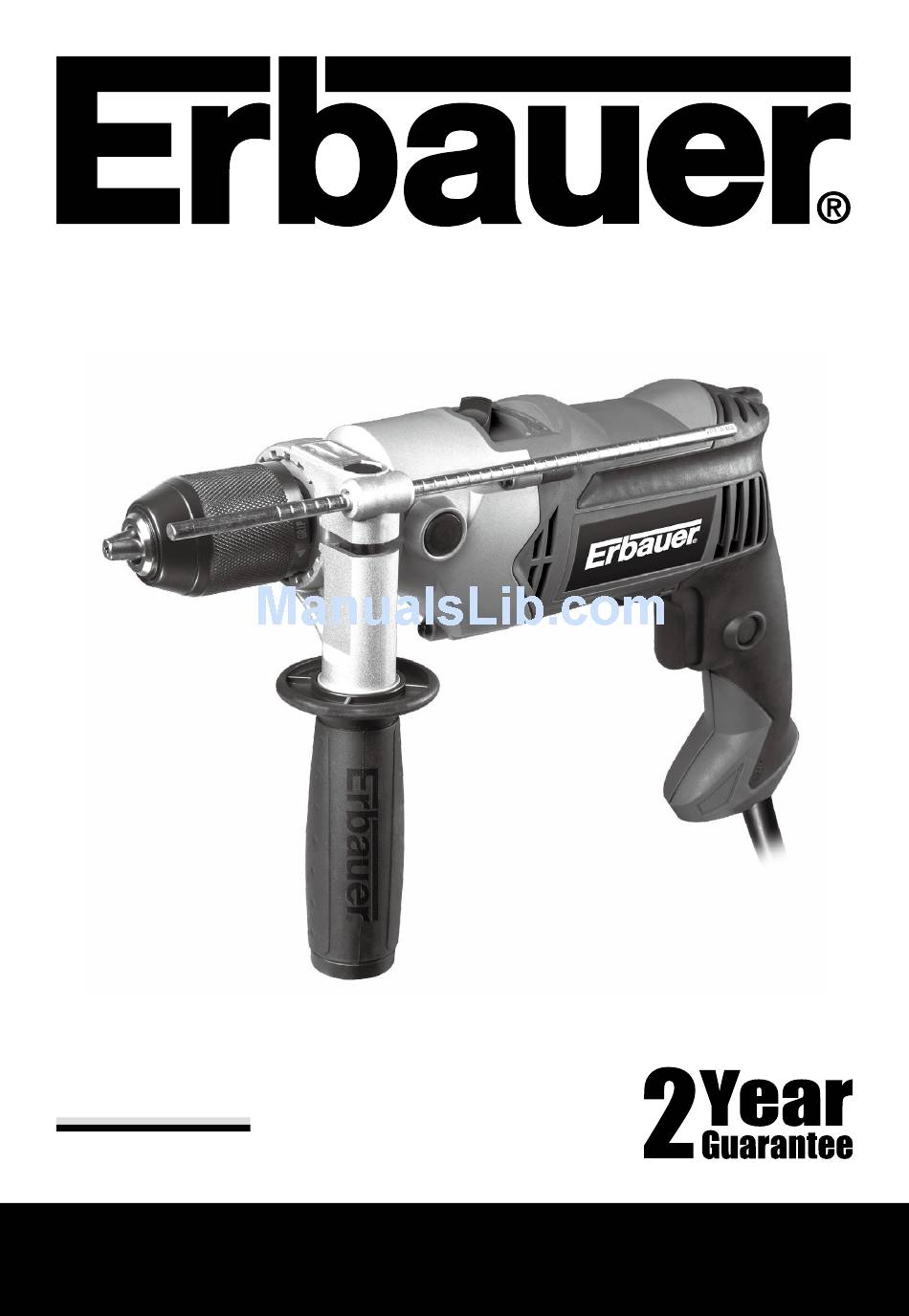

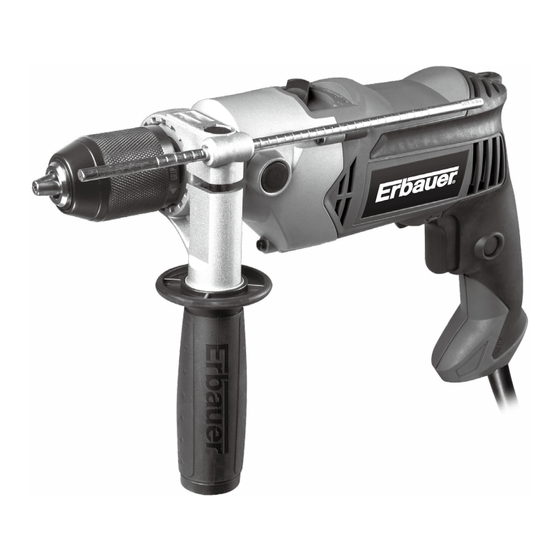

- Page 1 ERB565DRL 800W PERCUSSION DRILL ERB565DRL...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS General Power Tool Safety Warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 7. When an extension cord is required you must ensure it has the correct ampere rating for your power tool and that it is in a safe electrical condition. Please fully unwind extension cords to avoid potential overheating. 800W PERCUSSION DRILL ERB565DRL...
- Page 6 8. Ensure your supply voltage is the same as your tool rating plate voltage. 9. Your tool is double insulated for additional protection against a possible electrical insulation failure within the tool. 10. Always check walls and ceilings to avoid hidden power cables and pipes. 11.
- Page 7 How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles. 800W PERCUSSION DRILL ERB565DRL...
-
Page 8: Double Insulation
And the tool is being used as intended by its design and these instructions. While working with this power tool, hand/arm vibrations occur. Adopt the correct working practices in order to reduce the exposure to vibration. This tool may cause hand-arm vibration syndrome if its use is not adequately man- aged Warning: identify safety measures to protect the operator that are based on an esti- mation of exposure in the actual conditions of use (taking account of all parts of the... - Page 9 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. yyWxx Manufacturing date code; Year of manufacturing (20yy) and week of manufacturing (Wxx); 800W PERCUSSION DRILL ERB565DRL...
- Page 10 SINGLE SLEEVE KEYLESS CHUCK ADJUSTABLE DEPTH GAUGE SPINDLE LOCK HAMMER OR DRILLING CONTROL SWITCH LOCK-ON BUTTON ON/OFF SWITCH WITH VARIABLE SPEED CONTROL FORWARD AND REVERSE ROTATION AUXILIARY HANDLE BUBBLE LEVEL...
-
Page 11: Technical Data
Machine weight 2.7kg NOISE AND VIBRATION DATA A weighted sound pressure =89dB(A) K =3.0dB(A) A weighted sound power =100dB(A) K =3.0dB(A) Uncertainty: 3dB(A) Wear ear protection when sound pressure is over 80dB(A) ACCESSORIES Auxiliary handle Depth gauge 800W PERCUSSION DRILL ERB565DRL... -
Page 12: Operating The On/Off Switch
OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and plastic. 1. INSTALLING THE AUXILIARY HANDLE (See Fig 1) Slide the handle onto the drill and rotate to the desired Fig. - Page 13 A Bubble Level is fitted on top of the drill. It is useful when drilling a horizontal hole. When it level, the bubble Fig. 6 will be in the middle of the two level lines. Fig. 7 800W PERCUSSION DRILL ERB565DRL...
-
Page 14: Working Hints For Your Drill
WORKING HINTS FOR YOUR DRILL 1 Drilling masonry and concrete Select the drill/impact action selector switch to the “hammer symbol” position. Tungsten carbide drill bits should always be used for drilling masonry, concrete etc. 2 Drilling steel Select the drill/impact action selector switch to the “drill symbol”... -
Page 15: Troubleshooting
ENVIRONMENT PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle-more.co.uk 800W PERCUSSION DRILL ERB565DRL... -
Page 16: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. -
Page 17: Declaration Of Conformity
EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-2-1 EN 60745-1 Authorised Signatory and technical file holder Date: 11/06/14 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 800W PERCUSSION DRILL ERB565DRL...
