Binks 7D Manual

33
6
34
35
1
39 38 40 41
37 30 36
itEM PaRt
NO. NO. DESCRiPtiON
1 54-1206 Gun Head ............................................ 1
2 54-3693 Gun body ............................................ 1
3 54-1091 Four FinGer TriGGer ......................... 1
4 54-806 PluG ...................................................... 1
5 54-1221▲ MaTerial ConTrol HousinG ........... 1
6 F luid noZZle, 57ss, 58ss .................. 1
★
(see Chart, page 3)
7 54-1209★ needle
(see Chart, page 3)
8 54-751■ air ValVe body .................................. 1
9 54-744 ■● air ValVe ............................................. 1
10 54-723● Fluid ConTrol sCrew GaskeT ........ 1
11 54-839▲● sPrinG ................................................... 1
12 54-725▲ MaTerial ConTrol sCrew ............... 1
13 54-1223▲ Fluid ConTrol asseMbly ................. 1
14 54-710 sCrew ................................................... 1
15 54-750● sPrinG-air ValVe ................................ 1
16 54-1341■ air ValVe asseMbly .......................... 1
17 54-726▲ MaTerial ConTrol
sPrinG reTainer ................................. 1
18 54-1220● needle Pin ........................................... 1
19 20-1237 needle Collar sCrew ....................... 1
20 54-1210● needle Collar ................................... 1
21 73-9● PaCkinG ................................................ 2
22 54-817 PaCkinG nuT ....................................... 1
23 54-749● air ValVe asseMbly GaskeT ............ 1
24 54-1213▲ sPrinG rinG ......................................... 1
25 54-1340 ■ PaCkinG nuT ....................................... 1
26 54-759 TriGGer sCrew ................................... 1

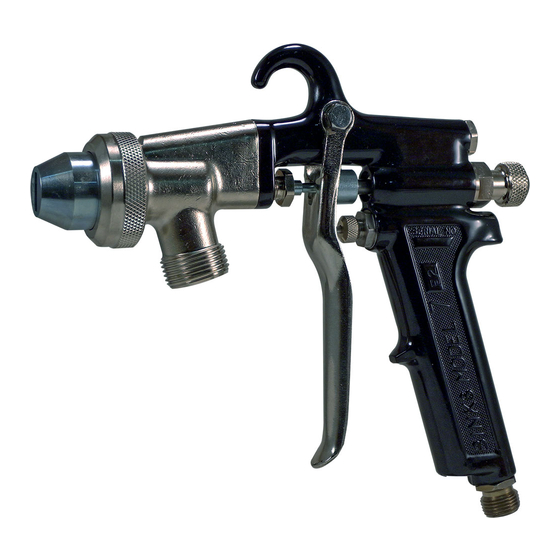

Model 7D Spray Gun
21
14
22
19
7
1/2" nPs (m)
9
Fluid inlet
28
16
25
8
7
3
29
PaRtS LiSt
when ordering, please specify Part no.
QtY.
..................... 1
26
27
18
20
10
23
2
32
itEM PaRt
NO. NO. DESCRiPtiON
27 54-760 TriGGer sTud ...................................... 1
28 54-747■● air ValVe PaCkinG ............................. 1
29 47-345★ needle sTeM asseMbly ..................... 1
(see Chart, page 3)
30
★ (see Chart, page 3)
31 54-768 air ConneCTion ................................. 1
32 54-714 PluG ...................................................... 1
33 54-918● air noZZle GaskeT ............................ 1
34 r27ss, r30ss
★
35 54-1224★ reTainer rinG
36 F luid noZZle, 59 series ..................... 1
★
(see Chart, page 3)
37 54-2065★ reTainer rinG
38 46-2101★ air noZZle, 101
39 54-1584★ reTainer rinG
40 54-1583★ base
(see Chart, page 3)
41 45-6801★ Fluid noZZle, 68ss
42 54-3871 Gunners MaTe
43 82-469 round brusH
★ when ordering, please specify Part number stamped on
nozzle. see also nozzle selection on page 3.
▲ Parts included with assembly item 13.
■ Parts included with assembly item 16.
● Parts included in repair kit 6-1304.
24
4
5
13
17
11
12
15
1/4" nPs (m)
31
air inlet
QtY.
............ 1
(see Chart, page 3)
........ 1
(see Chart, page 3)
........ 1
(see Chart, page 3)
...... 1
(see Chart, page 3)
........ 1
(see Chart, page 3)
......................... 1
... 1
(see Chart, page 3)
................. 1
(not shown)
.................. 1
(not shown)
replaces Part
Part sheet Sheet
77-2670r-5
77-2670R-6
