4.5 Product Dimension and Weight

Dimension and net weight of Hybrid Inverter:
Model No.
XD7-10KTL
Packaging Dimensions and Gross Weight
Model No.
XD7-10KTL

4.6 Wall Mounting

Step 1: Mark the installation positions for the mounting bracket on the wall, ensuring the correct orientation.
Step 2: Drill holes with an impact drill and install expansion bolts. Use M6×50 stainless steel expansion bolts.

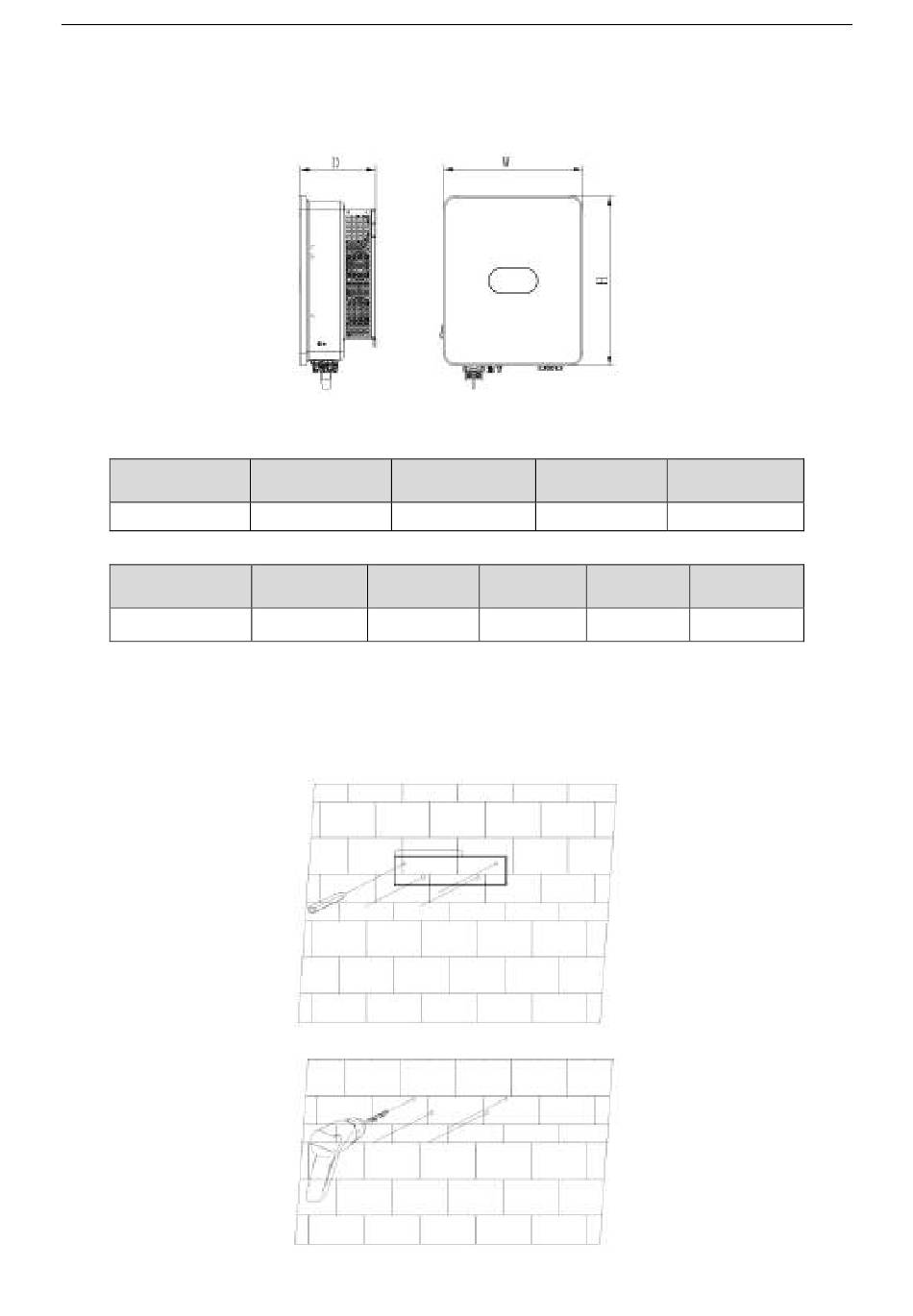

Fig. 4-8 Overall Dimension of Inverter
Height (H) Width (W)
(mm) (mm)
534
Height (H) Width (W)
(mm) (mm)
670 525
Depth (D)
(mm)
440 245
Depth (D) Weight
(mm)
340
11
Installation
Net Weight
(kg)
31
Packaging
(kg) Material
Corrugated
36
cardboard box
