INVT iMars XG1-5KTL-S Quick Installation Manual

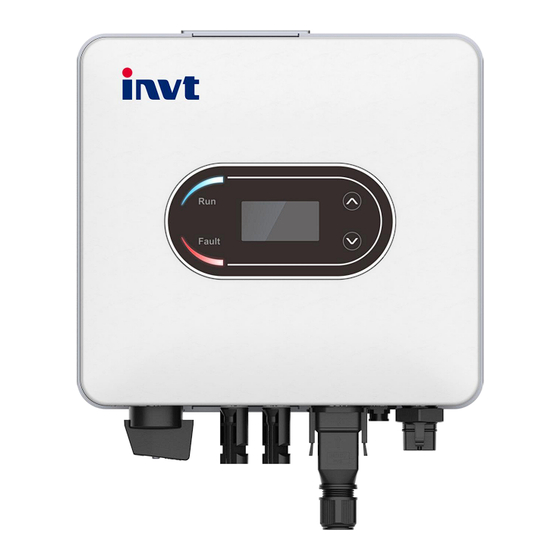

iMars XG1-5KTL-S
Quick Installation Guide
 Only qualified electricians are allowed to install the inverter.
Do not store and install the inverter close to combustible

materials.
Install the inverter away from electronic devices with strong

electromagnetic interference.
Keep the installation site away from places frequently visited

by children and other public.
Remove the metal jewelry such as ring and bracelet before

you perform installation and electrical connection, in order to
avoid electric shock.
The input voltage to the inverter should not exceed 600V;

otherwise, the inverter may be damaged.
The inverter is not compatible with the positive or negative

grounding system of solar cell module.
Make sure the PE of the inverter is reliably grounded.

 Ensure reliable installation and electrical connection.
1
❶

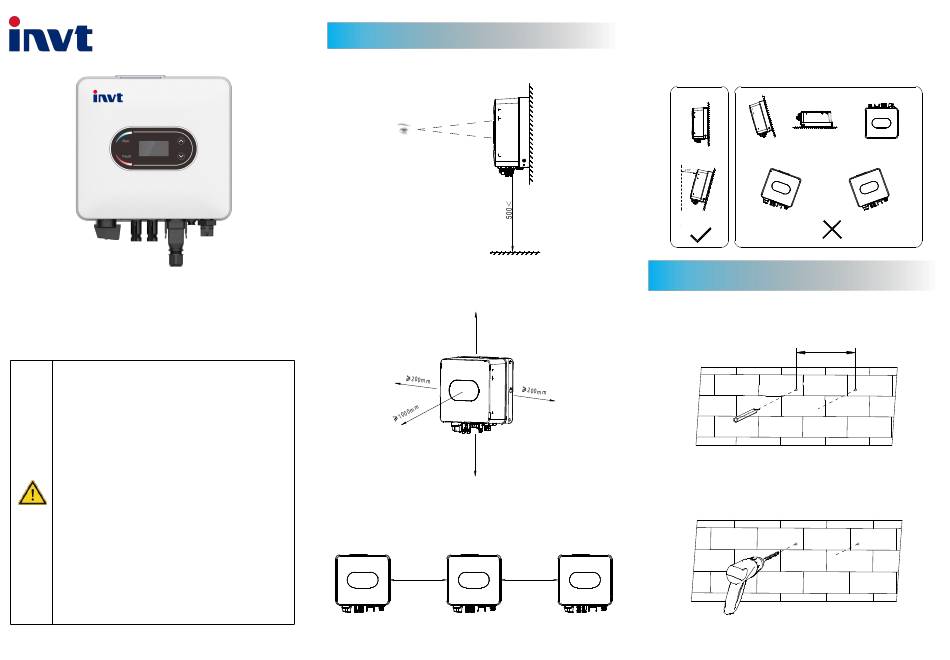

❶ Spacing and Position of Installation
(1) Install the inverter at such a height that allows the operator to observe the
LED indicator lights of the inverter easily.
(2) Leave adequate space around the inverter to facilitate air circulation, and
future handling of the inverter.
≥ 600mm
00mm
≥ 5
(3) To install more than one inverter, please keep a certain distance between
the inverters and at the top/bottom of the inverters (see the figure below), so as to
facilitate heat radiation.
≥ 200mm
(4) The mounting surface should be upright (see the figure below). Install the
2
inverter vertically or at a backward tilt of ≤15° so as to facilitate heat radiation.
Forward tilt, horizontal installation, upside-down installation, backward tilt
of >15° and sideways tilt are not allowed.
❷ Installation of Inverter ❷
(1) Using a marker and a level ruler, mark two points 250mm apart where
you need to drill the holes.
(2) Drill two holes, and fit two M6×50 stainless-steel expansion bolts into the
holes. Tighten the nut to fix the tail of the bolt using a wrench, and then remove
the nut, spring washer and flat washer.
≥ 200mm
250
