Safety Instructions - INVT XD7KTL User Manual

Single-phase Hybrid Solar Inverter
No.
1
3
5
7
9
CAN1 (Parallel Communication)
11
13
15
17
19
21

3.3 Safety Instructions

1. Be sure to read this Manual before operating the product. We shall not be held liable for any failure or loss caused by improper
operation.
2. Select an appropriate battery that matches the system, and set the battery type correctly. If you select a battery that does not
match the hybrid inverter, the system cannot run.
3. If the battery has been completely discharged, please strictly follow the User Manual of the battery to charge the battery.
4. The wiring, installation and commissioning work should be carried out by professionals.
5. During the installation, insulated tools and personal protective equipment should be used to ensure personal safety. To touch
the electronic components of the inverter, please wear anti-static gloves, anti-static wrist strap or anti-static clothing so as to protect
the inverter against electrostatic discharge.
6. All electrical connections must comply with the safety regulations of the local power provider.
7. For system maintenance service, please contact our local authorized service personnel or our after-sales personnel.
Description
Battery Terminal
PV- Input Terminal
COM-2 (Smart meter RS485
communication)
DRM's RJ45 Interface
Generator Dry Contact
GEN Terminal
EPS Terminal
PE Grounding Point
LCD Screen
Function Keys
No.
PV+ Input Terminal
2
COM-1 (RS485 / Wi-Fi / GPRS
4
communication)
USB Port (Software Upgrade)
6
CT's RJ45 Interface
8
BMS lithium battery communication &
10
CAN2 (Parallel Communication)
12
GRID Terminal
14
16
18
LED Indicator Light
20
/
4

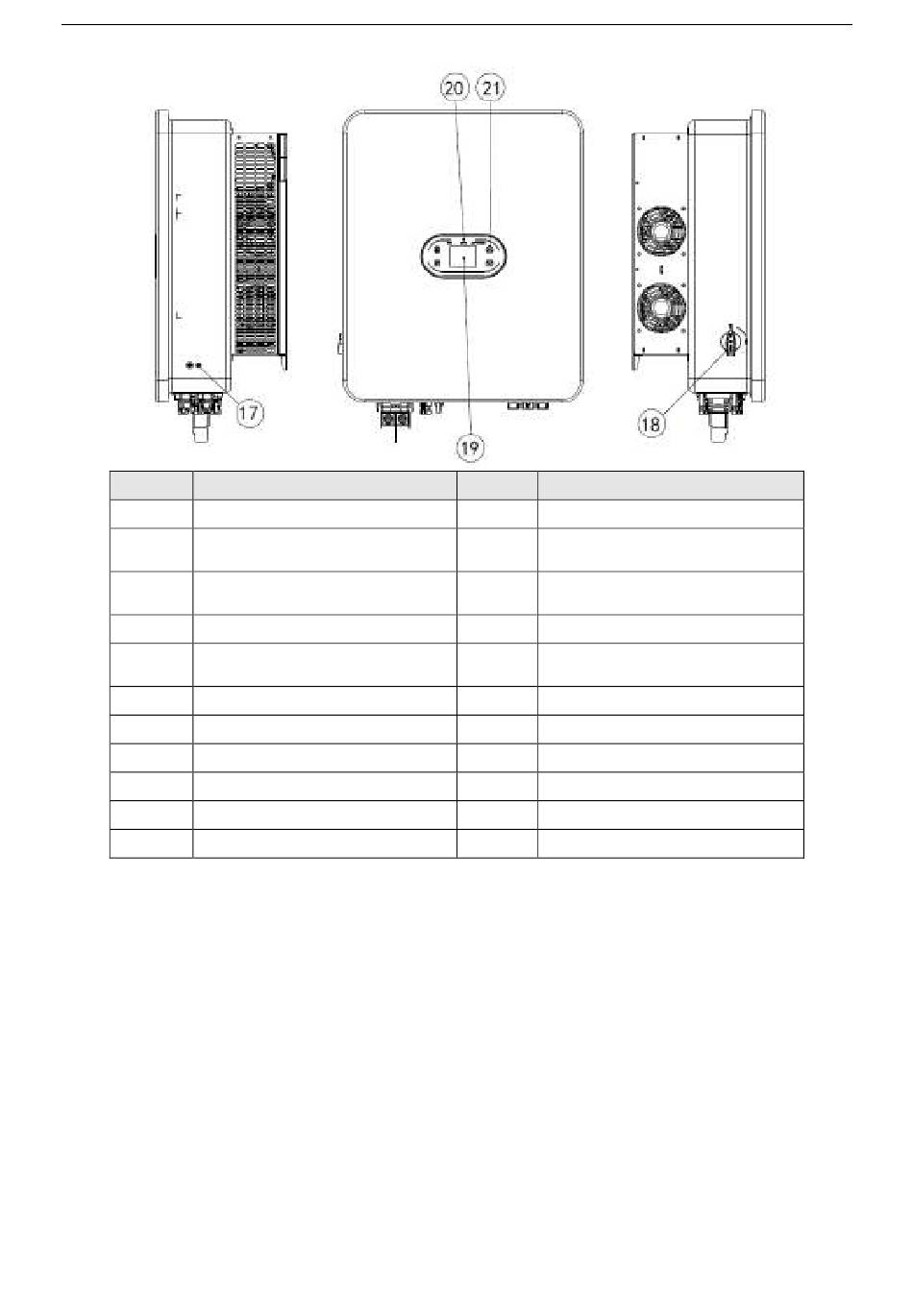

Product Introduction
Description
NTC
Breather Valve
PV DC Switch
/
