Schematic Diagram Of The Basic System; Product Features - INVT XD7KTL User Manual

Single-phase Hybrid Solar Inverter

3.4 Schematic Diagram of the Basic System

Solar Panels

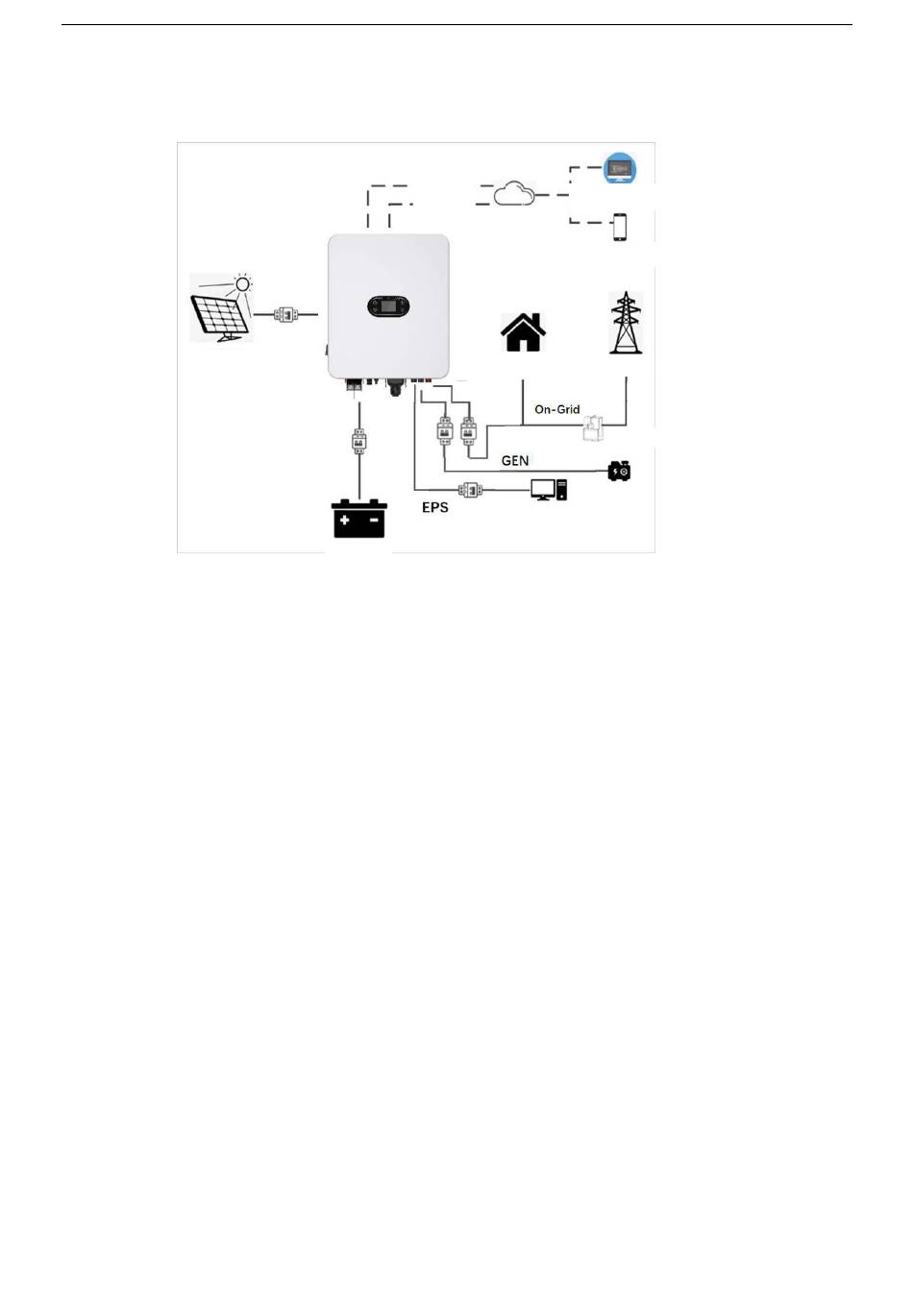

As shown in the above diagram, a complete hybrid inverter system in XD series consists mainly of the solar PV panels, hybrid
inverter, battery and power grid.
Note: The battery is an integral part of the hybrid inverter system. Please keep the installation environment well-ventilated and
take necessary measures to control the ambient temperature, so as to prevent the risk of explosion caused by high temperature.
Battery characteristics: Ingress protection: ≥IP65; pollution degree: PD2; indoor temperature: 0℃~40℃; RH: 5%~85%

3.5 Product Features

1. Intelligent management system and multiple working modes, meeting different customer needs.
2. Allowing you to set the priority of grid connection, battery type and other inverter information on the LCD screen.
3. Dual MPPT with high current input, compatible with 500W+ components, offering flexible configuration.
4. All-in-one design, providing backup power and peak-shaving function.
5. With a battery safety management system, supporting remote upgrade of BMS system.
6. Supporting anti-reflux prevention.
7. Supporting over-temperature / over-current / short-circuit protection, ensuring safe, stable and reliable operation of the system.
8. Providing a variety of user-friendly communication modules (RS485, GPRS, Wi-Fi), supporting monitoring and remote
operations through computer, mobile phone or Internet.
9. Supporting parallel configuration of a maximum of six inverters.
10. A maximum conversion efficiency of up to 97.5%.
11. IP66 rating, low weight, small size, easy installation.
WLAN
GPRS
Cloud Monitoring
Regular Household Load
Battery
6
Web Interface
Mobile Terminal
Power Grid
Current Transformer
Generator
Critical Load
Product Introduction
