SLW3612PP, SLW3622PP

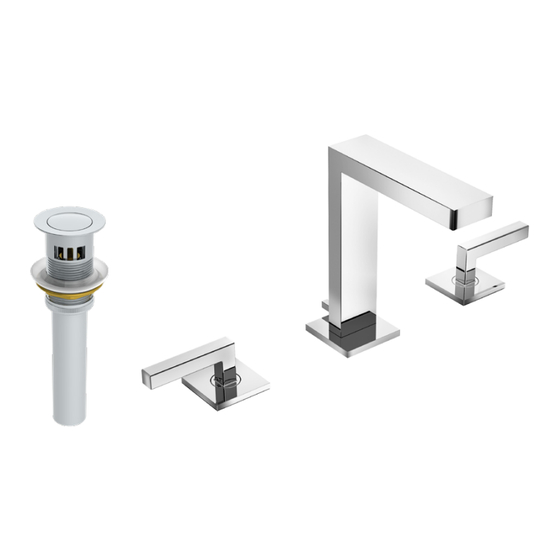

Two Handle Widespread Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
☐
SLW3612PP
Two Handle Widespread Lavatory
Faucet with a Push Pop Drain Assembly
☐
SLW3622PP Two Handle Widespread Lavatory
Faucet with a Push Pop Drain Assembly
Compliance
ASME A112.18.1/CSA B125.1
NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
WaterSense 1.0 gpm (3.8 L/min)
WARNING: This product can expose you to
chemicals including lead, which is known to the
state of California to cause cancer, birth defects, or
other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
Duro®
Feature Highlights
•
8" to 16" mount configuration
•
Quarter turn ceramic cartridges
•
6-5/8" height (SLW3612PP)
•
4" height (SLW3622PP)
•
Push Pop Drain Assembly
•
Standard 1.0 gpm (3.8 L/min) flow rate
•
Faucet shall be metal construction, plated in standard
polished chrome finish
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
c
installations.
Certi ed by
10 Years - for commercial/industrial
IAPMO R&T
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Advertisement
Table of Contents
Related Manuals for Symmons Duro SLW3612PP
Summary of Contents for Symmons Duro SLW3612PP
- Page 1 10 Years - for commercial/industrial IAPMO R&T installations. Refer to WARNING: This product can expose you to www.symmons.com/warranty for complete warranty information. chemicals including lead, which is known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information, go...
- Page 2 Duro® SLW3612PP, SLW3622PP Dimensions Measurements Min. 8", 203 mm Max. 16", 406 mm 1/2-14 NPSM (3x) Hole size Min. Ø 1-1/4", 32 mm Max. Ø 1-3/8", 35 mm Deck Thickness Ref. Min. 7/8", 22 mm Max. 2-3/8", 60 mm Note: Dimensions subject to change without notice.
- Page 3 Parts Breakdown Replacement Parts Item Part Number spout Handle assembly RL-149 handle (2) aerator & retainer screw (2) escutcheon (2) handle Aerator & retainer washer handle escutcheon gasket ow rates LN-15 aerator 2.2 gpm (8.3L /min) centerbody FLR-110-1.5 1.5 gpm (5.7L /min) retainer phillips head screw FLR-110-1.0...
- Page 4 (X) to secure tail pipe (Q). Do Not overtighten. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3620 REV B 022323...
