GoldenDesigns GDI-7030-01 Owner's Manual

3 and 6 person steam saunas
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

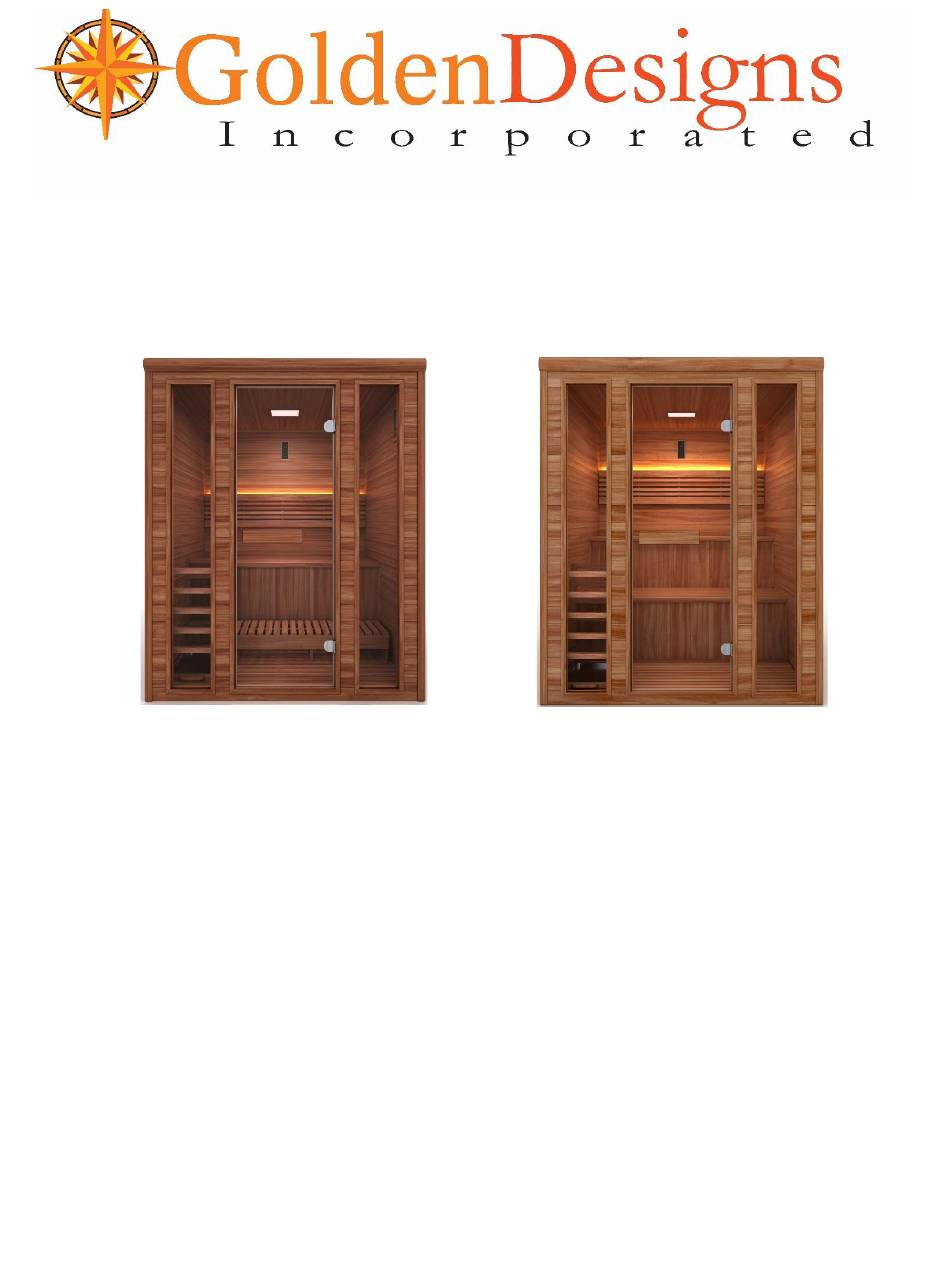

GDI-7030-01 / GDI-7060-01
3 and 6 Person Steam Saunas
OWNER'S MANUAL
FOR STEAM MODEL SAUNAS
REQUIRES 240VAC /1PHASE (30/40AMP, depending on your electrical
code) DEDICATED CIRCUIT FOR THE STOVE
REQUIRES 120VAC 15 AMP CIRCUIT FOR THE SAUNA
Please Note: The stove must be installed by a certified electrician per the
manufacturer's manual. The stove must be installed per the electrical
code in your area with reference to the breaker and wire sizes. Model and
parts are subject to change.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDI-7030-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GoldenDesigns GDI-7030-01

Summary of Contents for GoldenDesigns GDI-7030-01

  • Page 1 GDI-7030-01 / GDI-7060-01 3 and 6 Person Steam Saunas OWNER’S MANUAL FOR STEAM MODEL SAUNAS REQUIRES 240VAC /1PHASE (30/40AMP, depending on your electrical code) DEDICATED CIRCUIT FOR THE STOVE REQUIRES 120VAC 15 AMP CIRCUIT FOR THE SAUNA Please Note: The stove must be installed by a certified electrician per the manufacturer’s manual.
  • Page 2 Thank you for your purchase. As you remove the parts from the boxes, be sure to examine them for damages. If your unit has any damages or missing parts, please contact Golden Designs Inc. See the Warranty section for more information. A Certified Licensed Electrician will be needed to install the electrical wiring.
  • Page 3 FOLLOW ALL INSTRUCTIONS AND BE CAUTIOUS OF SAFETY SYMBOLS. All electrical wiring must be performed by a qualified licensed electrician. High Voltage Symbol: Be cautious as there is the presence of a high voltage current that flows through the equipment! General Caution Symbol: Be cautious as the equipment uses electrical current that can cause serious injury.
  • Page 4 Connecting the control system to other than the required voltage can damage the control system and possibly cause serious injury. It is very important that the load parameters are consistent with that needed by the control system. 11. Canadian Red Cedar and its rich aroma can cause an extremely small percentage of the population to have an adverse reaction known as Multiple Chemical Sensitivity (MCS).

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Product Introduction Assembly Diagram Schematics Schematic Layout Dimensional Diagram Screw Identification Chart Assembly Instructions Sauna Control Panel Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Warranty Warranty Card WARNING: Visually inspect all parts before assembly to make sure they are not damaged.
  • Page 6 Control Panel for Radio & Lights Figure A B. The RIGHT SIDE WALL PANEL will have a vent near the top of the wall for ventilation and a vent near the bottom on the LEFT SIDE WALL PANEL for the stove ventilation.
  • Page 7 B. The bottom of the wall panels and FLOOR WOOD LATTICE will have plastic feet. (see Figure D) Figure D C. For models GDI-7030-01, the STEP will be placed in front of the bench. Model GDI-7060-01 has no STEP. (see Figure E) STEP...

  • Page 8: Assembly Diagram

    READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY GDI-7030-01 (SJ-8361) – Assembly Diagram *The above assembly diagram i s for quick reference only. Read all instructions before assembling. All sauna models may not be shown. Parts and accessories may vary.
  • Page 9 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY GDI-7060-01 (SJ-8461) – Assembly Diagram *The above assembly diagram i s for quick reference only. Read all instructions before assembling. All sauna models may not be shown. Parts and accessories may vary.

  • Page 10: Schematics

    READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY GDI-7030-01 (SJ-8361) – Schematics *The above diagram i s for quick reference only. Read all instructions before assembling. All sauna models may not be shown. Parts and accessories may vary.
  • Page 11 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY GDI-7060-01 (SJ-8461) – Schematics *The above diagram i s for quick reference only. Read all instructions before assembling. All sauna models may not be shown. Parts and accessories may vary.

  • Page 12: Schematic Layout

    READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY GDI-7030-01 (SJ-8361) – Schematics Layout *The above diagram i s for quick reference only. Read all instructions before assembling. All sauna models may not be shown. Parts and accessories may vary.
  • Page 13 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY GDI-7060-01 (SJ-8461) – Schematics Layout *The above diagram i s for quick reference only. Read all instructions before assembling. All sauna models may not be shown. Parts and accessories may vary.

  • Page 14: Dimensional Diagram

    GDI-7030-01 (SJ-8361) – Dimensional Diagram *The above diagram i s for quick reference only. Read all instructions before assembling. All sauna models may not be shown. S i z e , Parts and accessories are subject to change.
  • Page 15 GDI-7030-01 (SJ-8361) – Dimensional Diagram (cont’d) *The above diagram i s for quick reference only. Read all instructions before assembling. All sauna models may not be shown. S i z e , Parts and accessories are subject to change.
  • Page 16 GDI-7060-01 (SJ-8461) – Dimensional Diagram *The above diagram i s for quick reference only. Read all instructions before assembling. All sauna models may not be shown. S i z e , Parts and accessories are subject to change.
  • Page 17 GDI-7060-01 (SJ-8461) – Dimensional Diagram (cont’d) *The above diagram i s for quick reference only. Read all instructions before assembling. All sauna models may not be shown. S i z e , Parts and accessories are subject to change.

  • Page 18: Screw Identification Chart

    READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Screw Identification Chart GDI-7030-01 (SJ-8361) GDI-7060-01 (SJ-8461)

  • Page 19: Assembly Instructions

    CAUTION: Exit sauna immediately if you feel dizzy, sleepy, or any discomfort. Assembly Instructions A. Choose a good location to install the sauna 1. The location must be dry, leveled, and away from any source of water. 2. The stove must be installed by a certified electrician. 3.
  • Page 20 C. Installing LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL 1. While one adult holds the FRONT WALL PANEL, a second adults can place the LEFT SIDE WALL PANEL up against the FLOOR WOOD LATTICE and next to the FRONT WALL PANEL. The LEFT SIDE WALL PANEL will need to be lifted up and onto the FRONT WALL PANEL interlocking the guide and guide insert brackets.
  • Page 21 Figure 3 D. Installing the REAR WALL PANEL 1. Two adults will need to place the REAR WALL PANEL between the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL at the rear of the sauna room. Make sure that the tops of the side wall panels are flushed with the REAR WALL PANEL.
  • Page 22 3. Use the provided screws to secure the roof into place. (see Figure 6) 4. Be sure to connect the Controller Panel and other connections up on the rooftop. 5. (Optional) Use the provided screws to screw down the dust cover board. Figure 5 Pre-drilled holes Figure 6...
  • Page 23 GDI-7030-01 GDI-7060-01 Figure 7 GDI-7030-01 GDI-7060-01 Figure 8 Pre-drilled Screw Holes Figure 9...
  • Page 24 GDI-7030-01 GDI-7060-01 Figure 10 G. Installing the STEP (GDI-7030-01) 1. The STEP can now be placed in front of the BENCH SUPPORT PANEL. Use the (4) provided screws to screw the STEP to the FLOOR WOOD LATTICE. (see Figure 11)
  • Page 25 handle with the glass door between. Be sure not to over tighten the screws or you will shatter the glass. I. Please Note: The stove must be installed by a certified electrician per the manufacturer’s manual. The stove must be installed per the electrical code in your area with reference to the breaker and wire sizes &...

  • Page 26: Sauna Control Panel

    SAUNA CONTROL PANEL - GENERAL INTRODUCTION 1. Electrical Parameters: Functions Touch Key Technology √ FM Radio √ Roof Lights √ Chromotherapy Lighting √ Bluetooth Music Play √ 2. Control System Specifications: A.) Rated Voltage: AC110V-AC240V B.) Bluetooth Approximate Effective Distance: 10 feet C.) Rated Power: 50Hz/60Hz 3.
  • Page 27 CONTROL PANEL OPERATION – Light/BT Control Panel 1. After the sauna has power, there will be no change on the Light/BT Control Panel until you press the power button. Please note that the Light/BT Control Panel is operable when the Infrared heaters are ON or when the Stove heater is ON. When the power button is pressed, you will see (4) lines displayed and the lights will come ON.
  • Page 28 3. On the Light/BT Control Panel and below the display to the right, you will find the button for Chromotherapy Light. Pressing this button will turn ON/OFF the Chromotherapy Light. When you press it for 5 seconds, it will allow you to select a color for the Chromotherapy Light.
  • Page 29 4. On the Light/BT Control Panel, press the Red Light Therapy button to turn the Red Therapy Light ON/OFF. ---- CAUTION: Use the sauna based on level of comfort within the temperature range of 170 degrees F – 200 degrees F. Exit sauna immediately if you feel dizzy, sleepy, or any discomfort.

  • Page 30: Tips For Using Your Sauna

    Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) To regulate the set temperature inside the sauna to your comfort level, use the movable ventilation or leave the door open slightly.
  • Page 31 4.) Do not use the sauna immediately following strenuous exercises. Wait at least 30 minutes to allow the body to cool down completely. 5.) Pregnant or possibly pregnant women should contact their physician prior to using the sauna. Excessive temperature has a high potential for causing fetal damage during pregnancy.

  • Page 32: Safeguards For Your Sauna

    with wet hands or wet feet to avoid risk of electric shock. Never touch the metal prongs of the plug. 18) Do not attempt to make any repairs yourself without contacting the manufacturer first. If a problem occurs with the sauna, please contact seller, distributor, or the manufacturer to avoid safety risks.

  • Page 33: Limited Lifetime Warranty

    Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the sauna room and its attached electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for indoor use or outdoor use when protected from the outdoor weather elements by a structure that includes a water-proof roof.
  • Page 34 ▪ Use of lacquer or paints ▪ Sauna and other Golden Designs, Inc. products accessories placed on non-approved surfaces ▪ Outdoor applications when not protected from outdoor weather elements ▪ Normal wear and tear or weathering ▪ Use of product not in accordance with instructions Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods.

  • Page 35: Warranty Card

    WARRANTY CARD Congratulations on your purchase of a Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.

This manual is also suitable for:

Gdi-7060-01
