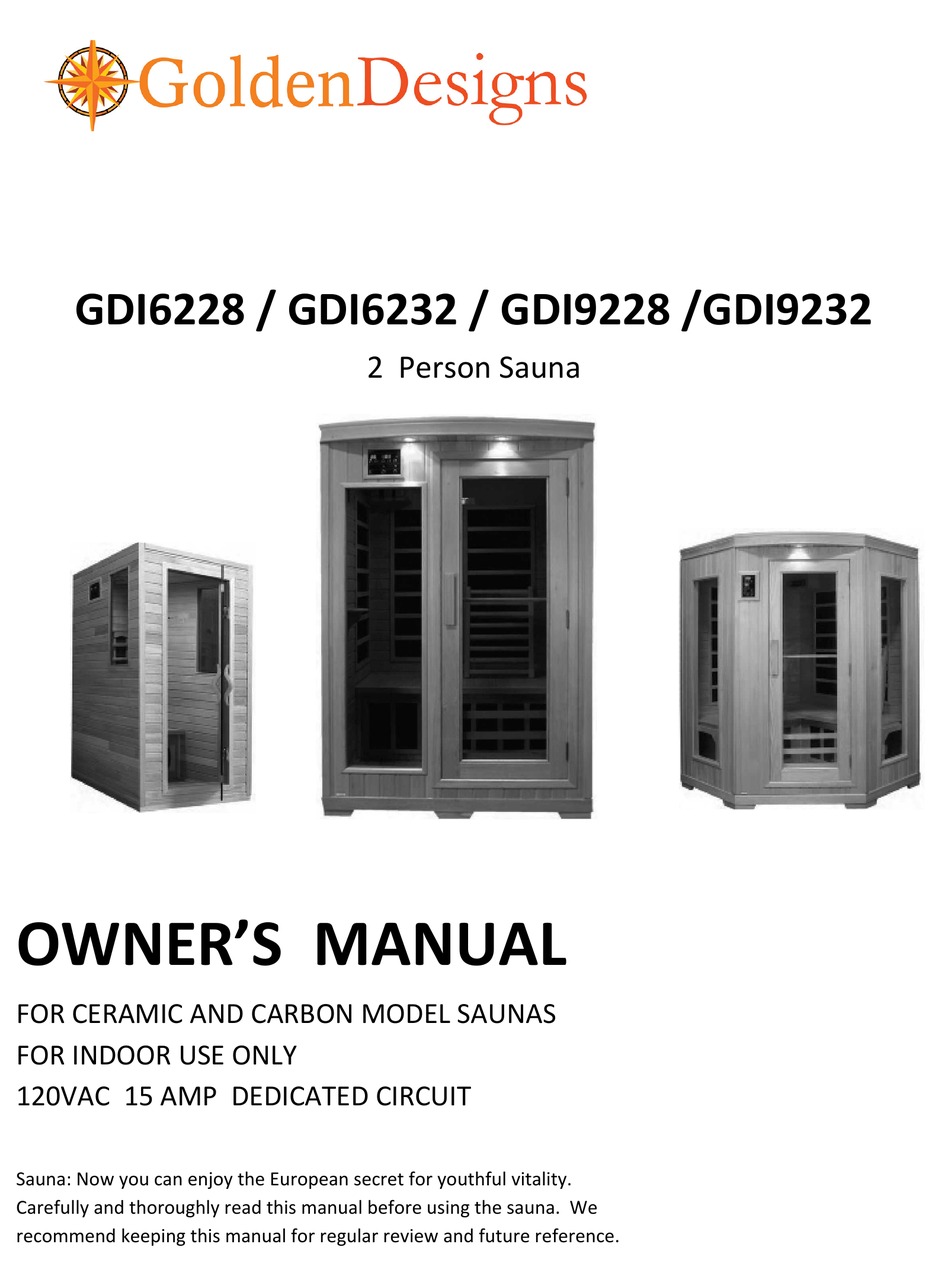

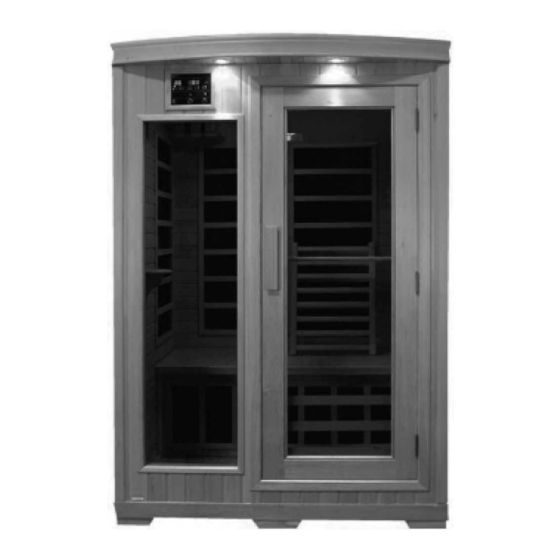

GDI6228 / GDI6232 / GDI9228 /GDI9232
OWNER'S MANUAL
FOR CERAMIC AND CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.
2 Person Sauna
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GoldenDesigns GDI6228
Summary of Contents for GoldenDesigns GDI6228
- Page 1 GDI6228 / GDI6232 / GDI9228 /GDI9232 2 Person Sauna OWNER’S MANUAL FOR CERAMIC AND CARBON MODEL SAUNAS FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We recommend keeping this manual for regular review and future reference. ...
- Page 2 *PLEAS SE READ INSTRUC CTIONS BEFORE E ASSEM BLY* GDI‐6 232 GDI‐9 232 *The ab bove assem mbly diagra ams are qu uick refere nce visual guides for r all 2 perso on sauna m models. Al l sauna mo odels are n not shown. . Parts and d accessor ies may va ary. ...
- Page 3 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
- Page 4 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
- Page 5 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increases blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...
-
Page 6: Table Of Contents
TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements. -
Page 7: Parts Description
PARTS DESCRIPTION A. FRONT OF SAUNA (see figure 1) B. INSIDE OF SAUNA (see figure 2) Figure 1 Figure 2 Ventilation Grid 1) Control Panel Temperature Sensor Door 10) Back Grid Handle 11) Bench Towel Rack 12) Bench Heater Panel Roof Lamp (10W) (optional) 13) Bottom Panel... - Page 8 I. Power Supply The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see figure 3) Figure 3 MAIN POWER main power of the sauna room HT1, HT2, HT3, HT4 emitter power output cables LIGHT...
- Page 9 III. Buckles A. External Buckles The external buckles are used to connect the LEFT and RIGHT SIDE PANELS to the REAR PANEL and FRONT PANEL. (see figure 4) Figure 4 IV. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. A.
- Page 10 Understanding The Difference Between The Top And Bottom Of The Wall Panels The (2) side panels are in the upright position when the vertical slots (for the heat emitter panel below the bench) align with the notches on the floor panel. The rear panel is in the upright position when the horizontal bench guide is closer to the bottom of the rear panel than the top.
-
Page 11: Assembly Instructions
Understanding The Difference Between The Inside And Outside Of The Rear Panel You will find the heat emitters on the inside of the rear panels and buckles on the outside. Assembly Instructions Choose a good location to install the sauna The location must be dry, leveled, and away from any source of water MAIN POWER cord must be easily accessible Two adults are required for installation... - Page 12 D. Installing the REAR PANEL Place the REAR PANEL onto the recessed area on the FLOOR PANEL. Attach the REAR PANEL to the SIDE PANELS and buckle together. E. Installing the BENCH EMITTER PANEL and BENCH Slide down the BENCH EMITTER PANEL by lining up its sides with the vertical guides on each side panel.
- Page 13 Figure 9 G. Connecting the plugs on the ROOF PANEL Connect the plugs according to the respective labels. (see figure 10 – 12) Connect the CTRL plug from the power supply to the CTRL plug from the control panel. Then screw together.
- Page 14 H. Installing the TEMPERATURE SENSOR Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward. (see figure 14) Figure 14 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged in transit.
- Page 15 Assembling the RADIO BOX (optional) Locate the wood sides for the CD/Radio housing. There is one for the front, side, and bottom. (see figure 17) Attach “A” on side panel with “A” on bottom panel and insert screws. (see figure 18) Attach “B”...
-
Page 16: Operating The Sauna
Figure 22 Figure 23 L. Optional Shelf If your sauna comes with the optional shelf, use the two screws provided to mount the shelf on either of the side panels or front panel. M. Optional Towel Rack 1. If your sauna comes with the optional towel rack, use the two screws provided to mount the rowel rack on front door. - Page 17 Press the up/down arrows under the TIME DISPLAY to adjust the amount of time you want the sauna to remain on. Press the C/F button to choose between Celsius and Fahrenheit. Press the up/down arrows under the TEMPERATURE DISPLAY to adjust the temperature setting. Once you have set these adjustments to the desired settings, press the START/WORK button.
-
Page 18: Tips For Using Your Sauna
Power On/Off: Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicate the working status of the sauna Heat Indicator: Indicate the status of heating function Light: Press to control the lighting function Time Display: Display the heating time of the sauna in minutes... -
Page 19: Safety Instructions
your sauna session is over, rinse your hair thoroughly. Please follow the product directions for the intended benefits. 9) The peaceful and relaxed state rendered by a sauna session may help you to sleep easier and deeper. 10) To conserve energy consumption, please unplug your sauna when not in use. 11) After the sauna session is over, do not jump into the shower or bath immediately. -
Page 20: Safeguards For Your Sauna
19) Please make sure the outlet power supply meets the specifications required. Failure to meet the requirements may cause safety risks. 20) Some sauna models are equipped with reading and roof lamps. Because the lamp temperature will become very hot once powered on, do not attempt to touch the lamp to avoid being burned. Do not attempt to touch it for at least 20 minutes after it has been powered off. - Page 21 2. Control Panel Malfunctioning Solution: The control panel will not turn off, the power/work/or heat lights do not come on, or the temperature and timer buttons do not work means the control panel may have been damaged and will need to be replaced. Contact the manufacturer for additional troubleshooting. 3.
-
Page 22: Warranty
Disclaimers Golden Designs, Inc. shall not be liable for loss of use of sauna or other Golden Designs, Inc. products or other incidental or consequential costs, expense or damages, which may include the removal of permanent deck or other custom fixtures or the necessity for crane removal. -
Page 23: Warranty Card
WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1810 S. Milliken Ave. Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
