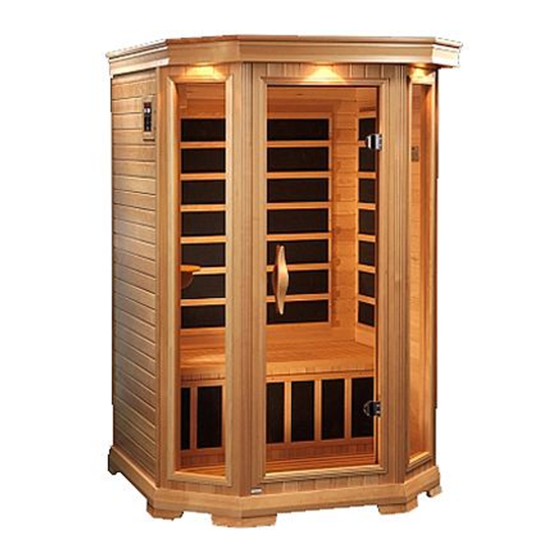

2 Person Sauna
OWNER'S MANUAL
FOR CERAMIC AND CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GoldenDesigns GDI6262
Summary of Contents for GoldenDesigns GDI6262

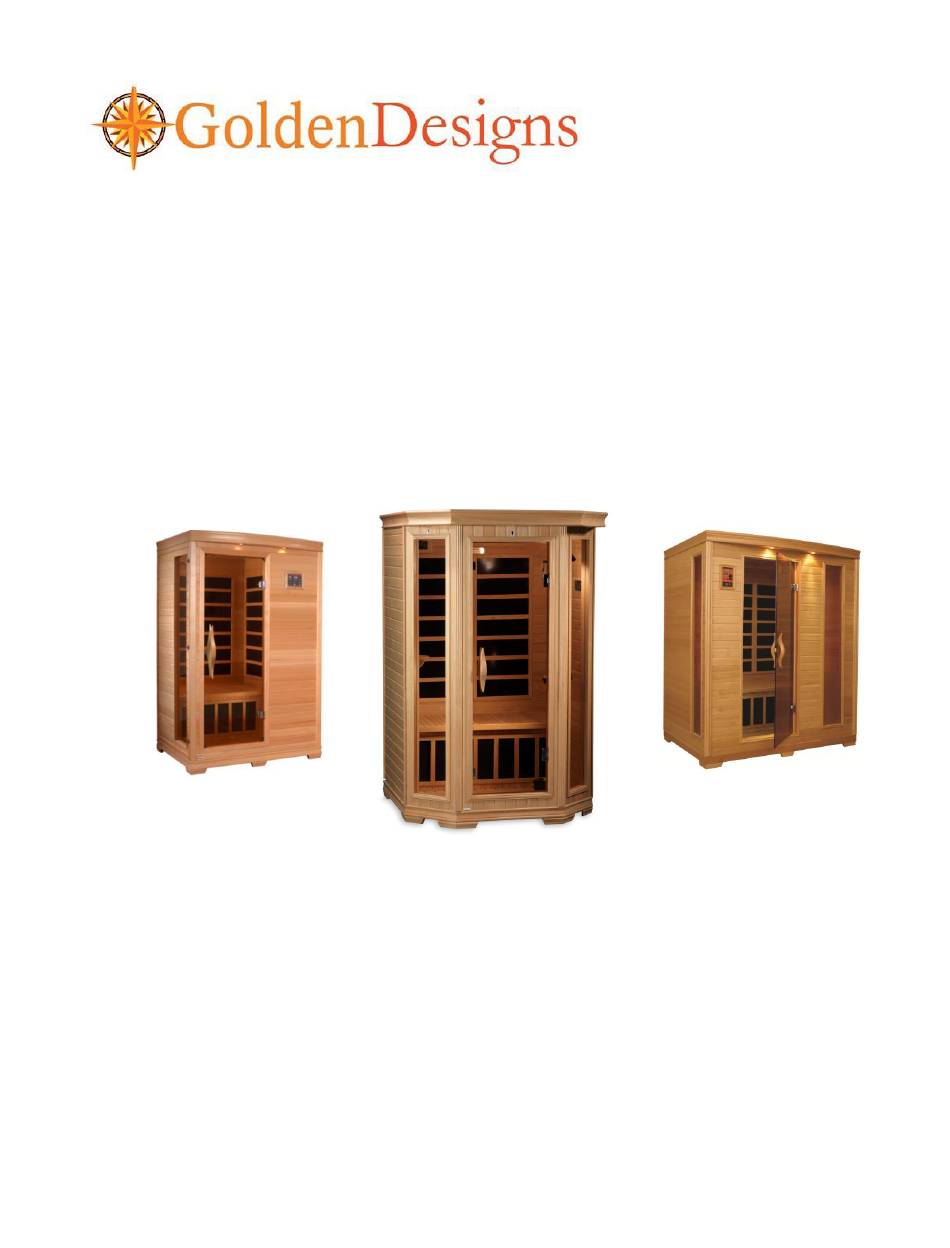

- Page 1 GDI6262 / GDI6272/ GDI9272 2 Person Sauna OWNER’S MANUAL FOR CERAMIC AND CARBON MODEL SAUNAS FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We...
- Page 2 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* GDI‐9272 *The above assembly diagram is for a quick visual reference guide only. All sauna models are not shown. Sauna models, parts, and accessories may vary.
- Page 3 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
- Page 4 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
- Page 5 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increasing blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...
-
Page 6: Table Of Contents
TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements. -
Page 7: Parts Description
PARTS DESCRIPTION Picture representation is for guidance only. Actual model may vary. - Page 8 I. Power Supply The POWER SUPPLY Box is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see figure 3) Figure 3 MAIN POWER main power of the sauna room HT1, HT2, HT3, HT4 emitter power output cables LIGHT...
- Page 9 III. Component Labeling POWER Power Cord HT1, HT2, HT3, HT4 Emitter (heater) power cords LIGHT Reading lamp connector ROOF LAMP Roof lamp connector (optional) COLOR LAMP Color lamp connector (optional) CTRL Control panel connector CD/SIG For CD/temperature sensor/buzzer/etc. connectors CD-POWER CD/radio power connector FAN- POWER CD/radio fan power connector...
-
Page 10: Assembly Instructions
Figure 6 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. A. Floor Panel When the floor panel faces upward, you will find (6) raised moldings with (2) notches. The notches are on the left and right sides of the floor panel. The front of the floor panel has the (3) short angles. - Page 11 Figure 7 Installing the FLOOR PANEL Place the FLOOR PANEL on the floor. Some models have wood braces that must be installed on the underside of the FLOOR PANEL. Please check to see if such wood braces were packed in the box containing the FLOOR PANEL. If so, mount according to the designated labels located on the underside of the FLOOR PANEL.
- Page 12 G. Installing the ROOF PANEL The side with the power supply faces up. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the wires coming from the SIDE and REAR PANELS when you set the ROOF PANEL down onto the panels. Feed the wires through the holes in the ROOF PANEL.
- Page 13 Figure 13 Figure 14 I. Assembling the RADIO BOX (optional) Locate the wood sides for the CD/Radio housing. There is one for the front, side, and bottom. (see figure 15) Attach “A” on side panel with “A” on bottom panel and insert screws. (see figure 16) Attach “B”...
- Page 14 Insert the CD/RADIO into the RADIO BOX. It is not necessary to mount the CD/RADIO once you slide it into the RADIO BOX because the radio will just sit in place. Figure 18 Figure 19 Figure 20 Figure 21 Installing the TEMPERATURE SENSOR Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR.
-
Page 15: Operating The Sauna
Putting on the ROOF COVER Place the ROOF COVER over the top of the sauna. Take care in pulling the power cord through the hole in the roof cover. Slide the antenna through the slot allotted. Gently place the ROOF COVER onto the ROOF PANEL. - Page 16 Plug the sauna into the outlet receptacle. Press the POWER button once. The POWER light will come on, the TIME DISPLAY will show 90 (minutes), the TEMPERATURE DISPLAY will show 66 (degrees Celsius), and the control panel will flash. Press the up/down arrows under the TIME DISPLAY to adjust the amount of time you want the sauna to remain on.
-
Page 17: Tips For Using Your Sauna
To operate the radio, press the power button to turn on the CD/RADIO player. Press the band to choose between the FM/AM frequency on the radio. You must place the radio antenna above the roof cover to receive a radio station signal. To use the CD function, insert the CD disk into the top (into the CD slot) of the radio. -
Page 18: Safety Instructions
another towel on the floor to absorb perspiration as it falls from your body. Be sure not to place any towels over the floor heat emitters. Use a third towel to wipe perspiration from your body from time to time. 5) At the first sign of a cold or flu, increasing your sauna sessions may be beneficial in boosting your immune system and decreasing the reproductive rate of viruses. -
Page 19: Safeguards For Your Sauna
agent . If you find the power cord is too hot or that the electrical equipment may be experiencing technical problems, please contact the manufacturer or its agent immediately to avoid hazardous conditions. 15) Do not use the sauna during an electrical storm to avoid risk of shock. 16) Do not continuously switch the power on and off as it will compromise the life of the electrical components. - Page 20 towards the rear of the sauna. After you have located the red and black wires labeled “TEMP SENSOR”, disconnect them. Connect the spare temperature sensor. For testing purposes, insert the “TEMP SENSOR” (you just connected) down the vent on the roof so that it is now inside the sauna. Then go to the control panel and press the power button.
-
Page 21: Warranty
Warranty 1 Year Limited Warranty: Golden Designs, Inc. warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of one year from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty. - Page 22 PAGE INTENTIONALLY LEFT BLANK...
-
Page 23: Warranty Card
WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1920 S. Proforma Ave. Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
