GoldenDesigns GDI6109 Owner's Manual

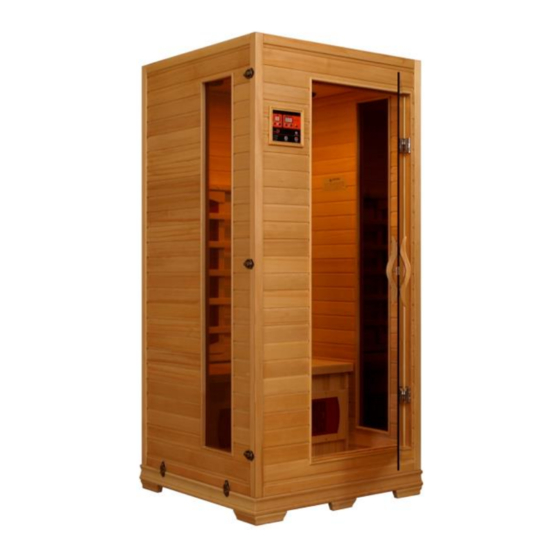

1 – 2 person sauna
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

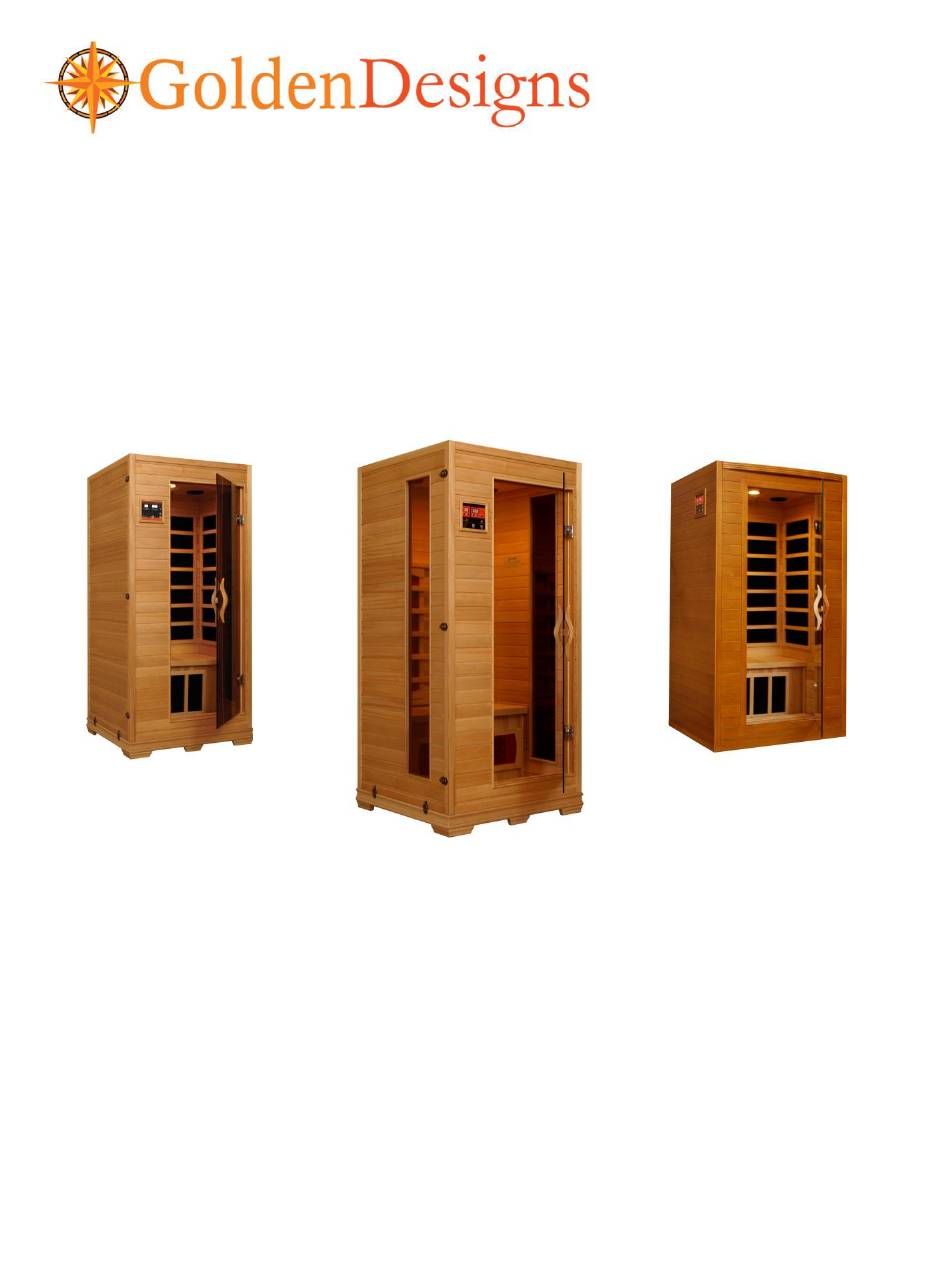

GDI6109 / GDI9108
1 – 2 Person Sauna
OWNER'S MANUAL
FOR CERAMIC AND CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDI6109 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GoldenDesigns GDI6109

Summary of Contents for GoldenDesigns GDI6109

  • Page 1 GDI6109 / GDI9108 1 – 2 Person Sauna OWNER’S MANUAL FOR CERAMIC AND CARBON MODEL SAUNAS FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We...
  • Page 2 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* GDI-6109 GDI-9108 *The above assembly diagrams are for quick reference visual guides only. All sauna models are not shown. Parts and accessories may vary.
  • Page 3 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 4 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
  • Page 5 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increasing blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements.

  • Page 7: Parts Description

    PARTS DESCRIPTION A. FRONT OF SAUNA (see figure 1) B. INSIDE OF SAUNA (see figure 2) Figure 1 Figure 2 1) Door Handle 2) Tempered Glass Door 3) Ventilation Grid 4) Speaker 5) Reading Lamp 6) Control Panel 7) Temperature Sensor 8) Heat Emitter 9) Bench Panel 10) Back Protection Grid (Ceramic Models Only)
  • Page 8 I. Power Supply The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see figure 3) Figure 3 MAIN POWER main power of the sauna room HT1, HT2, HT3, HT4 emitter power output cords LIGHT...
  • Page 9 III. Component Labeling POWER Power Cord HT1, HT2, HT3, HT4 Emitter (heater) power cords LIGHT Reading lamp connector CTRL Control panel connector CD/SIG For CD/temperature sensor/connectors/etc. L/SPEAKER Left speaker connector R/SPEAKER Right speaker connector TEMP SENSOR Temperature sensor MP3 AUX INPUT MP3 /radio connection IV.
  • Page 10 Figure 6 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. Floor Panel When the floor panel faces upward, you will find (2) raised moldings, one along what will be the front and one along what will be the rear of the sauna room. (see figure 7) Figure 7 Understanding The Difference Between The Top And Bottom Of The Wall Panels The (4) panels are in the upright position when the moldings are at the top.

  • Page 11: Assembly Instructions

    Figure 8 Rear Panel The wall panels will have the buckles. The buckles will be used to attached the wall panels and floor panel. (see figure 9) Figure 9 Understanding The Difference Between The Inside And Outside Of The Rear Panel You will find the heat emitters on the inside of the rear panel.
  • Page 12 Wood cabin installation order: Floor Panel Front Panel Right Side Panel Left Side Panel Rear Panel Bench Emitter Panel Bench Roof Panel Roof Cover Please Note: You can start the assembly with the FRONT PANEL or REAR PANEL. The above order is recommended, but not absolutely necessary for proper assembly.
  • Page 13 Figure 11 Installing the FLOOR EMITTER PANEL (Carbon Models Only), BENCH EMITTER PANEL, BENCH, and REAR PANEL GRID (Ceramic Models Only) If your model is not equipped with the FLOOR EMITTER PANEL, then skip to 2. If your model is equipped with the FLOOR EMITTER PANEL, then place it on the floor towards the front of the sauna.
  • Page 14 Figure 14 Installing the ROOF PANEL The side with the power supply box faces upward. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the wires coming from the REAR PANEL when you set the ROOF PANEL down onto the panels. Feed the wires through the holes in the ROOF PANEL.
  • Page 15 G. Connecting the plugs on the ROOF PANEL 1. Connect the plugs according to the respective labels. (see figure 16 – 18) Connect the CTRL plug from the power supply to the CTRL plug from the control panel. Then screw together. Connect the buzzer connection.
  • Page 16 (Models with Bluetooth) H. Installing the TEMPERATURE SENSOR Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward. (see figure Figure 20...
  • Page 17 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged in transit. The manufacturer decides this according to sauna models and packaging. Putting on the ROOF COVER Place the ROOF COVER over the top of the sauna. Be cautious when pulling the power cord through the hole in the roof cover.

  • Page 18: Operating The Sauna

    Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit).
  • Page 19 Reading lamps and/or roof lamps and/or color therapy lamps are operated by pressing the respective buttons located towards the center of the control panel. These lamps are offered on some models and are not available on all models. 8. Chromotherapy/Color Therapy Lighting (optional/not available on all models) can be operated as follows.
  • Page 20 Control Panel (Optional) Plug the sauna into the outlet receptacle. Press the button once. The POWER light will come on, the TIME DISPLAY will show 90 (minutes), the TEMPERATURE DISPLAY will show 66 (degrees Celsius), and the control panel will flash. Press the button and then the up/down arrows to adjust the amount of time you want the sauna to remain on.

  • Page 21: Tips For Using Your Sauna

    Bluetooth can be used on the sauna room. You first will need to pair your device with the sauna room. Open your device’s Settings Menu and then locate and open Bluetooth. You will find iSauna. Now you can pair your device with iSauna. If you are prompted to enter a passcode, try entering 0000 or 1234.

  • Page 22: Safety Instructions

    10) To conserve energy consumption, please unplug your sauna when not in use. 11) After the sauna session is over, do not jump into the shower or bath immediately. Because your body was heated up during the sauna session, it will continue to perspire even after the heat emitters are off. Sit in the sauna with the door open slightly and let your body cool down.

  • Page 23: Safeguards For Your Sauna

    20) Some sauna models are equipped with reading and roof lamps. Because the lamp temperature will become very hot once powered on, do not attempt to touch the lamp to avoid being burned. Do not attempt to touch it for at least 20 minutes after it has been powered off. 21) Do not pour water or any other liquids on the infrared emitters.
  • Page 24 2. Control Panel Malfunctioning Solution: The control panel will turn on, but not off and the displayed numbers flash. The issue may be a connection problem. Go up to the roof and locate the “CTRL” wire harness you connected when the roof was installed onto the sauna room. Disconnect the “CTRL” wire harness, check the pins to make sure they are straight and not bent, firmly reconnect the “CTRL”...

  • Page 25: Warranty

    Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the heating elements and electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty.
  • Page 26 PAGE INTENTIONALLY LEFT BLANK...

  • Page 27: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
