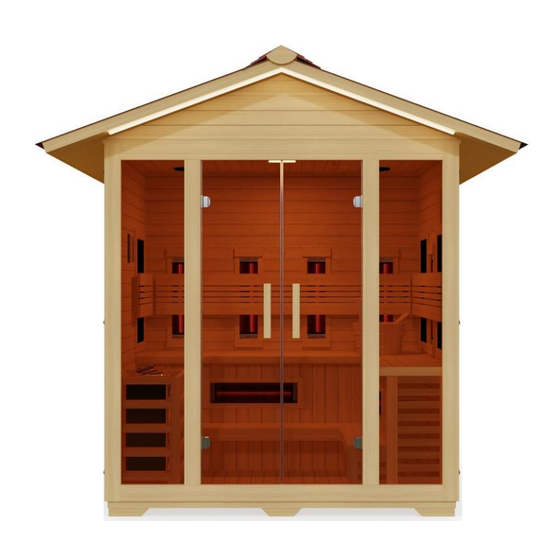

GDI-8123-01 / GDI-8125-01
3 and 5 Person Hybrid Saunas
Owner's Manual
SAUNA IS FOR OUTDOOR USE
GDI-8123-01 - 240V 30AMP Circuit Required For Heater
GDI-8125-01 - 240V 40AMP Circuit Required For Heater
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and future
reference. Follow your local codes and ordinances. The stove heater power
requirements do vary among manufacturer. The stove heater must be installed by a
certified licensed electrician per the manufacturer's manual. The stove heater must
be installed per the electrical code in your area with reference to the breaker and
wire sizes. Models are subject to change.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDI-8123-01 and is the answer not in the manual?

Questions and answers

Related Manuals for GoldenDesigns GDI-8123-01

Summary of Contents for GoldenDesigns GDI-8123-01

  • Page 1 3 and 5 Person Hybrid Saunas Owner’s Manual SAUNA IS FOR OUTDOOR USE GDI-8123-01 - 240V 30AMP Circuit Required For Heater GDI-8125-01 - 240V 40AMP Circuit Required For Heater Carefully and thoroughly read this Owner’s Manual before using/operating the sauna. We recommend keeping this Owner’s Manual for regular review and future reference.
  • Page 2 Thank you for your purchase. As you remove the parts from the boxes, be sure to examine them for damages. If your unit has any damages or missing parts, please contact Golden Designs Inc. See the Warranty section for more information. A Certified Licensed Electrician will be needed to install the electrical wiring.
  • Page 3 FOLLOW ALL INSTRUCTIONS AND BE CAUTIOUS OF SAFETY SYMBOLS. All electrical wiring must be performed by a certified licensed electrician. Although this manual is a universal manual, the information within this manual is applicable to each sauna. High Voltage Symbol: Be cautious as there is the presence of a high voltage current that flows through the equipment! General Caution Symbol: Be cautious as the equipment uses electrical current that can cause serious injury.
  • Page 4 8. When the equipment is not going to be used for an extended period of time, you can disconnect the sauna from the power source or turn OFF the dedicated circuit breaker. 9. Allow 30 seconds between turning the control system “On” and “Off”. By allowing 30 seconds between powering the control system “On”...
  • Page 5 22. Never complete unauthorized repairs on the sauna or the heater. 23. Never use the sauna in combination with alcohol, medication, or drugs. 24. Pregnant women should never use the sauna. Women should also not use the sauna during their menstrual cycle. 25.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Visual Assembly Diagrams Parts Description Dimensional Diagram Screw Identification Wall Panel Descriptions Main Power Switch Schematic Assembly Instructions Sauna Control Panel Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.

  • Page 7: Visual Assembly Diagrams

    *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram GDI-8123-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
  • Page 8 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram GDI-8125-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

  • Page 9: Parts Description

    *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
  • Page 10 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

  • Page 11: Dimensional Diagram

    DIMENSIONAL DIAGRAM GDI-8123-01...
  • Page 12 DIMENSIONAL DIAGRAM GDI-8125-01...

  • Page 13: Screw Identification

    Screw Identification Chart...
  • Page 14 Screw Identification Chart...

  • Page 15: Wall Panel Descriptions

    Wall Panel Descriptions for GDI-8123-01 NOTE: The pictures and diagrams shown above/below are for representational purposes only. Actual model may vary. Parts subject to change.
  • Page 16 Wall Panel Descriptions for GDI-8125-01 NOTE: The pictures and diagrams shown above/below are for representational purposes only. Actual model may vary. Parts subject to change.

  • Page 17: Main Power Switch Schematic

    *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Main Power Switch Schematic *Wiring will be supplied by your certified electrician. *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

  • Page 18: Assembly Instructions

    Assembly Instructions (GDI-8123-01 used in assembly instructions) A. Choose a good location to install the sauna 1. The location must be dry, leveled, and away from any source of water. 2. The heater must be installed by a certified electrician.
  • Page 19 C. Installing the LEFT SIDE WALL PANEL 1. Place the LEFT SIDE WALL PANEL up and onto the FLOOR PANEL and next to the REAR WALL PANEL. Use the buckles to latch the two wall panels together. (see Figure 2) Figure 2 D.
  • Page 20 E. Installing the FRONT WALL PANEL 1. Now it is time to install the FRONT WALL PANEL. Place the FRONT WALL PANEL up and onto the FLOOR PANEL next to the RIGHT SIDE WALL PANEL and LEFT SIDE WALL PANEL. Use the buckles to latch the wall panels together.
  • Page 21 G. Installing the BENCH SUPPORT, BENCH, BACKREST, and STEP 1. Locate the BENCH SUPPORT and slide it down the vertical channels on the side wall panels. Use the provided screws to screw the BENCH SUPPORT down to the vertical channels on the side wall panels. Next, the BENCH can slide horizontally over the BENCH SUPPORT PANEL.
  • Page 22 H. Installing the EXTERIOR ROOF PANEL 1. Locate the two triangular OUTER ROOF PANEL supports. Use the provided screws to screw the triangular OUTER ROOF PANEL supports to the FRONT WALL PANEL and REAR WALL PANEL. (see Figure 7) The triangular OUTER ROOF PANEL for the rear wall has a flat edge Figure 7 The triangular Outer Roof Panel for...
  • Page 23 Figure 8 3. Locate the third section of the OUTER ROOF PANEL, the RIDGE TILE. Use the provided screws to mount the RIDGE TILE to the OUTER ROOF PANELS toward the ends. There are no predrilled holes. (see Figure 9) Figure 9 Lift the roofing tiles at the end to screw down the RIDGE TILE.

  • Page 24: Sauna Control Panel

    SAUNA CONTROL PANEL - GENERAL INTRODUCTION Please note that you can either have the stove heater operating or the Infrared heaters operating, but not both at the same time. You can turn the Main Power Switch knob to the left or right to select either the stove heater or the Infrared heaters to operate.
  • Page 25 3. Control Panels: Sauna Control Panel Light/BT Control Panel CONTROL PANEL OPERATION – Sauna Control Panel 1. First and to operate the Infrared sauna, be sure that the main power switch is turned to “2”. To provide power to the stove heater, the main power switch will need to be turned to “1”.
  • Page 26 2. Once the main power switch is turned to “2”, the power button on the sauna’s control panel will become illuminated (red). You will need to press the sauna’s control panel power button for 5 seconds or more until you hear a beep and the sauna’s control panel turns ON.
  • Page 27 4. To adjust the timer, see the image below. You will press the clock button on either the left side or the right side. The left side adjusts the timer to decrease the time. The right side adjusts the timer to increase the time. 5.
  • Page 28 6. To change the temperature reading between Celsius and Fahrenheit, you can press the C/F button for a few seconds until you hear the control panel beep. Once you set this setting, it will become the default setting. 7. Please note that when you are using the stove heater, you do want to turn OFF the Sauna Control Panel and switch the Main Power Switch to “1”.
  • Page 29 CONTROL PANEL OPERATION – Light/BT Control Panel 1. After the sauna has power, there will be no change on the Light/BT Control Panel until you press the power button. Please note that the Light/BT Control Panel is operable when the Infrared heaters are ON or when the Stove heater is ON. When the power button is pressed, you will see (4) lines displayed.
  • Page 30 4. Press the BT icon button to enable Bluetooth and the screen will display “bLU”. Next, you can search your device to pair with the sauna. Once paired, you will hear a musical prompt. Please note that no password is needed during the Bluetooth pairing.

  • Page 31: Tips For Using Your Sauna

    CAUTION: Exit sauna immediately if you feel dizzy, sleepy, or any discomfort. Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) The ventilation vent is installed on the sauna and should never be obstructed.

  • Page 32: Safety Instructions

    Safety Instructions 1.) Read and follow all instructions carefully before using the sauna. 2.) When installing and using the electrical equipment, safety precautions should always be followed. 3.) To reduce the risk of injury, do not allow children to use the sauna unless they are directed by a medical doctor and are closely supervised at all times by an adult.

  • Page 33: Safeguards For Your Sauna

    touch. 17) Your hands must be dry and free of moisture before plugging and unplugging cords and wiring harnesses. Never operate the sauna with wet hands or wet feet to avoid risk of electric shock. Never touch the metal prongs of the plug. 18) Do not attempt to make any repairs yourself without contacting the manufacturer first.
  • Page 34 Consult the stain manufacturer for any off-gassing concerns. Please note that the cedar wood does start turning grey after approximately 1 – 2 years if the wood is not maintained with a UV protectant. To clean the interior, you can vacuum and sweep down the floors. Use water and a non-toxic cleaner with a damp cloth to wipe down the entire sauna including the benches and walls.

  • Page 35: Warranty

    Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the sauna room against defects in material and workmanship for the life of the product from the original date of purchase. The sauna is for outdoor use. When placed outdoors, a water proof cover or the sauna shingle roof may be installed to cover the sauna room for protection.
  • Page 36 ▪ Moisture or water seepage Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction. Since the wood used in construction may have been kiln dried, a certain amount of expansion and contraction occurs in the wood in a sauna environment.

  • Page 37: Warranty Card

    WARRANTY CARD Congratulations on your purchase from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
