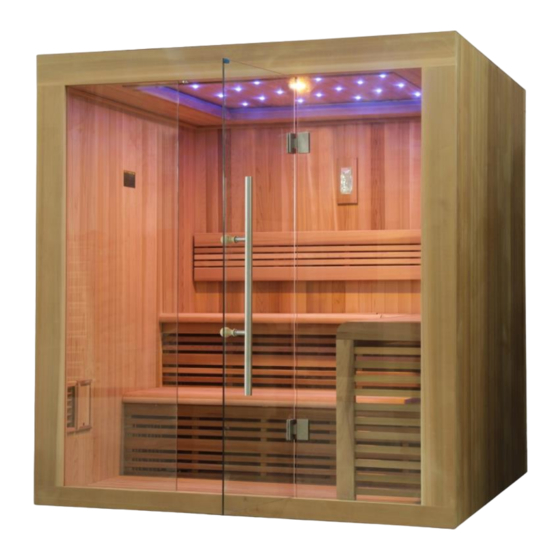

GDI-7289-01 / GDI-7289-01L / GDI-7689-01 / GDI-7689-01L
2-3 and 4-6 Person Saunas
OWNER'S MANUAL
FOR STEAM MODEL SAUNAS
240VAC 40 AMP DEDICATED CIRCUIT PLUS 120VAC 15 AMP CIRCUIT
Please Note: Model numbers with "L" indicate stone on the rear wall panel and
step-down lighted ceiling. Model designs are subject to change. Steam heater
must be installed by a certified electrician.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GoldenDesigns GDI-7289-01
Summary of Contents for GoldenDesigns GDI-7289-01

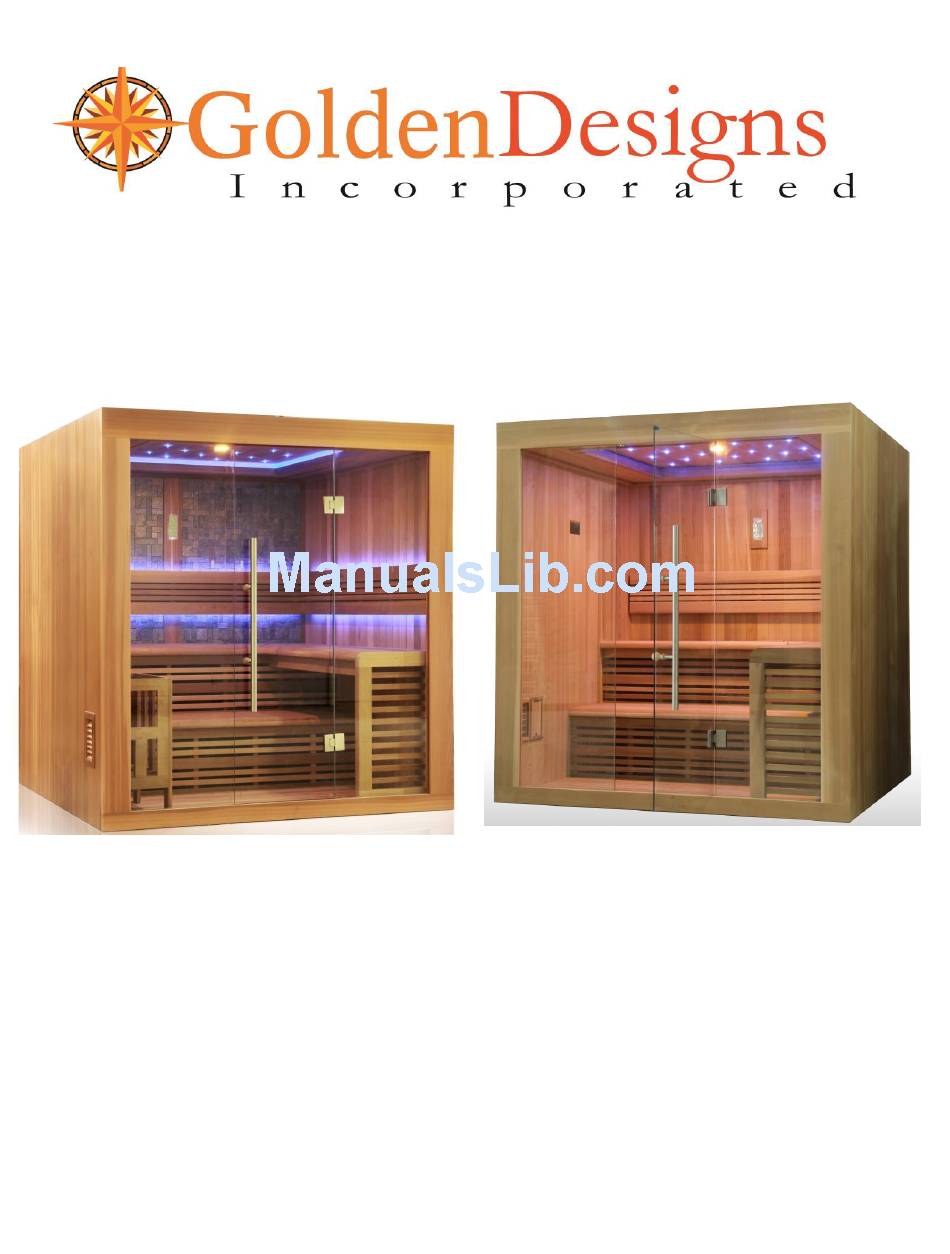

- Page 1 GDI-7289-01 / GDI-7289-01L / GDI-7689-01 / GDI-7689-01L 2-3 and 4-6 Person Saunas OWNER’S MANUAL FOR STEAM MODEL SAUNAS 240VAC 40 AMP DEDICATED CIRCUIT PLUS 120VAC 15 AMP CIRCUIT Please Note: Model numbers with “L” indicate stone on the rear wall panel and step-down lighted ceiling.
- Page 2 Thank you for the purchase of your new Steam Sauna! FOLLOW ALL INSTRUCTIONS AND BE CAUTIOUS OF SAFETY SYMBO High Voltage Symbol: Be cautious as there is the presence of a high voltage current that flows through the equipment! General Caution Symbol: Be cautious as the equipment uses electrical current that can cause serious injury. 1.
- Page 3 CAUTION: Exit sauna immediately if you feel dizzy, sleepy, or any discomfort. READ ALL INSTRUCTIONS THOURGHLY BEFORE ASSEMBLY GDI-7289-01L *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. The wooden box for the steam stove has been removed from models with limited space.
- Page 4 GDI-7289-01L Schematics Wood Screws Machine Screws 3.5x40mm 3.5x40mm 6x50mm 6x60mm *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. The wooden box for the steam stove has been removed from models with limited space. Parts and accessories may vary and not always be included.
- Page 5 CAUTION: Exit sauna immediately if you feel dizzy, sleepy, or any discomfort. READ ALL INSTRUCTIONS THOURGHLY BEFORE ASSEMBLY GDI-7689-01L *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. Parts and accessories may vary.
- Page 6 GDI-7689-01L Schematics Wood Screws Machine Screws 3.5x40mm 3.5x40mm 5x50mm 6x60mm *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. Parts and accessories may vary.
-
Page 7: Table Of Contents
GLASS, REAR WALL PANEL, LEFT SIDE WALL PANEL, RIGHT SIDE WALL PANEL, ROOF, and BENCHES. Other smaller wood items will also be included and can be identified in the schematics on page SCREW IDENTIFICATION AND LOCATION CHART: MODELS: GDI-7289-01 & GDI-7289-01L MODEL: GDI-7689-01 MODEL: GDI-7689-01L NOTE: The pictures and diagrams shown within this owner’s manual are representations of... -
Page 8: Parts Description
2. Parts Description A. The REAR WALL PANEL can be seen in the image below. It will have speakers towards the bottom of the interior side of the wall panel. It will have some cord connection at the top center. (see Figure 1) Figure 1 B. -
Page 9: Assembly Instructions
The location must be dry, leveled, and away from any source of water MAIN POWER cord must be easily accessible Two adults are required for installation on models GDI-7289-01/GDI-7289-01L and three adults for installation on models GDI-7689-01/GDI/7689-01L. Wood cabin installation order: REAR WALL PANEL... - Page 10 6x60mm machine screws to mount the REAR WALL PANEL to the RIGHT SIDE WALL PANEL. (see Figure 4a and Figure 5) 1a. For models GDI-7289-01, GDI-7289-01L and GDI-7689-01, please continue to follow these instructions. Place the REAR WALL PANEL upright. Next, stand the RIGHT SIDE WALL PANEL upright and up against the REAR WALL PANEL.
- Page 11 Installing the LEFT SIDE WALL PANEL to the REAR WALL PANEL Place the LEFT SIDE WALL PANEL up against the REAR WALL PANEL and follow the same instructions used to mount the RIGHT SIDE WALL PANEL to the REAR WALL PANEL. Make sure to use the correct size wood screws when screwing the wall panels together.
-
Page 12: See Figure
D. Installing the FLOOR HEATER and FRONT WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL First, place the FLOOR HEATER on the inside of the sauna room and on your floor (concrete floor is preferred). Three adults will be need to install the front wall panel. Be cautious when installing the FRONT WALL PANEL with the stationary glass panels and glass door. -
Page 13: Figure
Figure 9 below. Also, place FLOOR PANEL in position as well. Use the 3.5x40mm screws to secure the BENCH SUPPORT PANELS into place. (see Figure 10) Figure 9 Area under bench For Model GDI-7689-01 and GDI-7689-01L Figure 10 For Model GDI-7289-01 and GDI-7289-01L... - Page 14 Installing the SECOND LAYER BENCH and FIRST LAYER BENCH Slide into position the narrow wood slats that support the SECOND LAYER BENCH (upper bench for models GDI-7689-01 and GDI-7689-01L). (see Figure 11) Next, slide into position the SECOND LAYER BENCH (upper bench for models GDI-7689-01 and GDI-7689-01L)).
- Page 15 Figure 12a Figure 13...
- Page 16 Figure 13a Installing the BACKREST ON WALL PANELS Now it is time to install the BACKREST ON REAR WALL PANEL. In addition, you will need to connect the wire connection from the REAR WALL PANEL to the wire connection on the BACKREST ON REAR WALL PANEL (only on models GDI-7289-01L and GDI-7689-01L).
-
Page 17: Figure
Figure 15 2. It is time to install the BACKREST ON RIGHT SIDE WALL PANEL. You will need to connect the wire connections from the SIDE WALL PANEL to the wire connection on the BACKREST ON THE SIDE WALL (only on model GDI-7689-01L). After connected, tuck the wires behind the BACKREST. -
Page 18: Figure
Figure 18... - Page 19 H. Installing the FAN SHAPED BENCH, RIGHT SIDE BENCH SUPPORT PANEL, RIGHT SIDE BENCH REINFORCEMENT, and RIGHT SIDE BENCH (only on models GDI-7689-01 and GDI-7689-01L) You are ready to install the FAN SHAPED BENCH, RIGHT SIDE BENCH SUPPORT PANEL, and RIGHT SIDE BENCH REINFORCEMENT.
- Page 20 Figure 20 Figure 21...
- Page 21 The RIGHT SIDE BENCH and FAN SHAPED BENCH are ready to be installed. (see Figure 22, Figure 23, and Figure 24) Figure 22 Figure 23 Figure 24 J. Installing the ROOF PANEL 1. Place the ROOF PANEL (larger section) over the wall panels carefully. (see Figure 25) 2.
- Page 22 Figure 25 Figure 26...
- Page 23 Figure 21 Please Note: Model numbers with “L” indicate stone on the rear wall panel and step-down ceiling. Model designs are subject to change. Steam heater must be installed by a certified electrician.
- Page 24 Assembling the Wooden Box for the Steam Stove (not available on all models) 1. Use the provided 3.5 x 40mm screws to attached the (4) walls and base of the Wooden Box for the Steam Stove. 2. The opening on one of the larger sides is to allow you manage the controls of the Steam Stove.
- Page 25 CONTROL PANEL GENERAL INTRODUCTION 1. Description of Functions Functions Touch Key technology √ FM Radio √ Reading Lamp √ Background Lamp and Star Lights √ Bluetooth Music Play √ 2. Control System Specifications A.) Rated Voltage: AC100V-AC240V B.) Bluetooth Approximate Effective Distance: 33 feet C.) Rated Power: 50Hz/60Hz 3.
-
Page 26: Control Panel Operation
5. Control Panel Display CONTROL PANEL OPERATION 1. “ “: Powers the unit “ON/OFF”. A.) Press the “ “ to turn the Control Panel “ON”. The LED will display “ “, which means the Control System has powered “ON”. In addition, the Reading Lamp should be “ON” as well. If you press the “... - Page 27 4. “ “: Powers on the Radio and operates the Bluetooth ( A.) Press the “ “ to turn “ON” the FM function of the Radio. The LCD display will show the current frequency. When you press the “ “ again, you will turn on the Bluetooth function allowing you to connect your musical device.
-
Page 28: Tips For Using Your Sauna
G.) The volume adjusting range is from -80dB to 0dB. To adjust the volume, press “ “ until “ “ blinks on the Control Panel display. You can in press the “ “ and “ “ to adjust the volume setting. If you hold the “... - Page 29 medical doctor and are closely supervised at all times by an adult. 4.) Do not use the sauna immediately following strenuous exercises. Wait at least 30 minutes to allow the body to cool down completely. 5.) Pregnant or possibly pregnant women should contact their physician prior to using the sauna. Excessive temperature has a high potential for causing fetal damage during pregnancy.
-
Page 30: Safeguards For Your Sauna
21) Do not bump, hit, or break the stove as it may cause an electrical short and pose a safety risk. 22) Do not make any modifications to the sauna, the sauna structure, or the sauna components. 23) Prior to each sauna session, the sauna room is to be inspected for correct operation. If for any reason your sauna room does not seem to be operating properly, discontinue use and contact the manufacturer. -
Page 31: Warranty
Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the sauna room and its attached electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for indoor use or outdoor use when protected from the outdoor weather elements by a structure that includes a water-proof roof. - Page 32 Page Intentionally Left Blank...
-
Page 33: Warranty Card
WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
